RetroSound DinSolutions Liberty Quick Start Manual

Radio face
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

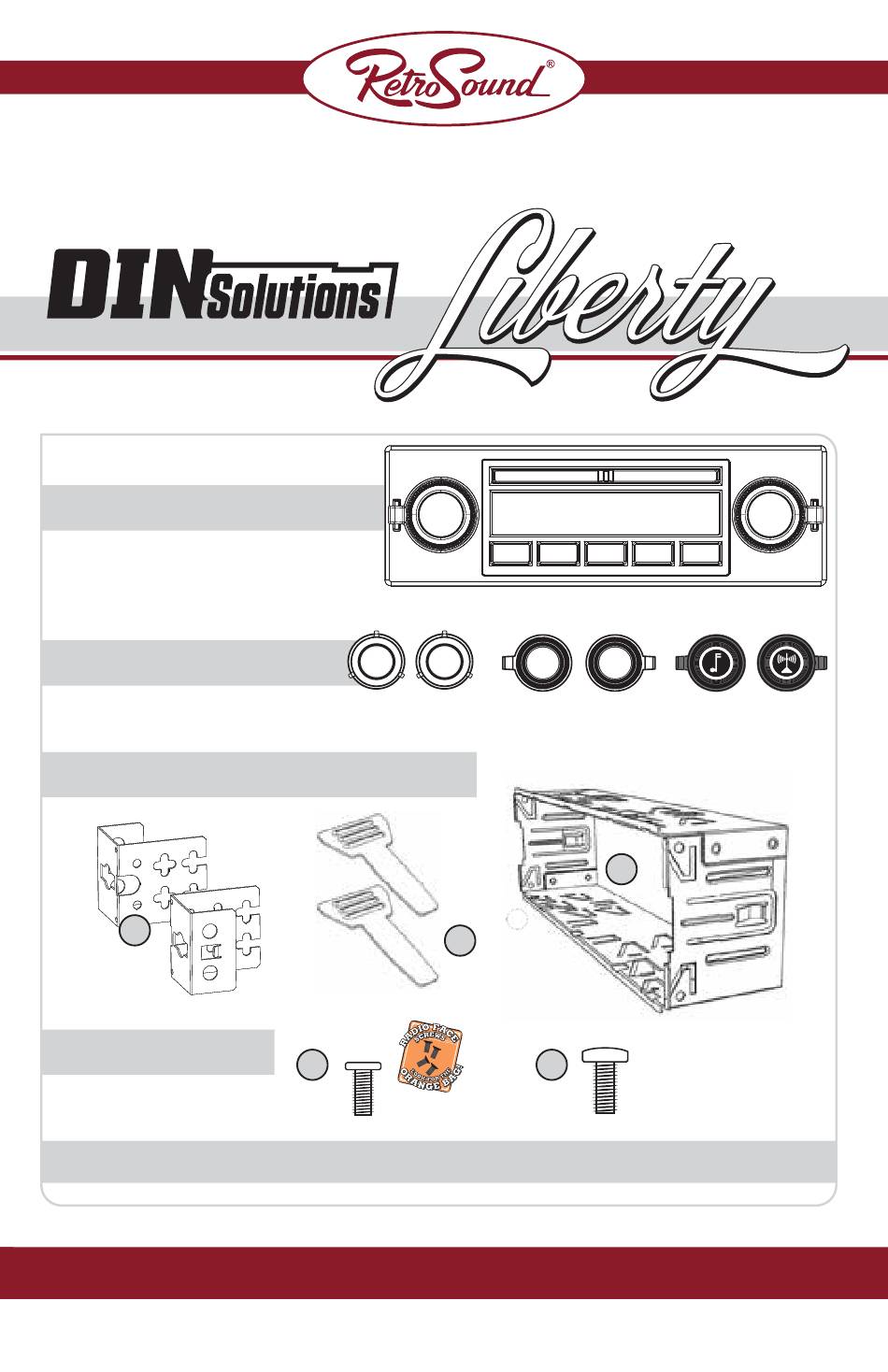

Radio Face Quick Start Guide
What's in the Box
Liberty Radio Face
Decorative Knob Sets
DIN KIT
E
Hardware
RADIO MOTOR IS SHIPPED IN SEPARATE BOX.
Modern Sound For Your Classic
tech@retromanufacturing.com | help.retromanufacturing.com
Ford Style
F
A
x(6)
60's Chevy Style
G
G
G
Included in your
B
Radio Motor box
x (8)
70's Chevy Style

Advertisement

loading
Need help?

Need help?

Do you have a question about the DinSolutions Liberty and is the answer not in the manual?

Questions and answers

Related Manuals for RetroSound DinSolutions Liberty

Summary of Contents for RetroSound DinSolutions Liberty

  • Page 1 Radio Face Quick Start Guide What’s in the Box Liberty Radio Face Decorative Knob Sets 60’s Chevy Style Ford Style 70’s Chevy Style DIN KIT Included in your Hardware Radio Motor box x(6) x (8) RADIO MOTOR IS SHIPPED IN SEPARATE BOX. Modern Sound For Your Classic tech@retromanufacturing.com | help.retromanufacturing.com...
  • Page 2 Plug the ribbon cable with a dual bank Molex connector from the Radio Motor into the Radio Face(1a). Make sure each end of the Radio Face Y-Connector is routed through the openings in the metal housing of the radio face. If your MOTOR INCLUDES A SECOND HARNESS with a single bank Molex connector, you may remove the Radio Face Y-Harness and attach the second harness from the Motor to the Radio Face in it’s place.
  • Page 3 If using the Radio Face Y-Harness Before attaching the DIN Brackets, feed the cable from the Radio Face (3.a) through the left and right DIN Bracket (E) . Using the 8 screws (B) included in the Radio Motor box, install the DIN Brackets (E) to the sides of the Radio Motor.
  • Page 4 Insert the DIN Sleeve (G) into your dash opening. Using a screwdriver, push down the sleeve tabs on all four sides of the DIN Sleeve to secure it into the dash opening. After the main wiring harness is plugged into the back of the radio slide the radio assembly into the DIN Sleeve until the unit clicks into place.
  • Page 5 If adjustments are needed, use the included DIN Keys (F) to remove the assembly from the DIN Sleeve. Once the Radio is mounted correctly, install the backstrap to the rear of the radio. Follow the installation instructions included with your Radio Motor. Radio Face Quick Start Guide...

  • Page 6: Control Layout

    Control Layout 2 Left-Rear Knob Right-Rear Knob 4 Right-Front Knob 3 1 Left-Front Knob 6 Seek Bar 5 Preset Buttons Radio Presets Setting Radio Presets To set a preset, tune to the station you want to set the preset to, and then press and hold the desired Preset Button for two seconds.
  • Page 7 Basic Operation Power On/Off Press the Left-Front Knob to power the unit on. Press and hold the Left-Front Knob to power the unit off. Volume Rotate the Left-Front Knob to change the volume. Changing Source Modes Rotate the Left-Rear Knob clockwise to cycle through the source modes.
  • Page 8 7470 Commercial Way, Henderson, NV 89011 www.retromanufacturing.com © 2 0 2 4 Re t ro M a n u f a c t u r i n g , L LC | 0 1 - 3 1 - 2 5...
