Summary of Contents for Junker JK55X00IKE

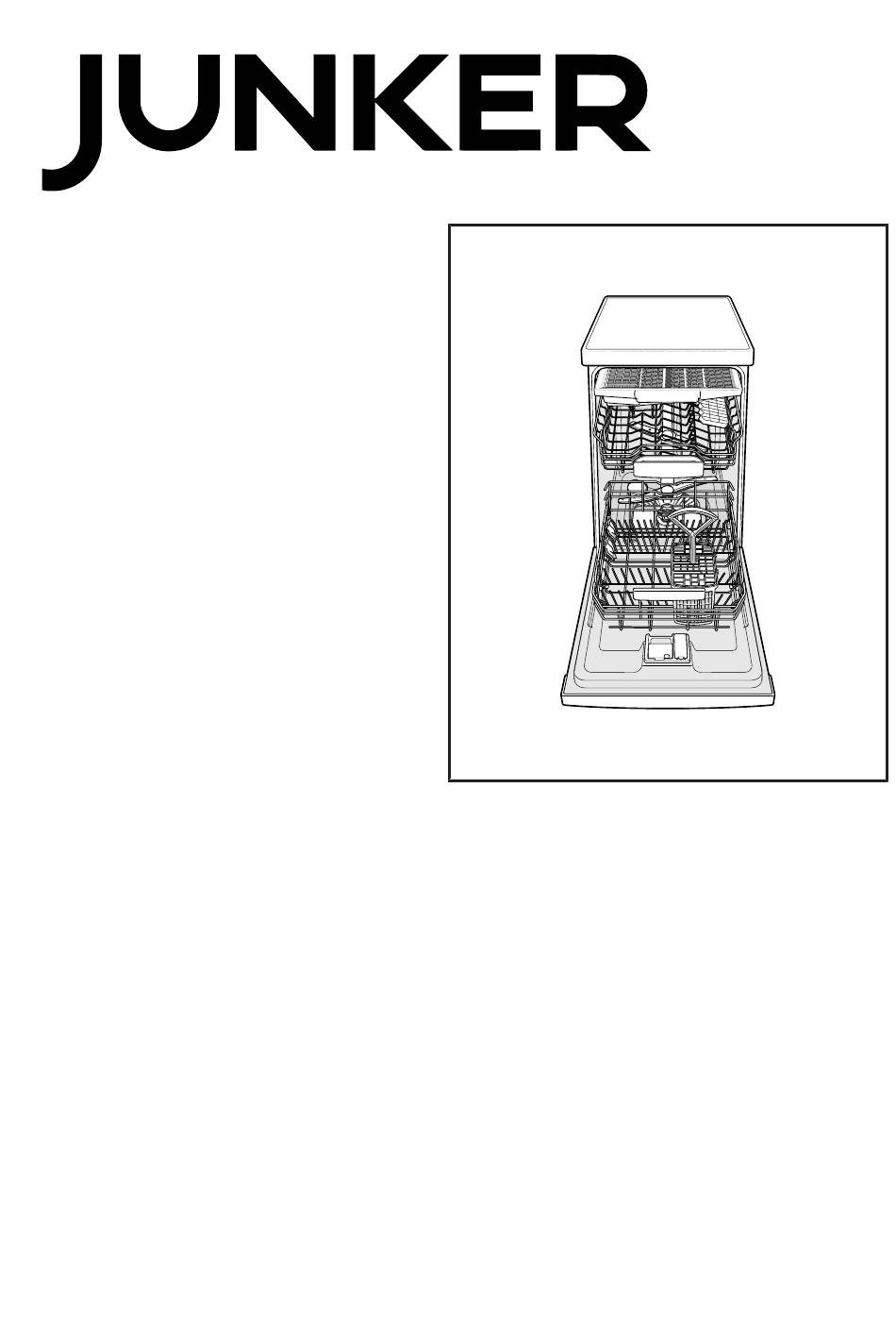

- Page 1 Dishwasher JK55X00IKE Information for Use...
-
Page 2: Table Of Contents
Table of contents 1 Safety ........... 4 8.5 Cutlery basket ...... 22 1.1 General information.... 4 8.6 Basket heights...... 22 1.2 Intended use...... 4 9 Before using for the first time .. 23 1.3 Restriction on user group.. 4 9.1 Performing the initial config- 1.4 Safe installation ...... - Page 3 14.5 Starting the programme .. 32 14.6 Interrupting programme .. 33 14.7 Terminate programme... 33 14.8 Switching off appliance .. 33 15 Basic settings...... 34 15.1 Overview of the basic set- tings........ 34 16 Cleaning and servicing ... 35 16.1 Cleaning the tub .... 35 16.2 Cleaning products ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- ▶...
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. Check that there is a distance of at least 5 cm between the ap- ▶... - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning ▶ agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always ▶... - Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then cut ▶ through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
-
Page 10: Preventing Material Damage
en Preventing material damage Modified or damaged water hoses Preventing material damage 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing material damage 2.1 Safe installation Only use the water hoses supplied ▶... -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on 3.3 AquaSensor ▶ the appliance, do not use sponges The AquaSensor is an optical meas- with a rough surface or abrasive uring device (light barrier) which cleaning agents. measures the turbidity of the washing To prevent corrosion, do not use ▶... -
Page 12: Installing And Connecting The Appliance
en Installation and connection Operating instructions ¡ 4.3 Drainage connection Installation Instructions ¡ Connect your appliance to drainage Further information documents ¡ connection so dirty water is dis- Installation material ¡ charged via the wash cycle. Steam protection ¡ Salt filling aid funnel ¡... -
Page 13: Electrical Connection
Installation and connection en 4.5 Electrical connection Connecting the appliance to the electricity supply Notes Follow the Safety instructions ¡ → Page 4. Please note that the water safety ¡ system is only functional if there is a power supply. Insert the non-heating appliance plug of the power cable into the appliance. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 54. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 27 Bottom basket Bottom basket → Page 22 Filter system Filter system → Page 37 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 23 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. ON/OFF button and reset Switching on the appliance button → Page 32 Switching off the appliance... - Page 17 Familiarising yourself with your appliance en Water supply display Display for water supply Door handle Open the appliance door. Special salt refill indicator Water softening system → "Adding special salt", Page 24 Depending on the appliance specifications Symbols on the display Symbol Description The display shows the following sym- If the water inflow or bols depending on the model.
- Page 18 en Programmes Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if Programmes grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 19: Information For Test Institutes
Programmes en Programme Programme se- quence Tableware: Cold rinsing: All types of dishes Pre-Rinse ¡ ¡ PreRinse Level of soiling: Cold rinsing, intermediate ¡ cleaning Use only if appliance is unloaded. Machine Care 70 °C Machine Care Note: The relatively long running time in the Eco 50 °... -
Page 20: Additional Functions
en Additional functions Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Additional functions Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 21: Knife Shelf
Features en Adjusting top basket with pairs of 8.2 Knife shelf rollers Use the shelf for knives and long To wash large items of tableware in items of cutlery. the baskets, adjust the shelf position of the top basket. Pull out the top basket. Remove the basket. -
Page 22: Bottom Basket
en Features 8.4 Bottom basket Arrange pans and plates in the bot- tom basket. 8.5 Cutlery basket Arrange cutlery in the cutlery basket, always without sorting it and with the Cutlery basket sharp points downwards. Large plates up to a diameter of 31 cm can be arranged in the bottom basket as shown. -
Page 23: Before Using For The First Time
Before using for the first time en Start the Programme with the Before using for the first time 9 Before using for the highest cleaning temperature without tableware. first time To remove any marks from water Before using for the first time or other residues, we recommend 9.1 Performing the initial con- you operate the appliance without... -
Page 24: Setting The Water Softening System
en Water softening system To save the settings, press for 3 seconds. 10.3 Special salt You can use special salt to soften water. Adding special salt Note: Set the water hardness determ- ined on your appliance. If the special salt refill indicator lights → "Setting the water softening sys- up, add special salt to the dispenser tem", Page 24... -
Page 25: Switching Off The Water Softening System
Water softening system en Note: Only use special salt for The water hardness is 0 - 8 °E. ¡ dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the appliance settings, penser. -
Page 26: Rinse Aid System
en Rinse aid system Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 9 - 20 °E. -
Page 27: Switching The Rinse Aid System Off
Detergent en Press repeatedly until the right To save the settings, press amount of rinse aid has been set. for 3 seconds. The rinse aid system is switched off and the rinse aid refill indicator is deactivated. Detergent 12 Detergent Detergent 0, 1, 2 or 3 LEDs will light up ac- 12.1 Suitable detergents cordingly. -
Page 28: Unsuitable Detergents
en Detergent ing and drying results we recom- Liquid detergent mend using special salt and rinse aid Liquid detergent works faster and is from a water hardness of 17 °E. If recommended for shorter pro- you are using combined detergent, grammes without PreRinse. the washing programme is adjusted Sometimes liquid detergent may leak automatically to ensure the best pos-... -
Page 29: Adding Detergent
Tableware en To prevent sticking, only touch de- Close the lid of the detergent dis- ¡ tergents in a water-soluble pouch penser. with dry hands and only ever place them in a dry detergent dispenser. Even if the rinse aid and special ¡... -
Page 30: Tableware
en Tableware 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. - Page 31 Tableware en allowing steam to escape and water To save resources, do not pre- to leak out around the door. This rinse tableware under running wa- could damage your kitchen units. ter. Observe the following when arran- ging tableware: – Put heavily soiled tableware in the bottom basket, e.g.
-
Page 32: Removing Tableware
en Basic operation 13.3 Removing tableware 14.2 Setting a programme To adjust the washing programme to WARNING the soiling level of the tableware, se- Risk of injury! lect a suitable programme. Hot tableware can cause burns to the skin. When hot, tableware is sensitive Press the programme button re- ▶... -
Page 33: Interrupting Programme
Basic operation en While the programme is running, a Close the appliance door. spot of light is projected onto the floor below the appliance door. 14.7 Terminate programme This light will not be visible if the To end a programme early or to appliance is installed at eye level switch from a programme that has with the cabinet front fitted flush. -
Page 34: Basic Settings
en Basic settings Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Water hardness Scale with 4 levels Set the water hardness. -
Page 35: Cleaning And Servicing
Cleaning and servicing en Press repeatedly until the LEDs Press repeatedly until show the right value. flash. Press to set the appliance back to the factory settings. The appliance is reset. Cleaning and servicing 16 Cleaning and servi- cing If LED A is not lit up, Extra Dry is switched off. -
Page 36: Tips On Appliance Care
en Cleaning and servicing 16.3 Tips on appliance care Action Benefit using a damp Follow the tips on appliance care to cloth and wash- make sure your appliance functions ing-up liquid. properly at all times. If the appliance This will prevent Action Benefit is not going to unpleasant... -
Page 37: Filter System
Cleaning and servicing en Make sure that there are no alu- ¡ 16.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. If you have not run Machine Care ¡... -
Page 38: Cleaning Spray Arms
en Cleaning and servicing Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 39 Cleaning and servicing en Pull up the lower spray arm to re- move. Check the outlet nozzles on the spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. The spray arm clicks into position. Insert the upper spray arms and screw firmly in place.
-
Page 40: Troubleshooting
en Troubleshooting Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 41 Troubleshooting en Fault Cause and troubleshooting Display for water sup- Restore the power supply. ply lights up Switch the appliance on. Filters are soiled or blocked. Clean the filters. ▶ → "Cleaning filters", Page 37 Not an appliance fault. Siphon connection is still closed or the wastewater hose is kinked or blocked.
- Page 42 en Troubleshooting Fault Cause and troubleshooting Display "Check water A technical fault is present. supply" flashes Press Unplug the appliance or switch off the fuse. Wait at least 2 minutes. Insert the mains plug of the appliance in a socket or switch on the fuse. Switch the appliance on.
- Page 43 Troubleshooting en Fault Cause and troubleshooting Tableware is not dry. Use rinse aid to improve drying performance. Use a different combined detergent with a better drying performance. Extra Dry not activated to improve drying perform- ance. Activate Extra Dry. ▶ Tableware removed too early or drying process not yet ended.
- Page 44 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Clean the filters. ▶ tableware. → "Cleaning filters", Page 37 Filters are inserted incorrectly and/or not engaged. Insert the filters properly. → "Filter system", Page 37 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶...
- Page 45 Troubleshooting en Fault Cause and troubleshooting Detergent residue in Tabs are used in the quick or short programme. Dis- the appliance solving time of the tab is not attained. Select a more intensive Programme → Page 18 or ▶ use Powder detergent → Page 27. Washing effect and dissolving performance are re- duced after a prolonged storage time or detergent is very lumpy.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Stubborn white coat- Set the Water softening system to the water hard- ▶ ings are present on ness and use separate detergents (proprietary de- tableware, inside the tergent, special salt, rinse aid). appliance or the door. Too little detergent is being used.
- Page 47 Troubleshooting en Fault Cause and troubleshooting Coloured deposits The formation of films is due to ingredients of food (yellow, orange, remnants and tap water (limescale) "soaplike". brown) that are easy Check the setting of the water softening system. to remove are present → "Setting the water softening system", Page 24 inside the appliance Add special salt.
- Page 48 en Troubleshooting Fault Cause and troubleshooting Removable streaks Only remove large remnants of food and do not ▶ are present on prerinse tableware. glasses, glassware with a metallic appear- ance and cutlery. Irreversible clouding Glasses are not dishwasher-proof, only suitable for of glassware.
- Page 49 Troubleshooting en Fault Cause and troubleshooting Excessive formation of Detergent or appliance care product used causes ex- foam occurs. cessive foaming. Change the brand of detergent. ▶ Special salt refill indic- Insufficient special salt. ator lights up. Add Special salt → Page 24. ▶...
- Page 50 en Troubleshooting Fault Cause and troubleshooting Appliance stops dur- Appliance door is not closed properly. ing the programme or Close the appliance door. ▶ cuts out. Power and/or water supply has been interrupted. Check the power supply. Check the water supply. Top basket is pressing against inner door and pre- venting appliance door from being closed securely.
- Page 51 Troubleshooting en Fault Cause and troubleshooting Appliance door can- When closed, the appliance door, its decor or at- not be closed. tached parts should not knock against adjacent cabinets or the worktop. Lid on the detergent Detergent dispenser or lid are blocked by sticky deter- dispenser cannot be gent residue.
-
Page 52: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 17.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 53: Protect Appliance From Frost
Customer Service en 18.2 Protect appliance from 18.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 54: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note: Under the terms of the manu- facturer's warranty the use of Cus- tomer Service is free of charge. -
Page 55: Technical Specifications
Technical specifications en Technical specifications 20 Technical specifications Technical specifications Weight Max.: 45 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) ¡ Inlet rate Min. 10 l/min Water temperature Cold water. -
Page 56: Declaration Of Conformity
A detailed Declaration of Conformity BSH Hausgeräte GmbH hereby de- Declaration of Conformity can be found online at www.junker- clares that the appliance conforms to home.com/uk among the additional the essential requirements and other documents on the product page for relevant provisions of Directive your appliance. - Page 60 Valid within Great Britain: Imported to Great Britain by Nobilia GB Ltd. Kingsway Business Park OL16 4UG Rochdale Great Britain BSH Hausgeräte GmbH 442 E5 Carl-Wery-Straße 34 81739 München, GERMANY *9001805785* 9001805785 040227...
