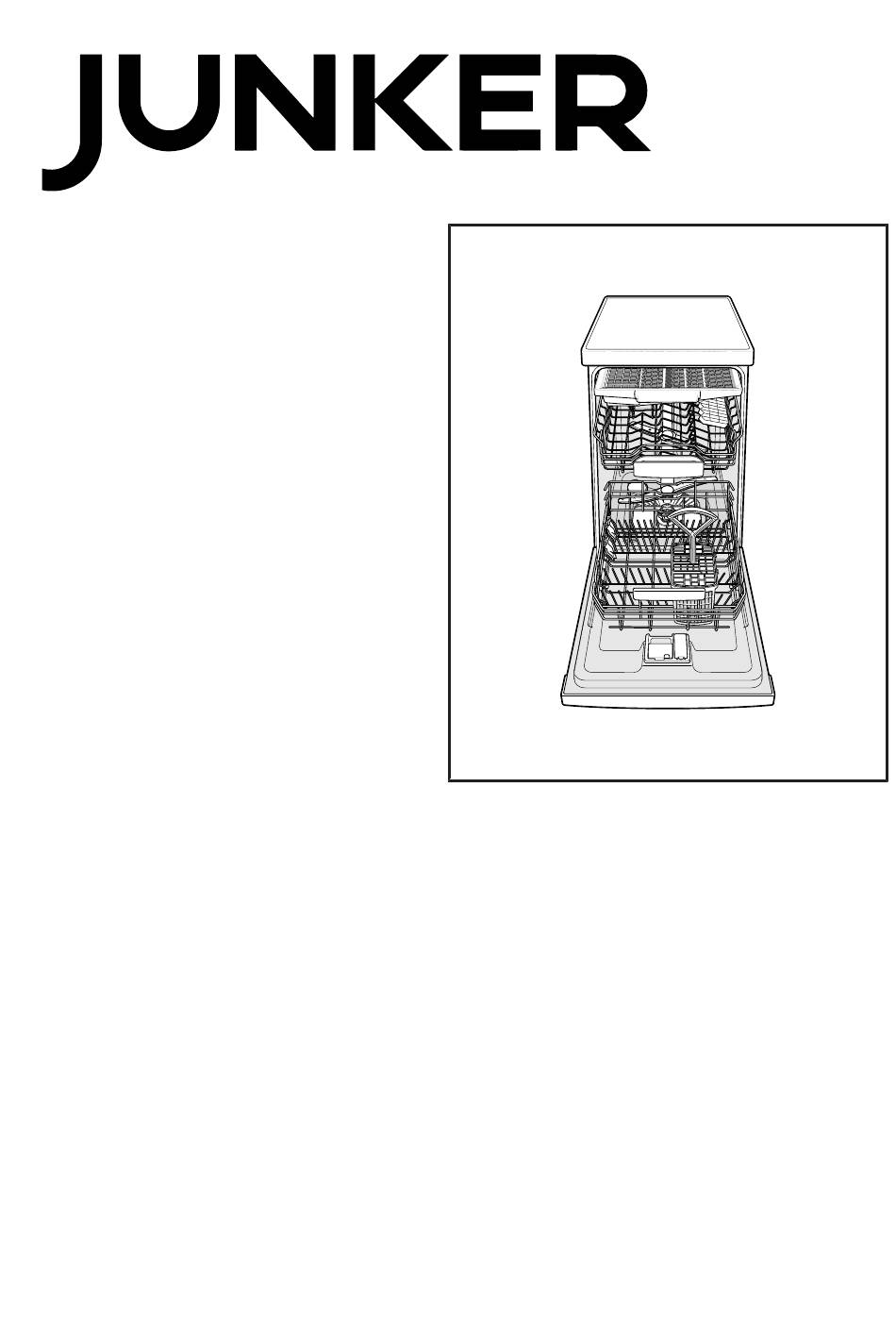

- Page 1 Dishwasher JK55X00HKE Information for Use...
- Page 2 Table of contents 1 Safety ........... 4 8.6 Cutlery basket ...... 23 1.1 General information.... 4 8.7 Basket heights...... 23 1.2 Intended use...... 4 9 Before using for the first time .. 23 1.3 Restriction on user group.. 4 9.1 Performing the initial config- 1.4 Safe installation ......
- Page 3 14.7 Terminate programme... 33 14.8 Switching off appliance .. 33 15 Basic settings...... 34 15.1 Overview of the basic set- tings........ 34 15.2 Changing basic settings.. 35 16 Cleaning and servicing ... 35 16.1 Cleaning the tub .... 35 16.2 Cleaning products .... 36 16.3 Tips on appliance care..
- Page 4 en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡...
- Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- ▶...
- Page 6 en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. Check that there is a distance of at least 5 cm between the ap- ▶...
- Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning ▶ agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
- Page 8 en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always ▶...
- Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then cut ▶ through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
- Page 10 en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses.
- Page 11 Environmental protection and saving energy en So as not to scratch the finish on ter is used in the next wash cycle, so ▶ the appliance, do not use sponges reducing water consumption by 3-6 with a rough surface or abrasive litres.
- Page 12 en Installation and connection When doing so, check that the 4.2 Installing and connecting wastewater hose is not kinked, the appliance crushed or twisted. You can position your built-under or Also check that there is no cover integrable appliance in a fitted kit- in the drainage system preventing chen between wooden and plastic the wastewater from being dis-...
- Page 13 Installation and connection en Insert the mains plug of the appli- ance's power cable in a socket nearby. The connection data of the appli- ance can be found on the rating plate. Check the mains plug is inserted properly.
- Page 14 en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 55. The data you need for Customer Service → Page 54.
- Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 27 Bottom basket Bottom basket → Page 22 Filter system Filter system → Page 37 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 24 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
- Page 16 en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. ON/OFF button and reset Switching on the appliance button → Page 32 Switching off the appliance...
- Page 17 Familiarising yourself with your appliance en button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 35 Timer programming Setting timer programming → Page 33 Door handle Open the appliance door. Display The display shows information about the remaining running time or the ba- sic settings.
- Page 18 en Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
- Page 19 Programmes en Programme Programme se- quence Tableware: Cold rinsing: All types of dishes Pre-Rinse ¡ ¡ PreRinse Level of soiling: Cold rinsing, intermediate ¡ cleaning Use only if appliance is unloaded. Machine Care 70 °C Machine Care Note: The relatively long running time in the Eco 50 °...
- Page 20 en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme.
- Page 21 Features en Adjusting top basket with pairs of 8.2 Knife shelf rollers Use the shelf for knives and long To wash large items of tableware in items of cutlery. the baskets, adjust the shelf position of the top basket. Pull out the top basket. Remove the basket.
- Page 22 en Features 8.4 Bottom basket 8.5 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Cutlery basket You can fold the prongs down to po- sition pans, bowls and glasses Large plates up to a diameter of better.
- Page 23 first time en 8.6 Cutlery basket Arrange cutlery in the cutlery basket, always without sorting it and with the sharp points downwards. 8.7 Basket heights Set the baskets at the right height. Appliance height 81.5 cm with cutlery basket Level Top basket Bottom basket 1 max.
- Page 24 en Water softening system To ensure good dishwashing results, 10 Water softening sys- you can treat the water with special salt and the water softening system. To avoid damage to the appliance, water with a hardness above 9 °E Hard water leaves limescale on the must be softened.
- Page 25 Water softening system en To save the settings, press Note: Only use special salt for for 3 seconds. dishwashers. Do not use salt tablets. Do not use table salt. 10.3 Special salt Add the special salt to the dis- You can use special salt to soften penser.
- Page 26 en Rinse aid system The water hardness is 0 - 8 °E. ¡ Additional power consump- 0.05 You do not need to use special tion in kWh salt. The consumption values specified Press . are laboratory measurements determ- To open the basic settings, press ined in accordance with the currently for 3 seconds.
- Page 27 Detergent en Add rinse aid up to the max mark. To save the settings, press for 3 seconds. 11.3 Switching the rinse aid system off If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid compon- ent, you can switch the rinse aid sys- tem off.
- Page 28 en Detergent starch and remove protein. Oxygen- With powder and liquid detergent the based bleaching agents are generally dosage can be individually adjusted used to remove coloured marks, e.g. to the level of soiling of the table- tea or ketchup. ware. For better washing and drying results Note: Follow the manufacturer's in- and to avoid damage to the appli-...
- Page 29 Detergent en Add the detergent to the dry deter- 12.3 Information on deter- gent dispenser. gents Follow the instructions on detergents 50 ml in everyday use. 25 ml Detergents marked as "organic" or ¡ 15 ml "ecological" (environmentally friendly) generally contain lower levels of active agents or com- pletely dispense with certain sub- stances.
- Page 30 en Tableware Close the lid of the detergent dis- 13.1 Damage to glass and penser. tableware Only put glasses and china in the dishwasher if it is marked as dish- washer-safe by the manufacturer. Avoid damage to glass and table- ware. Cause Recommenda- tion The following...
- Page 31 Tableware en For better washing and drying res- ¡ Cause Recommenda- ults, position items with curves or tion recesses at an angle so water can Highly caustic al- If you are using run off. kaline or highly highly caustic al- acidic cleaning kaline or highly solutions, in par- acidic cleaning...
- Page 32 en operation The Eco 50° programme is espe- cially environmentally friendly and ideal for normally soiled tableware. It is the most efficient programme for the combination of energy/wa- ter consumption for this type of tableware and evidences conform- ity with the EU Ecodesign Direct- ive.
- Page 33 operation en will help prevent excess pressure 14.4 Setting timer program- building up in the appliance and stop ming the appliance door bursting open. You can delay the start of the pro- Open the appliance door carefully. gramme by up to 24 hours. Press ...
- Page 34 en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness.
- Page 35 Cleaning and servicing en Basic setting Display text Selection Description InfoLight I00 - I01 Switch InfoLight on or off. While the programme is run- ning, a spot of light is pro- jected onto the floor below the appliance door. This light will not be visible if the appli- ance is installed at eye level with the cabinet front fitted...
- Page 36 en Cleaning and servicing Select the programme with the 16.3 Tips on appliance care highest temperature. Follow the tips on appliance care to Start the programme without table- make sure your appliance functions ware. → Page 33 properly at all times. 16.2 Cleaning products Action Benefit Wipe the door This ensures the...
- Page 37 Cleaning and servicing en not have a reminder function, we re- Once the programme has ended, commend performing Machine Care the indicator for Machine Care every 2 months. goes out. Running Machine Care 16.5 Filter system Notes The filter system removes coarse Run the Machine Care programme ¡...
- Page 38 en Cleaning and servicing Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ...
- Page 39 Cleaning and servicing en Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. The spray arm clicks into position. Insert the upper spray arms and screw firmly in place.
- Page 40 en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶...
- Page 41 Troubleshooting en Fault Cause and troubleshooting E:32-00 will light up Unscrew the water connection. alternately or indicator Remove the filter from the supply hose for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks.
- Page 42 en Troubleshooting Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 43 Troubleshooting en Fault Cause and troubleshooting A different error code A technical fault is present. appears in the display Press window. Unplug the appliance or switch off the fuse. Wait at least 2 minutes. E:01-00 to E:90-10 Insert the mains plug of the appliance in a socket or switch on the fuse.
- Page 44 en Troubleshooting Fault Cause and troubleshooting Tableware is not dry. Activate Extra Dry. ▶ Tableware removed too early or drying process not yet ended. Wait until the programme ends. Only remove tableware 30 minutes after the pro- gramme has ended. Rinse aid used has a limited drying performance. Use a name-brand rinse aid.
- Page 45 Troubleshooting en Fault Cause and troubleshooting Remnants of food on tableware. Filters are inserted incorrectly and/or not engaged. Insert the filters properly. → "Filter system", Page 37 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 18 Tableware has been precleaned too intensely.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Detergent residue in Select a more intensive Programme → Page 18 or ▶ the appliance use Powder detergent → Page 27. Washing effect and dissolving performance are re- duced after a prolonged storage time or detergent is very lumpy. Change your detergent.
- Page 47 Troubleshooting en Fault Cause and troubleshooting Stubborn white coat- Too little detergent is being used. ings are present on Increase the amount of detergent used or change ▶ tableware, inside the Detergent → Page 27. appliance or the door. Washing programme selected too weak. Select a more intensive washing programme.
- Page 48 en Troubleshooting Fault Cause and troubleshooting Coloured deposits The formation of films is due to ingredients of food (yellow, orange, remnants and tap water (limescale) "soaplike". brown) that are easy Check the setting of the water softening system. to remove are present → "Setting the water softening system", Page 24 inside the appliance Add special salt.
- Page 49 Troubleshooting en Fault Cause and troubleshooting Removable streaks Only remove large remnants of food and do not ▶ are present on prerinse tableware. glasses, glassware with a metallic appear- ance and cutlery. Irreversible clouding Glasses are not dishwasher-proof, only suitable for of glassware.
- Page 50 en Troubleshooting Fault Cause and troubleshooting Excessive formation of Detergent or appliance care product used causes ex- foam occurs. cessive foaming. Change the brand of detergent. ▶ Special salt refill indic- Insufficient special salt. ator lights up. Add Special salt → Page 25. ▶...
- Page 51 Troubleshooting en Fault Cause and troubleshooting Appliance does not Check whether the mains cable is properly inserted start. in the socket and on the rear of the appliance. Appliance door is not closed properly. Close the appliance door. ▶ Programme starts You did not wait until programme ended.
- Page 52 en Troubleshooting Fault Cause and troubleshooting Appliance door can- When closed, the appliance door, its decor or at- not be closed. tached parts should not knock against adjacent cabinets or the worktop. Lid on the detergent Detergent dispenser or lid are blocked by sticky deter- dispenser cannot be gent residue.
- Page 53 Transportation, storage and disposal en Insert the pump cover and press 17.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned.
- Page 54 en Customer Service 18.2 Protect appliance from 18.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely.
- Page 55 Customer Service en Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note: Under the terms of the manu- facturer's warranty the use of Cus- tomer Service is free of charge.
- Page 56 en Technical specifications 20 Technical specifications Weight Max.: 45 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) ¡ Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 9 place settings You can find more information about...
- Page 57 A detailed Declaration of Conformity BSH Hausgeräte GmbH hereby de- can be found online at www.junker- clares that the appliance conforms to home.com/de/en/ among the addi- the essential requirements and other tional documents on the product relevant provisions of Directive page for your appliance.
- Page 60 Valid within Great Britain: Imported to Great Britain by Nobilia GB Ltd. Kingsway Business Park OL16 4UG Rochdale Great Britain BSH Hausgeräte GmbH 442 V5 Carl-Wery-Straße 34 81739 München, GERMANY *9001805577* 9001805577 030113...
