Summary of Contents for Junker JS55X01ITE

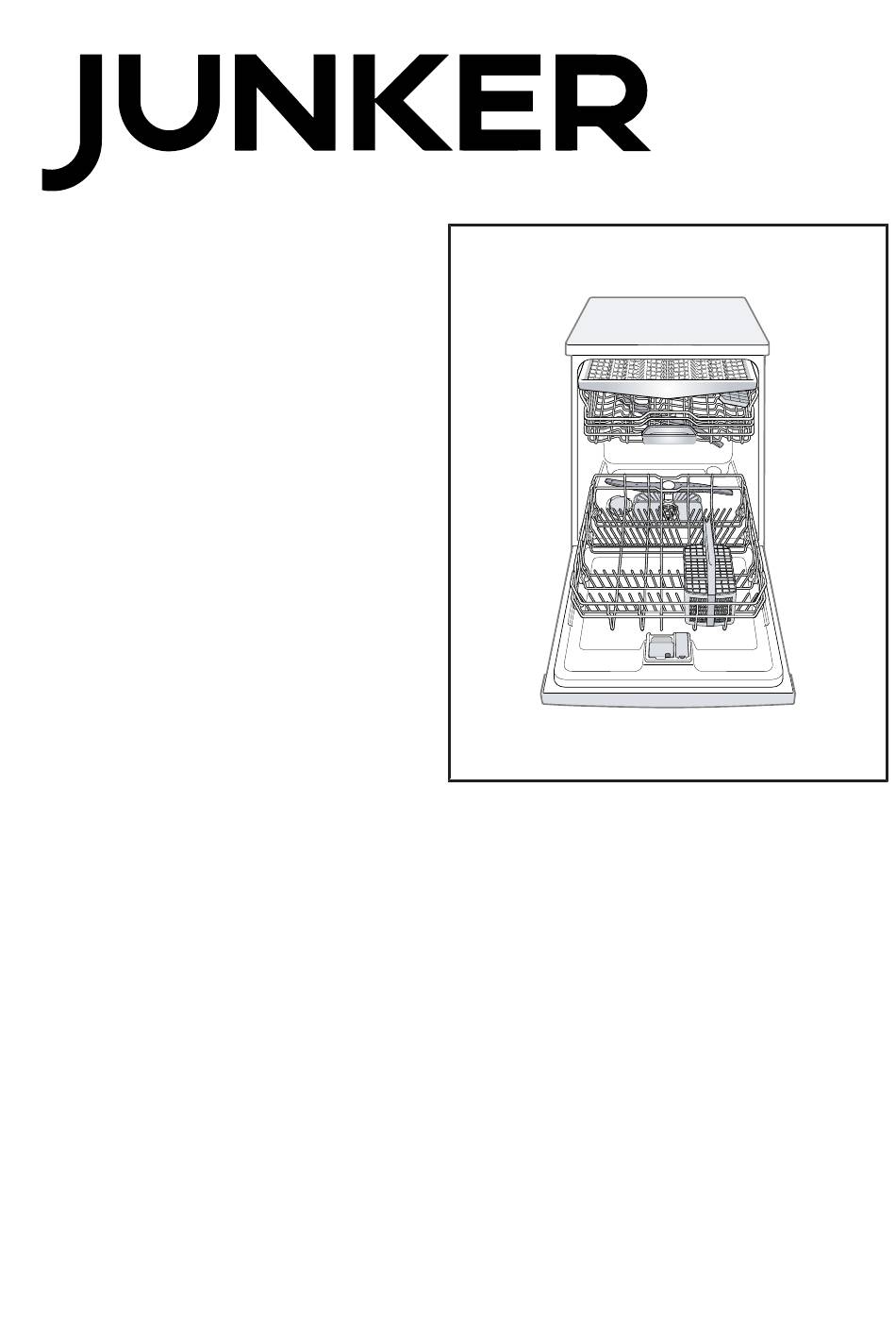

- Page 1 Dishwasher JS55X01ITE Information for Use...
- Page 2 Table of contents 1 Safety ........... 4 9 Before using for the first time .. 21 1.1 General information.... 4 9.1 Performing the initial config- uration........ 21 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Water softening system.. 22 1.4 Safe installation ...... 4 10.1 Overview of water hardness 1.5 Safe use ........
- Page 3 14.7 Terminate programme... 32 14.8 Switching off appliance .. 32 15 Basic settings...... 33 15.1 Overview of the basic set- tings........ 33 16 Cleaning and servicing ... 34 16.1 Cleaning the tub .... 34 16.2 Cleaning products .... 34 16.3 Tips on appliance care.. 35 16.4 Machine Care ....
- Page 4 en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡...
- Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- ▶...
- Page 6 en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. Check that there is a distance of at least 5 cm between the ap- ▶...
- Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning ▶ agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
- Page 8 en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always ▶...
- Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then cut ▶ through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
- Page 10 en Preventing material damage Modified or damaged water hoses Preventing material damage 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing material damage 2.1 Safe installation Only use the water hoses supplied ▶...
- Page 11 Environmental protection and saving energy en So as not to scratch the finish on 3.3 AquaSensor ▶ the appliance, do not use sponges The AquaSensor is an optical meas- with a rough surface or abrasive uring device (light barrier) which cleaning agents. measures the turbidity of the washing To prevent corrosion, do not use ▶...
- Page 12 en Installation and connection Operating instructions ¡ 4.3 Drainage connection Installation Instructions ¡ Connect your appliance to drainage Further information documents ¡ connection so dirty water is dis- Installation material ¡ charged via the wash cycle. Steam protection ¡ Mains cable ¡ Installing the drainage connection Quick reference guide ¡...
- Page 13 Installation and connection en 4.5 Electrical connection Connecting the appliance to the electricity supply Notes Follow the Safety instructions ¡ → Page 4. Please note that the water safety ¡ system is only functional if there is a power supply. Insert the non-heating appliance plug of the power cable into the appliance.
- Page 14 en Familiarising yourself with your appliance Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 53.
- Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 26 Bottom basket Bottom basket → Page 21 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 22 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
- Page 16 en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. ON/OFF button and reset Switching on the appliance button → Page 31 Switching off the appliance...
- Page 17 Familiarising yourself with your appliance en Water supply display Display for water supply Door handle Open the appliance door. Special salt refill indicator Water softening system → "Adding special salt", Page 23 Depending on the appliance specifications Symbols on the display Symbol Description The display shows the following sym- If the water inflow or bols depending on the model.
- Page 18 en Programmes Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if Programmes grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
- Page 19 Programmes en Programme Programme se- quence Tableware: Cold rinsing: All types of dishes Pre-Rinse ¡ ¡ PreRinse Level of soiling: Cold rinsing, intermediate ¡ cleaning Use only if appliance is unloaded. Machine Care 70 °C Machine Care Note: The relatively long running time in the Eco 50 °...
- Page 20 en Additional functions Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Additional functions Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme.
- Page 21 Before using for the first time en 8.2 Etagere Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. 8.4 Cutlery basket Arrange cutlery in the cutlery basket, always without sorting it and with the sharp points downwards.
- Page 22 en Water softening system Tip: You can change these settings Add special salt. → Page 23 and other Basic settings → Page 33 Add rinse aid. → Page 25 at any time. Switch on the appliance. → Page 31 Setting the water softening system. Water softening system 10 Water softening sys- → Page 23 Set the amount of rinse aid to be dispensed.
- Page 23 Water softening system en ATTENTION! 10.2 Setting the water soften- Detergent may damage the water ing system softening system. Only fill the dispenser of the water Set the water hardness on your appli- ▶ softening system with special dish- ance. washer salt. Determine the water hardness and Special salt for dishwashers can the appropriate setting value.
- Page 24 en Water softening system 10.4 Switching off the water 10.5 Regeneration of the wa- softening system ter softening system If you find the special salt refill indic- In order to obtain fault-free function of ator irritating, e.g. when using com- the water softening system, the appli- bined detergents with salt replace- ance performs regeneration of the ment substances, you can switch the...
- Page 25 Rinse aid system en Close the lid of the dispenser for Rinse aid system 11 Rinse aid system rinse aid. The lid clicks into position. Rinse aid system 11.1 Rinse aid 11.2 Setting the amount of For optimum drying results, use rinse rinse aid aid.
- Page 26 en Detergent Note: Follow the manufacturer's in- 11.3 Switching the rinse aid structions for each detergent. system off Tip: Suitable detergents are available If you find the rinse aid refill indicator online via our website or from Cus- irritating, e.g. when using combined tomer Service → Page 52. detergents with a rinse aid compon- Tabs ent, you can switch the rinse aid sys-...
- Page 27 Detergent en For better washing and drying results 12.3 Information on deter- and to avoid damage to the appli- gents ance, please additionally use Special salt → Page 23 and Rinse aid Follow the instructions on detergents → Page 25. in everyday use. Detergents marked as "organic" or ¡...
- Page 28 en Tableware Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is The lid clicks into position. enough. Insert the tablets in a hori- The detergent dispenser will open zontal position.
- Page 29 Tableware en 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer.
- Page 30 en Tableware allowing steam to escape and water To save resources, do not pre- to leak out around the door. This rinse tableware under running wa- could damage your kitchen units. ter. Observe the following when arran- ging tableware: – Put heavily soiled tableware in the bottom basket, e.g.
- Page 31 Basic operation en 13.3 Removing tableware 14.2 Setting a programme To adjust the washing programme to WARNING the soiling level of the tableware, se- Risk of injury! lect a suitable programme. Hot tableware can cause burns to the skin. When hot, tableware is sensitive Press the programme button re- ▶...
- Page 32 en Basic operation While the programme is running, a Close the appliance door. spot of light is projected onto the floor below the appliance door. 14.7 Terminate programme This light will not be visible if the To end a programme early or to appliance is installed at eye level switch from a programme that has with the cabinet front fitted flush.
- Page 33 Basic settings en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Water hardness Scale with 4 levels Set the water hardness.
- Page 34 en Cleaning and servicing Press repeatedly until the LEDs Press repeatedly until show the right value. flash. Press to set the appliance back to the factory settings. The appliance is reset. Cleaning and servicing 16 Cleaning and servi- cing If LED A is not lit up, Extra Dry is switched off.
- Page 35 Cleaning and servicing en 16.3 Tips on appliance care Action Benefit using a damp Follow the tips on appliance care to cloth and wash- make sure your appliance functions ing-up liquid. properly at all times. If the appliance This will prevent Action Benefit is not going to unpleasant...
- Page 36 en Cleaning and servicing Make sure that there are no alu- ¡ 16.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. If you have not run Machine Care ¡...
- Page 37 Cleaning and servicing en Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ...
- Page 38 en Cleaning and servicing Pull up the lower spray arm to re- move. Check the outlet nozzles on the spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
- Page 39 Troubleshooting en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶...
- Page 40 en Troubleshooting Fault Cause and troubleshooting Display for water sup- Restore the power supply. ply lights up Switch the appliance on. Filters are soiled or blocked. Clean the filters. ▶ → "Cleaning filters", Page 36 Not an appliance fault. Siphon connection is still closed or the wastewater hose is kinked or blocked.
- Page 41 Troubleshooting en Fault Cause and troubleshooting Display "Check water A technical fault is present. supply" flashes Press Unplug the appliance or switch off the fuse. Wait at least 2 minutes. Insert the mains plug of the appliance in a socket or switch on the fuse. Switch the appliance on.
- Page 42 en Troubleshooting Fault Cause and troubleshooting Tableware is not dry. Use rinse aid to improve drying performance. Use a different combined detergent with a better drying performance. Extra Dry not activated to improve drying perform- ance. Activate Extra Dry. ▶ Tableware removed too early or drying process not yet ended.
- Page 43 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Spray arm nozzles are blocked. tableware. Clean the Spray arms → Page 37. ▶ Filters are soiled. Clean the filters. ▶ → "Cleaning filters", Page 36 Filters are inserted incorrectly and/or not engaged. Insert the filters properly. → "Filter system", Page 36 Engage the filters.
- Page 44 en Troubleshooting Fault Cause and troubleshooting Detergent residue in Lid of the detergent dispenser is blocked by items of the appliance tableware parts and will not open. Arrange tableware in the top basket tableware so the tab collecting tray is not obstructed by table- ware.
- Page 45 Troubleshooting en Fault Cause and troubleshooting Wipeable or water-sol- Special salt dispenser is not screwed tight. uble coatings are Screw the special salt dispenser tight. ▶ present inside the ap- pliance or on the door. Stubborn white coat- Detergent substances are deposited there. These ings are present on coatings cannot generally be removed with chemicals.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Coloured coatings The formation of films is due to substances contained (blue, yellow, brown) in vegetables (cabbage, celery, potatoes, noodles, that are difficult or im- etc.) or tap water (manganese). possible to remove Clean the appliance. ▶...
- Page 47 Troubleshooting en Fault Cause and troubleshooting Removable streaks Amount of rinse aid to be dispensed is set too high. are present on Set the rinse aid system to a lower setting. ▶ glasses, glassware → "Setting the amount of rinse aid", Page 25 with a metallic appear- No rinse aid has been added.
- Page 48 en Troubleshooting Fault Cause and troubleshooting Rust spots on cutlery. Remove any spilled special salt from the tub. Screw the cap of the special salt dispenser on tight. Detergent residue is Spray arms were blocked by tableware so detergent present in the deter- was not rinsed out.
- Page 49 Troubleshooting en Fault Cause and troubleshooting Water is left in the ap- → "Terminate programme", Page 32 ▶ pliance at the end of the programme. Appliance cannot be Appliance functions have failed. switched on or oper- Pull out the mains plug or switch off the fuse. ated.
- Page 50 en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Press the main switch button for approx. flashing. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 51 Transportation, storage and disposal en Insert the pump cover and press 17.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned.
- Page 52 en Customer Service 18.2 Protect appliance from 18.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely.
- Page 53 Customer Service en Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note: Under the terms of the manu- facturer's warranty the use of Cus- tomer Service is free of charge.
- Page 54 en Technical specifications Technical specifications 20 Technical specifications Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) ¡ Inlet rate Min. 10 l/min Water temperature Cold water.
- Page 55 A detailed Declaration of Conformity BSH Hausgeräte GmbH hereby de- Declaration of Conformity can be found online at www.junker- clares that the appliance conforms to home.com/uk among the additional the essential requirements and other documents on the product page for relevant provisions of Directive your appliance.
- Page 56 Valid within Great Britain: Imported to Great Britain by Nobilia GB Ltd. Kingsway Business Park OL16 4UG Rochdale Great Britain BSH Hausgeräte GmbH 642 E5 Carl-Wery-Straße 34 81739 München, GERMANY *9001806007* 9001806007 040227...
