Summary of Contents for Alienware AW2523HF

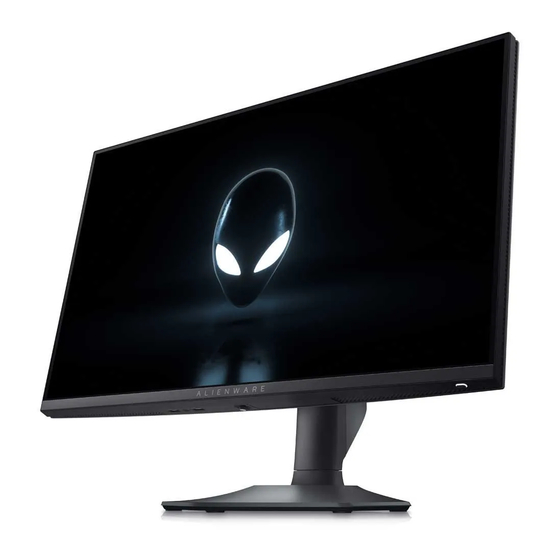

- Page 1 Service Manual - AW2523HF Version: 01 Date: 2022/7/7...
-
Page 2: Important Safety Notice
1. Important Safety Notice Product Announcement: ! To ensure using a proper screwdriver, follow the This product is certificated to meet RoHS torque and force listed in assembly and Directive and Lead-Free produced definition. disassembly procedures to unscrew screws. Using approved critical components only is ! Using Lead-Free solder to well mounted the recommended when the situation to replace parts. - Page 3 2. Exploded view diagram with list of items Item Description Q'ty Remark Panel Assy_Front Trim Shielding tape for panel Key Board Shielding tape for key board Joystick button Joystick Board Joystick holder USB Sub Board ForEMEAOnly,notfor EMI Sponge otherregions Power board Interface board USB Main Board AC socket...
- Page 4 3. Wiring Connectivity Diagram interface Board...
- Page 5 4. How to connect and disconnect power cable/ connectivity cable WARNING: To change power cable/ connectivity cable, switch off power before unplugging the cable and replugging in required cable.
-
Page 6: Disassembly And Assembly Procedures
5. Disassembly and Assembly Procedures NOTE: This “Disassembly and Assembly Procedures” is for EMEA only, not for other regions. Please note that Dell will deem warranty void if any disassembly is done on the monitors. Tool Required: List the type and size of the tools that would typically can be used to disassemble the product to a point where components and materials requiring selective treatment can be removed. - Page 7 5. Disassembly and Assembly Procedures Tear off 2pcs tapes on the back of the power key Use a Philips-head screwdriver to remove 1pcs cable, then lift up the middle bezel and remove the screw for unlocking the joystick board with middle middle bezel.
- Page 8 5. Disassembly and Assembly Procedures Lift up the bracket chassis module and put the bracket chassis module on a protective cushion. Use a Philips-head screwdriver to remove 10pcs screws for unlocking the power board, interface board and main USB board with the bracket, then release the EDP cable and panel lamp cable from the hooks of the bracket chassis module.
- Page 9 5. Disassembly and Assembly Procedures Use a Philips-head screwdriver to tighten 10pcs 5.2 Assembly Procedures: Place a bracket chassis base on a protective screws for locking the power board, interface board cushion, then paste 3pcs Silicon sheet on the and main USB board with the bracket, then locate correct positions as the picture below shown, then the EDP cable and panel lamp cable into the hooks assemble 1pcs AC outlet with the bracket.
- Page 10 5. Disassembly and Assembly Procedures Take 1pcs power key board with key cable and 1pcs Use a Philips-head screwdriver to tighten 4pcs middle frame, and then locate the power key board to screws for locking the bracket with the panel. the specific position of the middle frame.
- Page 11 5. Disassembly and Assembly Procedures Take 1pcs USB sub board, 1pcs connective cable Connect the power key cable and joystick key cable to the connectors of the board, then paste and 1pcs FFC cable. Connect the two cables to the 1pcs aluminum foil on the specific position to fix the connectors of the USB sub board, paste 1pcs cables and EDP connectors.
- Page 12 6. Trouble Shooting Instructions Lift up the monitor to checking the gap between the front bezel with panel module , then provide power supply and a video signal to the monitor, then turn on the monitor for functionality check.
- Page 13 6. Trouble Shooting Instructions...
- Page 14 6. Trouble Shooting Instructions...
- Page 15 6. Trouble Shooting Instructions...
- Page 16 6. Trouble Shooting Instructions...
- Page 17 6. Trouble Shooting Instructions...
- Page 18 6. Trouble Shooting Instructions...
