Please read the instructions completely before beginning the installation.
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4" and maximum of 1-1/2"
Important Note:
For Edo Roman Tub, Please remove the Handle Bell Adapter from the valve
before installing the handle. Edo Handle Bell will be able to fit onto the valve
without Handle Bell Adapter due to its design.

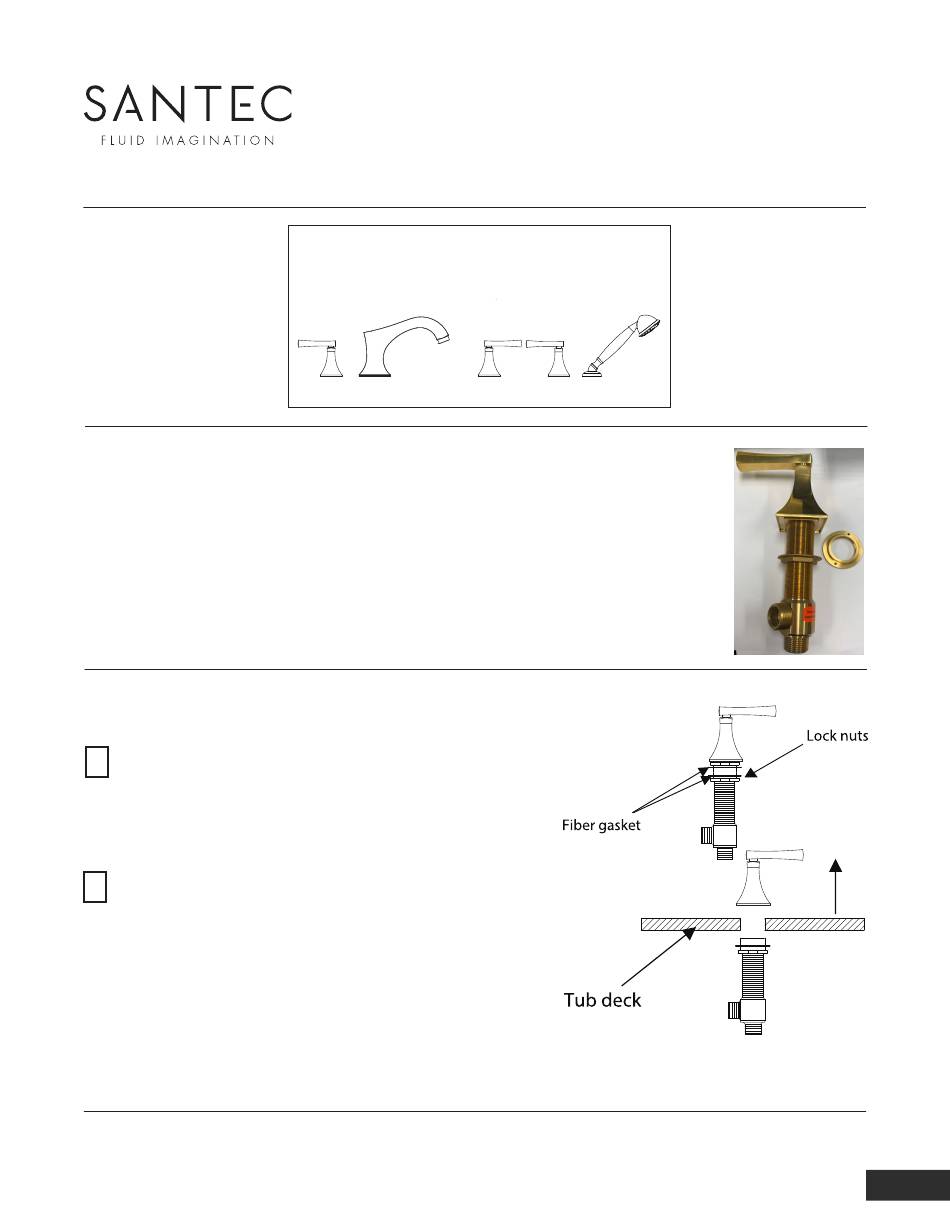

HANDLE TRIM INSTALLATION
-Unscrew pre-assembled handle trim from the valve
1
body. Hot valve assembly "Red" to be mounted on
left. Cold valve assembly "Blue" to be mounted on right.
- Remove the top lock nut and the fiber gasket from
2
the valve body.
- Apply a ring of silicone caulking around the handle hole
on deck top.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
Edo Zen Collection
Model Number: 9250ED-TM & 9255ED-TM
(also for 9250DC-TM, 9250DB-TM, 9255DC-TM, & 9255DB-TM)
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
Installation Instruction
EDO COLLECTIONS
Roman Tub Filler (with Hand Shower)
Rev 01/2019
1/4
Advertisement
Related Manuals for Santec Edo Zen 9255ED-TM
Summary of Contents for Santec Edo Zen 9255ED-TM
- Page 1 Rev 01/2019 Installation Instruction EDO COLLECTIONS Roman Tub Filler (with Hand Shower) Please read the instructions completely before beginning the installation. Edo Zen Collection Model Number: 9250ED-TM & 9255ED-TM (also for 9250DC-TM, 9250DB-TM, 9255DC-TM, & 9255DB-TM) Flush both supply lines before installation, then shut off both supply lines. Minimum hole size for the spout and handle trim is 1-1/4”...
- Page 2 -Slip valve body up from below tub deck. Place the top lock nut and the fiber gasket back onto the valve body until the top surface of the lock nut is flush with the top surface of the valve body. - Secure the top lock nut in place before inserting the handle.
- Page 3 HAND SHOWER INSTALLATION - Apply a ring of silicone caulking around the hole designated for the hand held shower. Do not use plumber’s putty, which can damage finish. - Remove the hardware from Base Flange. Slip the Base Flange through the appropriate hole in deck.
