Summary of Contents for PCE Instruments DPM 3

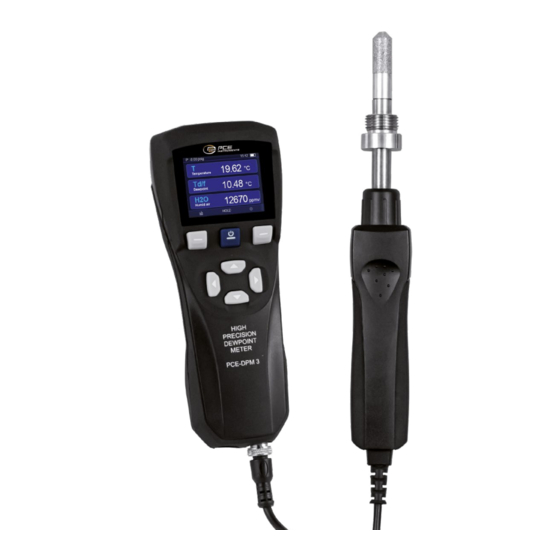

- Page 1 USER MANUAL DEWPOINT METER PCE-DPM 3 User manuals in various languages (français, italiano, español, português, nederlands, türk, polski) can be found via our product search on: www.pce-instruments.com...
-
Page 2: Safety Information
The device should only be cleaned with a cloth. Do not use abrasive cleaning agents or those containing solvents. » The device may only be used with the accessories offered by PCE Instruments or equivalent replacements. » Check the casing of the measuring device for visible damage before each use. If any visible damage is detected, the device must not be used. -
Page 3: Specifications
SPECIFICATIONS Function Measuring range Resolution Accuracy at 20 °C Temperature -10 ... 60 °C 0.01 °C -10 ... 50 °C: ±0.3 °C (+14 ... 140 °F) (+14 ... 122 °F: ±0.54 °F) Relative 0 ... 100 % 0.01 % <5 %: ±(0,025 % + 17.5 % v. -
Page 4: Device Description
DEVICE DESCRIPTION 1 - Display 2 - Back button 3 - On/off switch, hold button 4 - Left arrow button 5 - Interface 1 (not in use) 6 - Micro USB connection 7 - Enter button 8 - Up arrow button 9 - Right arrow button 10 - Down arrow button 11 - Interface 2... -
Page 5: Measurement Window
MEASUREMENT WINDOW The arrow keys can be used to change the appearance of the measurement window. Two different variants are available. In addition, the Hold key can be used to hold the currently displayed values and the Enter key to save them as preferred. - Page 6 Connect computer: Select this option if you want to transfer the data to a computer. Do not leave the menu option during the transfer. The data is displayed in an Excel spreadsheet. » Recording function To save the data from the measuring device, select the Recording menu item using the left or right arrow key.
- Page 7 » Set molar mass The molar mass of air is 28.96 g/mol, and the molar mass of SF6 gas is 146.05 g/mol. When measuring SF6 gas, for example, ppmw M must be set to 146.05 g/mol. Change the value and select the unit by using the up and down arrow keys.
- Page 8 We either re-use them or give them to a recycling company which disposes of the devices in line with law. For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE INSTRUMENTS CONTACT INFORMATION...
