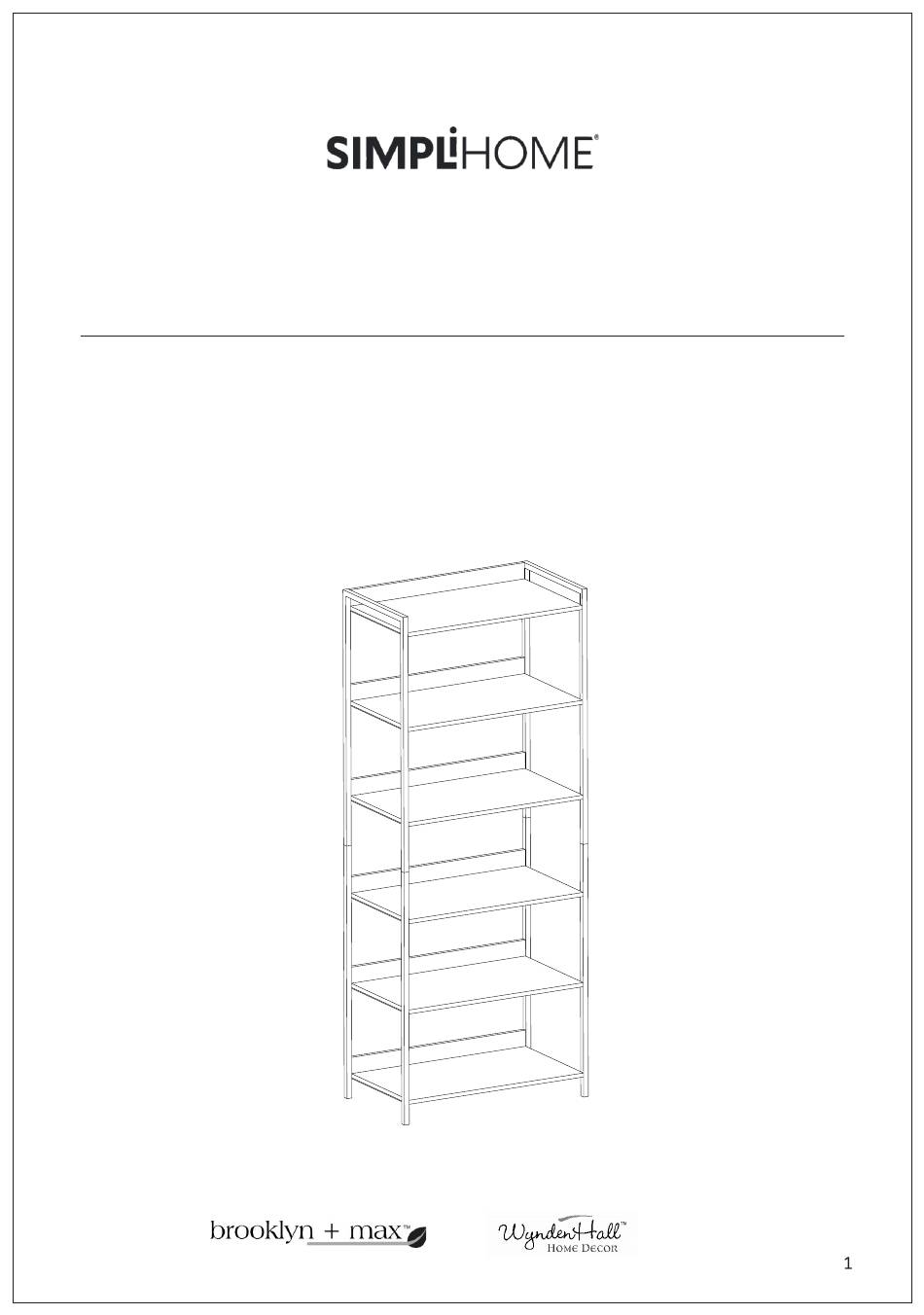

- Page 1 Kelsey / Paola / Amryn Large Bookshelf MODEL # AXCKEL-09LG-NL...
- Page 5 This furniture is designed for indoor use.
- Page 7 Model # AXCKEL-09LG-NL BOTTOM LEFT FRAME BOTTOM RIGHT FRAME QTY 1 QTY 1 TOP RIGHT FRAME TOP LEFT FRAME QTY 1 QTY 1 SHELF QTY 6...
- Page 8 Model # AXCKEL-09LG-NL LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY Ø15 / Ø8 x 1.5 mm Ø18 / Ø8 x 1.5 mm M6 X 15mm QTY 48 QTY 1 QTY 48 QTY 48 QTY - 4 M4 x 30 mm - QTY - 4 ALLEN KEY BOLT FURNITURE TIP OVER RESTRAINT M6 X 10mm...
- Page 9 Model # AXCKEL-09LG-NL...
- Page 10 Model # AXCKEL-09LG-NL Step 1 1. Place Bottom Right Frame AR on a flat, smooth surface. 2. Attach Bottom Right Frame AR to Top Right Frame BR . 3. Use Allen Key Bolts to secure 4. Use Allen Key to tighten. 5.
- Page 11 Model # AXCKEL-09LG-NL Step 2 1. Attach Shelves to Bottom Right Frame & BR . 2. Use Allen Key Bolts Lock Washers and Washers to secure AR & BR . 3. Use Allen Key to tighten.
- Page 12 Model # AXCKEL-09LG-NL Step 3 AL & BL 1. Attach Bottom Left Frame to Shelves C . 2. Use Allen Key Bolts Lock Washers and Washers to secure AL & BL . 3. Use Allen Key to tighten.
- Page 13 Model # AXCKEL-09LG-NL Step 4 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 14 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture p- ver. If the furniture p ver restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 5 NOTE: The screwdriver is not included in the hardware pack.
- Page 15 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge o f the furniture. Use the shorter screw. √ Determine where Furniture is to be placed and mark location o n the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
