Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall Kelsey AXCKEL-10LG-NL

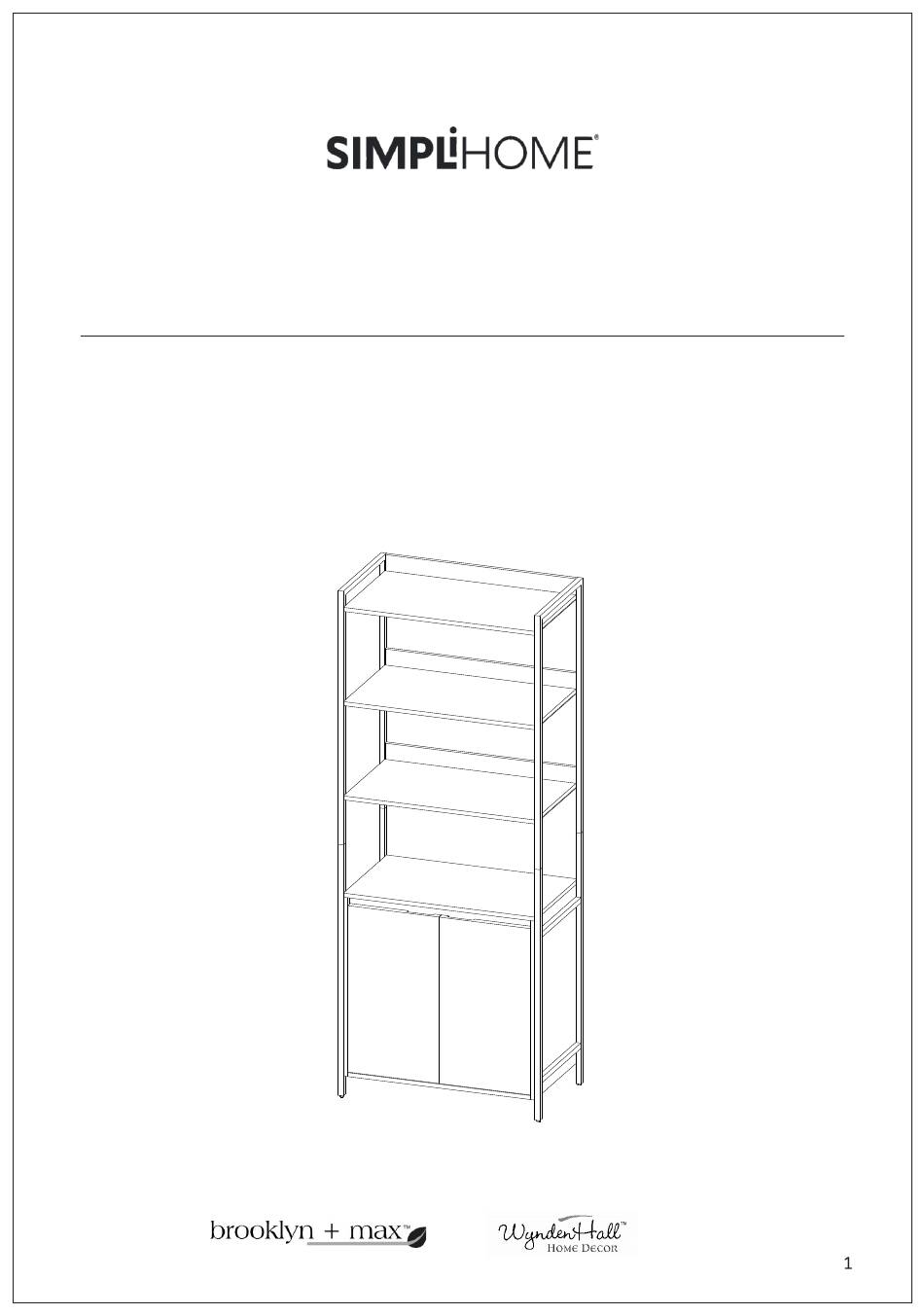

- Page 1 Kelsey / Paola / Amryn Large Bookshelf with Cabinet MODEL # AXCKEL-10LG-NL...
- Page 5 This furniture is designed for indoor use.
-
Page 7: Bottom Panel
Model # AXCKEL-10LG-NL BOTTOM RIGHT FRAME BOTTOM LEFT FRAME QTY 1 QTY 1 TOP RIGHT FRAME TOP LEFT FRAME QTY 1 QTY 1 BOTTOM PANEL SHELF QTY 1 QTY 3 LEFT DOOR RIGHT DOOR QTY 1 QTY 1... -
Page 8: Adjustable Shelf
Model # AXCKEL-10LG-NL ADJUSTABLE SHELF BACK PANEL QTY 1 QTY 2 TOP PANEL QTY 1... - Page 9 Model # AXCKEL-10LG-NL LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY Ø15 / Ø8 x 1.5 mm Ø18 / Ø8 x 1.5 mm M6 X 30mm QTY 12 QTY 1 QTY 30 QTY 30 ALLEN KEY BOLT ALLEN KEY BOLT SHELF SUPPORT M6 X 10mm M6 X 15mm...
- Page 10 Model # AXCKEL-10LG-NL...
- Page 11 Model # AXCKEL-10LG-NL Step 1 1. Place Bottom Right Frame AR on a flat, smooth surface. 2. Attach Bottom Right Frame AR to Top Right Frame C . 3. Use Allen Key Bolts to secure 4. Use Allen Key to tighten. Do not over-tighten. 5.
- Page 12 Model # AXCKEL-10LG-NL Step 2 1. Attach Bottom Panel to Bottom Right Frame 2. Use Allen Key Bolts Lock Washers and Washers to secure 3. Use Allen Key to tighten. Do not over-tighten.
- Page 13 Model # AXCKEL-10LG-NL Step 3 1. Attach one Back Panel 2. Attach Aluminium Profile to Back Panel...
- Page 14 Model # AXCKEL-10LG-NL Step 4 1. Attach second Back Panel with Aluminium Profile...
- Page 15 Model # AXCKEL-10LG-NL Step 5 1. Attach Top Panel to Bottom Right Frame 2. Use Allen Key Bolts Lock Washers and Washers to secure 3. Use Allen Key to tighten. Do not over-tighten.
- Page 16 Model # AXCKEL-10LG-NL Step 6 1. Attach Shelves to Top Right Frame 2. Use Allen Key Bolts Lock Washers and Washers to secure 3. Use Allen Key to tighten. Do not over-tighten.
- Page 17 Model # AXCKEL-10LG-NL Step 7 1. Attach Bottom Left Frame & to Shelves ,Top Panel & Bottom Panel 2. Use Allen Key Bolts , 1 Lock Washers and Washers to secure , D ,& I . 3. Use Allen Key to tighten.
- Page 18 Model # AXCKEL-10LG-NL Step 8 1. Insert Shelf Supports in holes in cabinet. 2. Place Adjustable Shelf in cabinet.
- Page 19 Model # AXCKEL-10LG-NL Step 9 Attach Doors & using adjustable hinges.
- Page 20 Model # AXCKEL-10LG-NL Step 10...
- Page 21 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture p- ver. If the furniture p ver restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 22 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge o f the furniture. Use the shorter screw. √ Determine where Furniture is to be placed and mark location o n the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
