G563
INSTALLATION GUIDE
CopyRight @ 2025.02
Please remove the screws before
Please remove the side panels before
removing the side panels.
removing the front panel.

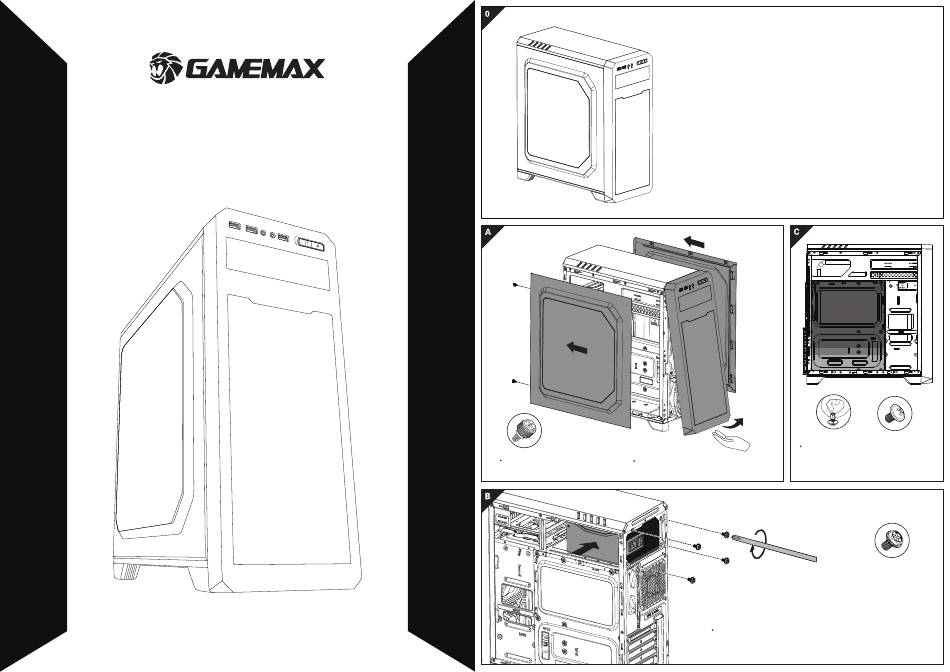

A: Remove the side panels and front panel.
B: Install the power supply (PSU).
C: Install the motherboard (MB).
D: Install the fans.
E: Install the hard-disk drive (HDD).
F: Install the solid-state drive (SSD).
G: Install the graphics card (VGA).
ITX
M-ATX
ATX
Screw the iron screws, use the provided
standoffs and screws to secure the
motherboard
Please make sure that the PSU ventilation slots and threaded
holes are positioned correctly in relation to the chassis.
