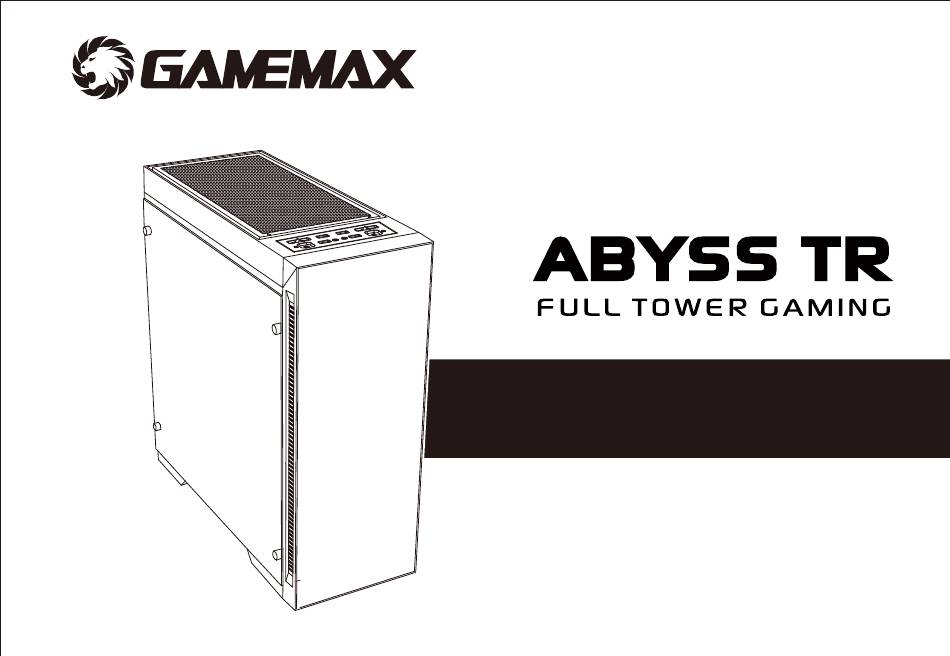

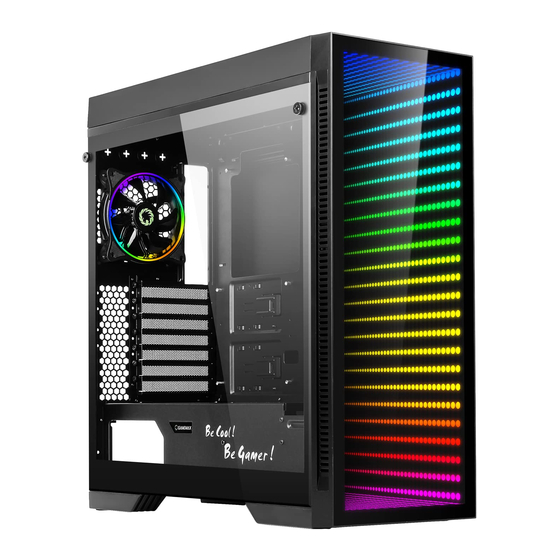

- Page 1 INSTALLATION GUIDE CopyRight @ 2020.6...
- Page 2 Specification Abyss TR (MFG. M908 TR) Model No. 210(W)x 527(H)x 512(L)mm Dimension Steel/ABS Material E-ATX/ATX/Micro-ATX/ITX M/B Type 5.25"Drive Bay 3.5” HDD*3/2.5” SSD*3 HDD Drive Bay 7 Slots Support VGA card 420mm Expansion Slots Front Back 170mm Height of CPU Top: 120mm*3/140mm*2 (User option)
- Page 3 Front panel Right side panel Left side panel Top panel Top dust filter Top fan place Rear fan place Front fan place PSU Place M/B place ODD place 3.5/2.5 HDD Rack SSD rack Bottom dust filter RGB+PWM Foot control board...
- Page 4 USB2.0 M/B I/O Connector Fan Connector Fan Contrller Reset S/W M/B Connector Power LED S/W M/B Connector HDD LED M/B Connector Power S/W M/B Connector LED M/B H/D audio USB3.1 GEN1 Connector M/B I/O Connector M/B Connector...
- Page 5 How to install PSU Clean dust filters Insert PSU Fix with screws Remove the dust filter from the PSU position How to install 3.5"HDD&2.5"SSD How to install M/B Remove the bay bracket Insert the hard drive into place Install M/B...
- Page 6 How to install 2.5"SSD SSD place 1 Losen screws,remove SSD bracket Install SSD,fix with screws Insert SSD bracket into place SSD place 2 Insert SSD Fix with screws Fix with screws...
- Page 7 Cable connection instrution HDD LED M/B connector POWER LED M/B connector Reset S/W M/B connector Power S/W M/B connector Power for fan Power for fan controller 4pin controller 3pin...
- Page 8 How to install the water cooling Put the radiator in the rear Put the radiator in front place Fix with screws panel then fix with screws The size of water-cooling: Front panel : 240/360mm Top panel: 280/360mm Rear panel: 120mm Fix with screws Put the radiator in top place...
- Page 9 ( User option ) No.2 How to install water tank(User option) No.1 How to install VGA card fix unit (User option) Install water tank Fix with screws No.3 How to use RAM cooler guide install2.5"/3.5"HDD/SSD 1、Loosen screw 1,adjust A 2、Loosen screw 2 and screw 5,adjust C 3、Loosen screw 3 and screw 4 ,adjust B...
- Page 10 HV1.7 ARGB (RAINBOW) HUB CONTROLLER Schematic diagram of connection 1. Product features 3. Interface definitions 1. 18 color models. 3-1. ARGB 2. Mode and color adjustment. ARGB connect fan or light bar. The triangle mark on the plug is 3. Brightness adjustment.（can be Selection） aligned with the arrow on the controller.
- Page 11 Please take a moment to carefully go through the user manual. GAMEMAX will not take responsibility for any damages incurred due to incorrect installation and usage of this product. For more information to visit www.gamemaxpc.com...
