VINGLI WOOD BED
ASSEMBLY INSTRUCTION FOR MODELS
PBOPWTW
Please contact us via email if parts are missing or damaged, we will
gladly ship your replacement parts free of charge. Please attach your
EMAIL
support@vingli.com
Thank you for purchasing from VINGLI!
Order ID so that we can assist you better.
WEBSITE
www.vingli.com
IMPORTANT
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ
AND KEEP FOR FUTURE
REFERENCE.
Advertisement
Table of Contents
Related Manuals for VINGLI PBOPWTW
Summary of Contents for VINGLI PBOPWTW
- Page 1 VINGLI WOOD BED ASSEMBLY INSTRUCTION FOR MODELS PBOPWTW Thank you for purchasing from VINGLI! Please contact us via email if parts are missing or damaged, we will gladly ship your replacement parts free of charge. Please attach your Order ID so that we can assist you better.
-
Page 2: Warranty
Your satisfaction is our highest pursuit. Return Policy VINGLI believes you will absolutely love your wood bed, but if for some reason you want to return the product, please contact us directly before you decide to return your product to the retailer. Our Customer Service organization can answer most concerns and can assist you with any questions you may have about your new product. -
Page 3: Before Starting
BEFORE STARTING Before Using Product Read each step carefully before starting. It is very important that each step is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur. Make sure all parts are included. Most board parts are labeled or stamped on the raw edge. -
Page 4: Applicable Model

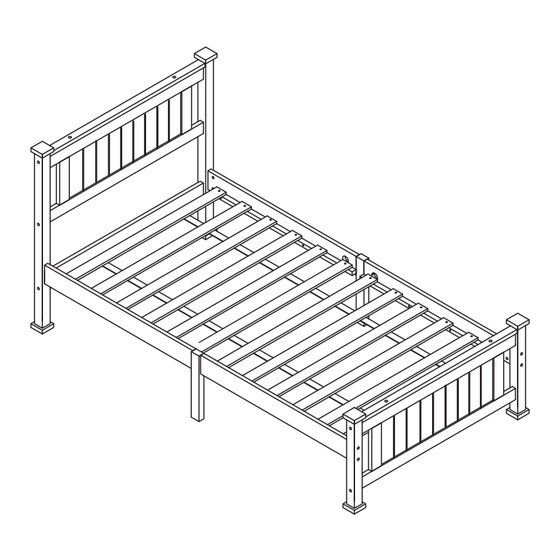

MODEL & ASSEMBLY TIPS Applicable Model 37.79” 19.69” MODEL: PB0PWTW DIMENSION Outside Dimensions: 78.54"L x 42.52"W x 37.79"H（Headboard）x 19.69"H（Footboard） Inner Frame Size: 38.98"Wx73.94" L FEATURES 100% Solid Pine Wood with White Paint Load-Capacity: 264.5lb Estimated Time for Assembly 70 mins Caution: 1.This product is designed for home use and not intended for commercial use. -
Page 5: Identify Parts
IDENTIFY PARTS All in 1 big box! -
Page 6: Part List
PART LIST Notice: This model no need #6 panel, not missing Headboard Upper Upper horizontal bar Middle horizontal bar Headboard vertical Headboard base cross Cover (x2) (x2) (x2) bar (x4) panel (x1) Head left leg (x1) Foot right leg (x1) Core board (x4) Head right leg (x1) Foot left leg (x1) - Page 7 ASSEBMLY STEPS New panels & accessories needed in below step Middle horizontal bar Headboard vertical Small wood dowel Core board (x2) (x2) bar (x4) (x24) STEP1 A Put #5 Headboard vertical bar insert #3 Middle horizontal bar And then insert #7 Core board as figure shows...
- Page 8 ASSEBMLY STEPS New panels & accessories needed in below step Small wood dowel Headboard Upper Upper horizontal bar Large self-tapping (x24) Cover (x2) (x1) screw (x12) STEP2 B Use large self-tapping screw E & small wood dowel D to fix #2 Upper horizontal bar on #5 Headboard vertical bar &...
- Page 9 ASSEBMLY STEPS New panels & accessories needed in below step Head left leg (x1) Head right leg (x1) Foot left leg (x1) Foot right leg (x1) Wood cap (x8) Large wood dowel Glue (x1) (x38) STEP3 Put wood dowel (C) insert the 2 end of bed corner legs (#8, 9, 10, 11) with glue (N), and then put #12 Wood cap on...
- Page 10 ASSEBMLY STEPS New panels & accessories needed in below step Headboard base Large wood dowel Self-locking (x18) Allen Key (x1) Screw (x18) cross panel (x1) (x38) STEP4 Fix each bed corner legs (#8, 9, 10, 11) to the headboard and footboard according to the position of holes on it or the figure on IDENTIFY PARTS page The headboard panel will need to added #4 headboard base cross panel at the same time as below figure...
- Page 11 ASSEBMLY STEPS New panels & accessories needed in below step Large self-tapping Small wood dowel Side beams (x2) Side beams (x2) Side support bar (x4) (x32) screw (x28) STEP5 Insert wood dowel (D) into the hole of Side beams (#13,14), place #15 Side support bar on the side panel, and then use self-tapping screw (E) to tight...
- Page 12 ASSEBMLY STEPS New panels & accessories needed in below step Middle support leg Large wood dowel Nut (x4) Connecting rod (x2) Crescent washer (x4) (x2) (x38) Wrench (x2) STEP6 Insert Connecting rod (G) and wood dowel (C) on #16 Middle support leg first, and then put on Side beams (#13,14) tight them by Crescent washer (H) and Nut(J) with the helping of Wrench L (Tips: the #15 Side support bar on left And right Side beams should be in same level, and...
- Page 13 ASSEBMLY STEPS New panels & accessories needed in below step Large wood dowel Screw (x18) Self-locking (x18) (x38) STEP7 Put assembled bed side together with headboard and footboard Methods: Fix one Side beams with the headboard first: put wood dowel (C) insert the side hole of headboard, and then insert 2 pcs of Self-locking nut (B) on the inner side horizontally to fix with leg of headboard, and then put screw (A) through legs to fix bed side panel.
- Page 14 ASSEBMLY STEPS New panels & accessories needed in below step Small self-tapping Wood slat (x1) screw (x24) STEP8 Fix #17 wood slat on (strips side should be underneath) with self-tapping screw (F)
- Page 15 ASSEBMLY STEPS New panels & accessories needed in below step Hole cover (x36) STEP9 To make the product more beautiful, paste Hole cover ( M ) on all the exposed screw holes.
-
Page 16: Maximum Loads
MAXIMUM LOADS This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging instability, collapse, and serious injury. Load-bearing: 264.5lb / 120kg... - Page 17 1. What should I do when there are accessories or hardware missing? Pls feel free to contact VINGLI customer service via www.vingli.com with your order ID, the quantity, and corresponding listing number of missing part. We will send out for you as soon as possible.
- Page 18 FAQs Share your shopping experience with friends and families. Like “ VINGLI” on Facebook for more Amazon deals & promotions. Get Free Products! If your advice on either our product or instruction is taken, a free gift will be provided! For any questions or feedback, please email us with your order ID.
