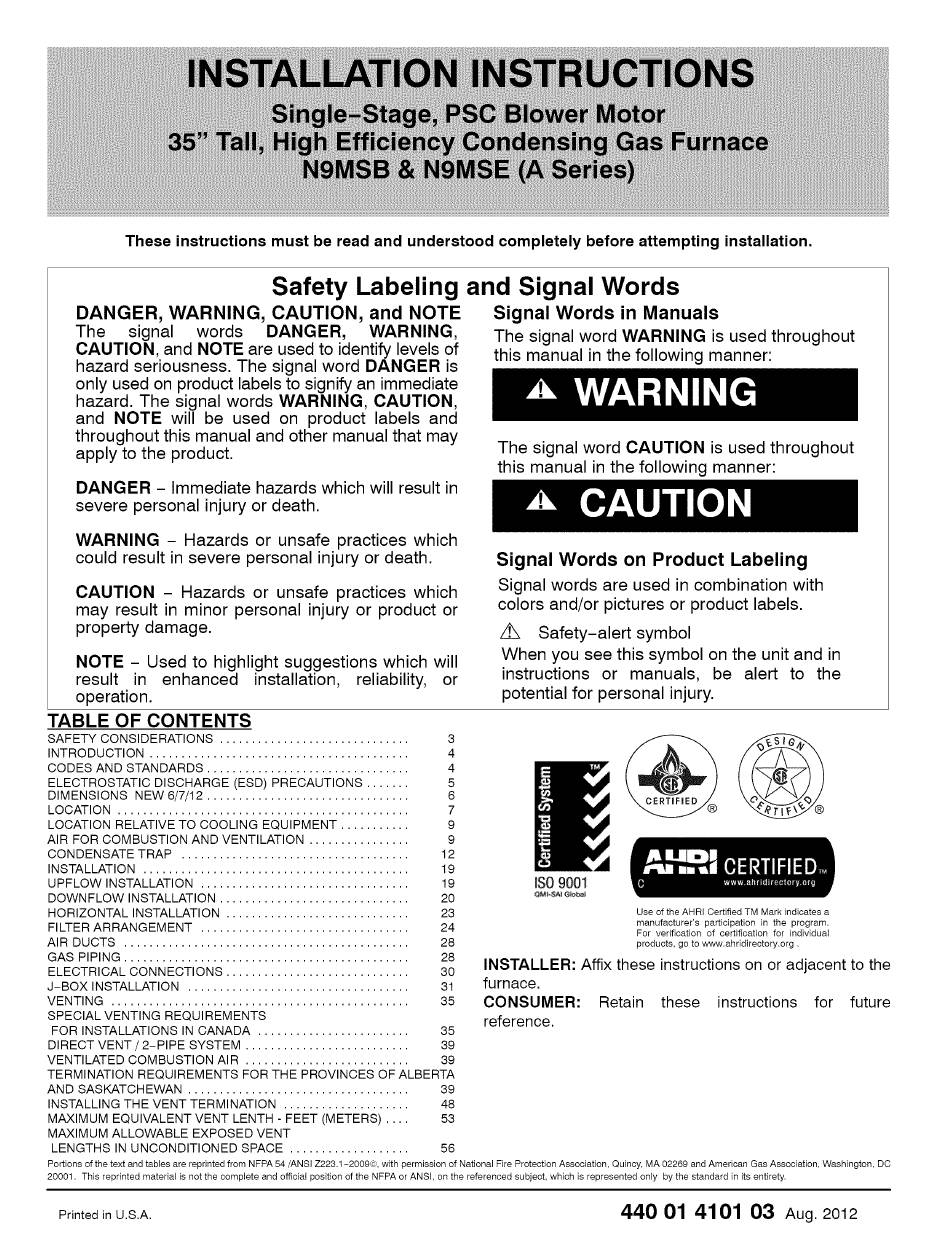

ICP N9MSE1002114A1 Installation Instructions Manual

These instructions must be read and understood completely before attempting installation.
Safety Labeling and Signal Words
DANGER, WARNING, CAUTION, and NOTE
The signal words DANGER, WARNING,
CAUTION, and NOTE are used to identify levels of
hazard seriousness. The signal word DANGER is
only used on product labels to signify an immediate
hazard. The signal words WARNING, CAUTION,
and NOTE will be used on product labels and
throughout this manual and other manual that may
apply to the product.
DANGER - Immediate hazards which will result in
severe personal injury or death.
WARNING - Hazards or unsafe practices which
could result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which
may result in minor personal injury or product or
property damage.
NOTE - Used to highlight suggestions which will
result in enhanced installation, reliability, or
operation.
Signal Words in Manuals
The signal word WARNING is used throughout
this manual in the following manner:
4 WARNING
The signal word CAUTION is used throughout
this manual in the following manner:
4 CAUTION
Signal Words on Product Labeling
Signal words are used in combination with
colors and/or pictures or product labels.
ZN Safety-alert symbol
When you see this symbol on the unit and in
instructions or manuals, be alert to the
potential for personal injury.
TABLE OF CONTENTS
SAFETY CONSIDERATIONS 2.0.0... 0c ccc ccc eee 3
INTRODUCTION 1... eet teens 4
CODES AND STANDARDS ... 0... ccc cee 4
ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS 5
DIMENSIONS NEW 6/7/12 00... 6
LOCATION 2... ccc eee ents 7
LOCATION RELATIVE TO COOLING EQUIPMENT .......... 9
AIR FOR COMBUSTION AND VENTILATION ............005 9
CONDENSATE TRAP oo... ccc ccc cece eee 12
INSTALLATION .. 0... eee 19
UPFLOW INSTALLATION wo... cece eens 19
DOWNFLOW INSTALLATION 1.0... cee eee 20
HORIZONTAL INSTALLATION 1.0... 0. cece eee 23
FILTER ARRANGEMENT 2... cece cece eee 24
AIR DUCTS woo cee 28
GAS PIPING 0... 28
ELECTRICAL CONNECTIONS ..... 0.00. cece cece eee 30
J-BOX INSTALLATION vo. ccc 31
VENTING ooo cette 35
SPECIAL VENTING REQUIREMENTS
FOR INSTALLATIONS IN CANADA .... 0.000 cece eee 35
DIRECT VENT /2-PIPE SYSTEM ..... 0... cece eee 39
VENTILATED COMBUSTION AIR «0.0.0.0... cece eee 39
TERMINATION REQUIREMENTS FOR THE PROVINCES OF ALBERTA
AND SASKATCHEWAN 00... ccc cece eens 39
INSTALLING THE VENT TERMINATION ...... 0.0.00 cee eee 48
MAXIMUM EQUIVALENT VENT LENTH - FEET (METERS).... 53
MAXIMUM ALLOWABLE EXPOSED VENT
LENGTHS IN UNCONDITIONED SPACE ..............0005 56
'Ns
= s G
ry CERTIFIED ®
Es
ie
5
Pre
Bo
hed 'M fair CERTIFIED...
iso 9007 i www. ahridirectory.org
CMDS' Global
Use of the AHRI Certified TM Mark indicates a
manufacturer's participation in the program.
For verification of certification for individual
products, go to www.ahridirectory.org .
INSTALLER: Affix these instructions on or adjacent to the
furnace.
CONSUMER: Retain these instructions for future
reference.
Portions of the text and tables are reprinted from NFPA 54 /ANSI Z223.1-20096, with permission of National Fire Protection Association, Quincy, MA 02269 and American Gas Association, Washington, DC
20001. This reprinted material is not the complete and official position of the NFPA or ANSI, on the referenced subject, which is represented only by the standard in its entirety,
Printed in U.S.A.
440 01 4101 03 Aug. 2012
