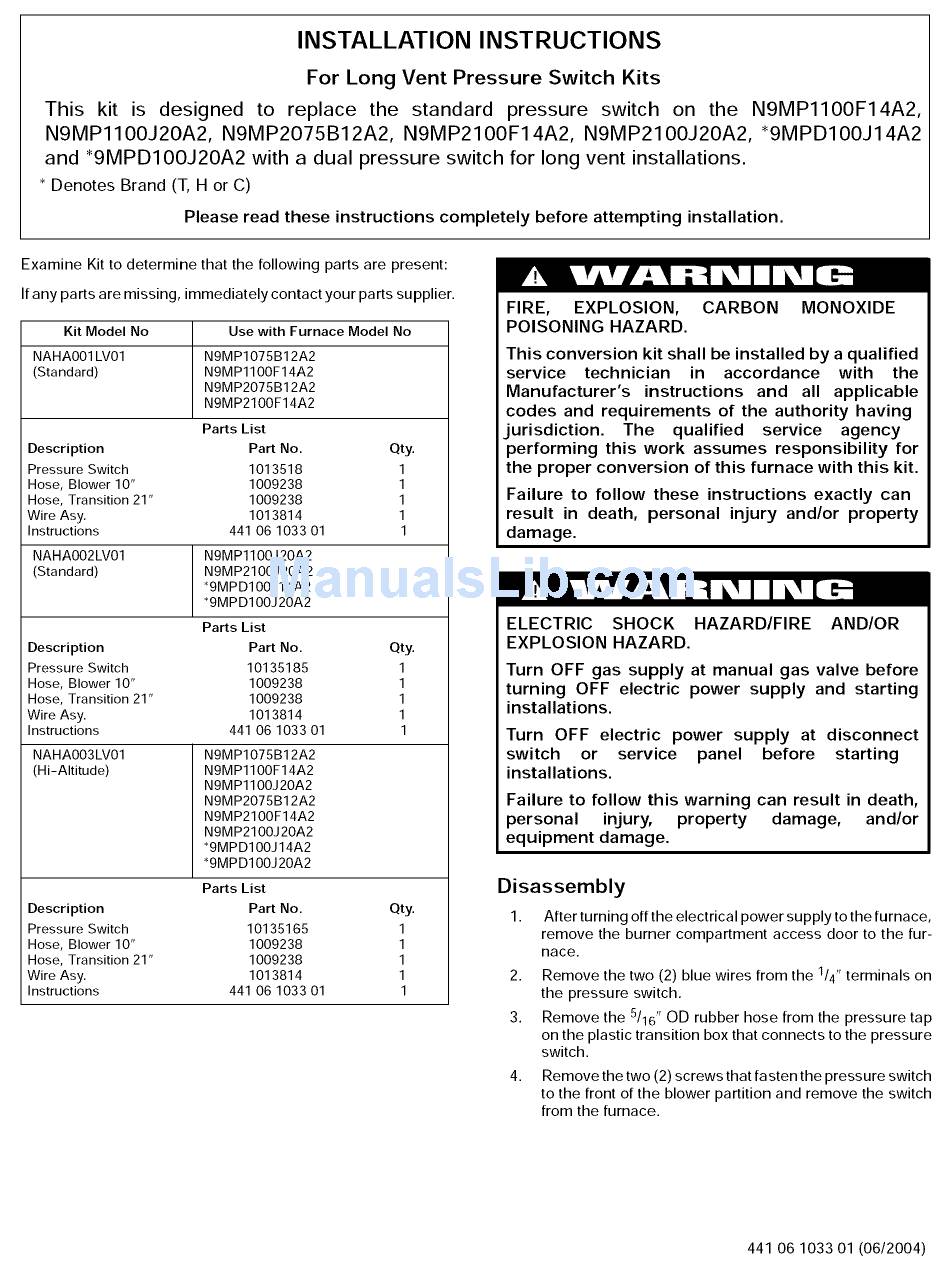

INSTALLATION INSTRUCTIONS
For Long Vent Pressure Switch Kits
This kit is designed to replace the standard pressure switch on the N9MP1100F14A2,
N9MP1100J20A2, N9MP2075B12A2, N9MP2100F14A2, N9MP2100J20A2, _9MPD100J14A2
and _9MPD100J20A2 with a dual pressure switch for long vent installations.
Denotes Brand (T, H or C)
Please read these instructions completely before attempting installation.
Examine Kit to determine that the following parts are present:
If any parts are missing, immediately contact your parts supplier.
Kit Model No Use with Furnace Model No
NAHA001 LV01 N9MP1075B12A2
(Standard) N9MP1100F14A2
N9MP2075B12A2
N9MP2100F14A2
Description
Pressure Switch
Hose, Blower 10"
Hose, Transition 21"
Wire Asy.
Instructions
NAHAOO2LV01
(Standard)
Description
Pressure Switch
Hose, Blower 10"
Hose, Transition 21"
Wire Asy.
Instructions
NAHAOO3LV01
(Hi-Altitude)
Description
Pressure Switch
Hose, Blower 10"
Hose, Transition 21"
Wire Asy.
Instructions
Parts List
Part No. Qty,
1013518 1
1009238 1
1009238 1
1013814 1
441 06 1033 01 1
N9MP1100J20A2
N9MP2100J20A2
_9MPD100J 14A2
_9MPD100J20A2
Parts List
Part No. Qty,
10135185 1
1009238 1
1009238 1
1013814 1
441 06 1033 01 1
N9MP1075B12A2
N9MP1100F14A2
N9MP1100J20A2
N9MP2075B12A2
N9MP2100F14A2
N9MP2100J20A2
_9MPD100J 14A2
_9MPD100J20A2
Parts List
Part No. Qty,
10135165 1
1009238 1
1009238 1
1013814 1
441 06 1033 01 1
FIRE, EXPLOSION, CARBON MONOXIDE
POISONING HAZARD.
This conversion kit shall be installed by a qualified
service technician in accordance with the
Manufacturer's instructions and all applicable
codes and requirements of the authority having
jurisdiction. The qualified service agency
performing this work assumes responsibility for
the proper conversion of this furnace with this kit.
Failure to follow these instructions exactly can
result in death, personal injury and/or property
damage.
ELECTRIC SHOCK HAZARD/FIRE AND/OR
EXPLOSION HAZARD.
Turn OFF gas supply at manual gas valve before
turning OFF electric power supply and starting
installations.
Turn OFF electric power supply at disconnect
switch or service panel before starting
installations.
Failure to follow this warning can result in death,
personal injury, property damage, and/or
equipment damage.
Disassembly
1. After turning off the electrical power supply to the furnace,
remove the burner compartment access door to the fur-
Race.
2. Remove the two (2) blue wires from the 1/4" terminals on
the pressure switch.
3. Remove the 5/16" OD rubber hose from the pressure tap
on the plastic transition box that connects to the pressure
switch.
4. Remove the two (2) screws that fasten the pressure switch
to the front of the blower partition and remove the switch
from the furnace.
441 06 1033 01 (06/2004)
