Summary of Contents for Cast Tec Integra Electraflame 3D Inset

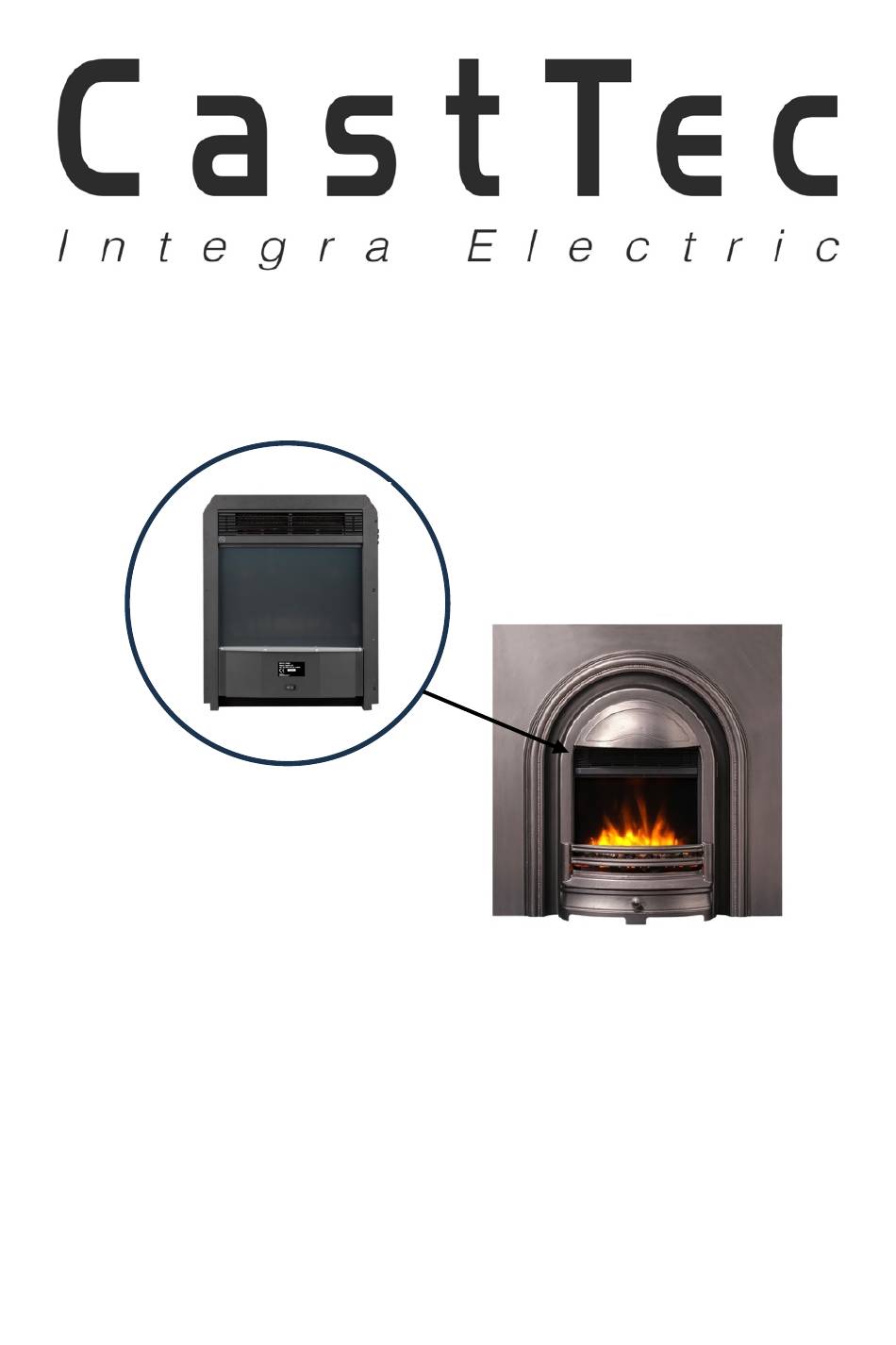

- Page 1 Electraflame 3D Inset Model No. EF16NC Integra adaptation. Installation and Operation Instructions...
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ······················································· 1 2. Technical Specifications ······························································ 3 1. Parts and Hardware ··································································· 4 2. Appliance Dimensions ································································ 6 3. Electraflame 3D Inset Assembly ··················································· 6 4. Installation Instructions ······························································· 7 5. Operating Instructions ································································ 9 6a. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1. Read the instructions carefully before using the appliance. 1.2. For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3. Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 4 in flammable paints, as these may catch fire. 1.13. Children shall not play with the appliance. 1.14. Children of less than 3 years should be kept away unless continuously supervised. 1.15. Cleaning and user maintenance shall not be made by children. 1.16.
-
Page 5: Technical Specifications
2. TECHNICAL SPECIFICATIONS Model No.: EF16NC Integra adaptation Supply Voltage: AC 220-240V 50Hz Maximum power consumption: 1.5KW Power for flame effect: 9.5W (LED 5.5W + Motor for flame 4W) Heat Output: Nominal heat output (Pnom): 1.5KW Minimum heat output(indicative) (Pmin): 0.75KW Maximum continuous heat output (Pmax): 1.5KW Auxiliary Electricity Consumption: At nominal heat output (elmax): 12.5W... -
Page 6: Parts And Hardware
3. PARTS AND HARDWARE 3.1 Unpacking the fire carefully, make sure that the appliance is intact with no signs of damage caused by transport and no part has been exposed to water. If in doubt, do not use the appliance and contact an authorised service centre. 3.2 Keep plastic wrapping away from children. - Page 7 PARTS Name Quantity Image Alternative Shelf ST 4* 10 Screws ∅8*40 Drywall Anchors Logs 1 set Small clear Faux crystals 1set Washed Natural Coal 1 set Remote AAA Battery Instruction Manual CastTec Ltd...
-
Page 8: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm ELECTRAFLAME 3D INSET ASSEMBLY CastTec Ltd... -
Page 9: Installation Instructions
5. INSTALLATION INSTRUCTIONS Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. 5.1 For best results, install out of direct sunlight. 5.2 THE APPLIANCE IS FITTED WITH AN INLET PLUG AND SOCKET UNDERNEATH THE RIGHT SIDE OF THE CASING. - Page 10 5.9 Attach fire front bar and Ash cover. 5.10 Decide upon fuel bed arrangement as instructions. See below. Fuel Bed Arrangement For an attractive fuel bed arrangement its recommended that you put a layer of the small clear Faux Crystals on the fuel bed before laying the outer items of choice.
-
Page 11: Operating Instructions
6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. -
Page 12: 6A. Manual Control Panel
6a. MANUAL CONTROL PANEL NOTE: The manual button controls basic functions, not a full range of controls. Use the remote hand set to carry out all functions. Main switch The main switch supplies power to all of the functions of the fireplace. This must be in the “ON”... -
Page 13: 6B. Remote Controls
Heater button Press once turns Fan on, and 10s later Low heat on. (Pilot lights illuminated●○) Press again turns on High heat. (Pilot lights illuminated ●●) Press third time turns heat off. 10s later fan off (Pilot lights illuminated ○○) There are 3 levels you can cycle through including the OFF setting. -
Page 14: Maintenance
Resetting the Thermal Cut Out 6b.1 The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device, which switches off the fire if, for any reason, the appliance overheats, e.g. when covered. If the heater stops operating while the flame effect continues working normally, this indicates that the E.S. -
Page 15: Others
Voltage Directive 2014/35/EU and the EMC standards EN 55014-1; EN 55014-2; EN 61000-3-2 and EN 61000-3-3 which covers the essential requirements of the European Electro Magnetic Compatibility 2014/30/EU. Cast Tec Ltd. East Side, Tyne Dock, South Shields NE33 5SP. Website: - Tel. 0191 4974280 www.casttec.co.uk...
