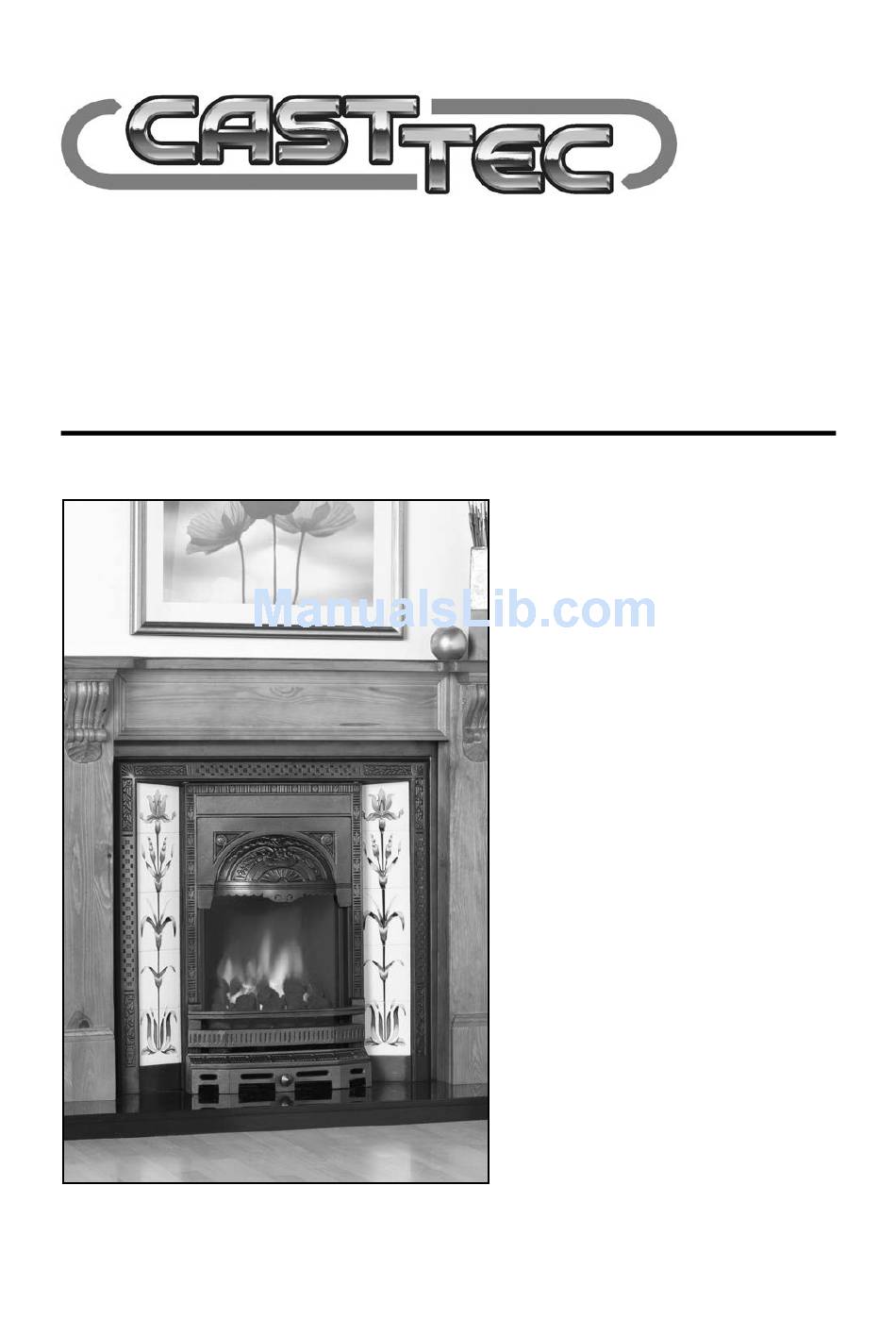

Integra HE Remote Control
Inset Live Fuel Effect Gas Fire
Installation and
Users Instructions
These instructions should be read by the
installer before installation and then should be
handed to the end user when the installation
is complete.
This is an official requirement and is the
responsibility of the fitter of this
appliance.
Having installed the appliance, the installer
should take the necessary steps to ensure
that the user fully understands how to operate
the appliance and is also made aware of the
fire's basic cleaning and maintenance
requirements.
Advertisement
Table of Contents
Related Manuals for Cast Tec Integra HE
Summary of Contents for Cast Tec Integra HE
- Page 1 Integra HE Remote Control Inset Live Fuel Effect Gas Fire Installation and Users Instructions These instructions should be read by the installer before installation and then should be handed to the end user when the installation is complete. This is an official requirement and is the responsibility of the fitter of this appliance.
-
Page 2: Table Of Contents
CONTENTS SECTION PAGE Notes for the Installer and End User Installation Requirements Installation Procedure - Standard 22” x 16” Installation Procedure - Decorative Cast Commissioning Technical Data Replacement Parts Trouble Shooting (GAS SAFE Engineer Only) 9 User Instructions Cleaning and Maintenance Fire Front Specifications Modular Coal Layout Instructions Guarantee... -
Page 3: Notes For The Installer And End User
NOTES FOR THE INSTALLER AND END USER This appliance has been designed, tested and manufactured to the British Standard BS 7977-1:2002 relating to Radiant Convector Gas Appliances and must be installed by a qualified Gas Safe Registered Installer in accordance with the Gas Safety (Installation and use) regulations 1994 and all other relevant standards. This appliance must be connected in accordance with the National Regulations. -
Page 4: Installation Requirements
INSTALLATION REQUIREMENTS This appliance must only be installed in Great Britain or Ireland. 1. This fire is a natural gas appliance and has been designed for use with the following applications: a) Class I - Conventional brick or stone chimney as used for a solid fuel fire with a cross sectional dimension of 225mm x 225mm (9”... -
Page 5: Installation Procedure - Standard 22" X 16
INSTALLATION PROCEDURE FOR STANDARD 22” X 16” OPENING 1. Carefully lift the appliance out of the packaging taking care not to damage the ceramic components in the separate carton. 2. Remove the magnetic trim and store to one side to prevent any damage. 5 x Machine Screws 3. - Page 6 INSTALLATION PROCEDURE FOR STANDARD 22” X 16” OPENING CONTINUED 9. When the burner tray has been removed, decide which Fixing Holes side of the appliance the gas supply will be entering the radiant box and remove the relevant blanking plate. The gas supply should be concealed as much as possible.
-
Page 7: Installation Procedure - Decorative Cast
INSTALLATION PROCEDURE FOR DECORATIVE CAST SURROUND 1. Install the decorative cast surround into the fireplace opening and ensure it is fully sealed including the open area above the fire (see Fig. 9). 2. Carefully lift the fire box out of the packaging taking care not to damage the ceramic components in the separate carton. -
Page 8: Commissioning
COMMISSIONING 1. Unscrew the inlet pressure test point sealing screw (Fig. 10) and fit a manometer. Consult the user instructions (page 12). Ignite the appliance and turn to the high position. 2. Take a pressure reading and consult the technical data (below) to establish the correct working pressure. -
Page 9: Trouble Shooting (Gas Safe Engineer Only)
TROUBLE SHOOTING (GAS SAFE ENGINEER ONLY) NOTE: The purpose of the Error code is to give some information as to the potential reason for the fire not starting rather than just no flame. The appearance of an error code does not mean there is necessary a fault with the control or the appliance, it could be external factors outside the control that could cause error codes to appear from time to time and they could just be a one off event , so please check and work through the suggested service actions below before considering changing the control box. - Page 10 TROUBLE SHOOTING (GAS SAFE ENGINEER ONLY) Code Comment Apperance Possible Cause Action TESC locked due to Red Led is Temporary air Reset control by pressing start button for 1 second and releasing. Then press again the same way failed ignition permanently on disturbance around pilot to attempt a normal start command.
- Page 11 TROUBLE SHOOTING (GAS SAFE ENGINEER ONLY) Code Comment Apperance Possible Cause Action Button (-) is shorted Check for contamination Clean as necessary. Replace switch panel as necessary if damaged or too contaminated. Reset and try again to other buttons / damage and replace disconnect wired control panel and try again –...
- Page 12 USERS INSTRUCTIONS Warnings All parts of the appliance become hot while running and should therefore be considered to be working surfaces. A suitable guard may be required to take account of special hazards that exist in nurseries and other places where there are young children, aged or infirm persons. Curtains are not to be placed directly above the appliance.
-
Page 13: User Instructions
USER INSTRUCTIONS Handset Ensure the Power Isolator Switch on the front corner of Fire Control is in the on position (I). Note: For safety reasons a button must be pressed and released for the command to be recognised. Keeping hold of the button when pressing (unless otherwise instructed) will not be recognised as a command press. Grasp around the handset to unlock its functions. -
Page 14: Users Instructions
USERS INSTRUCTIONS Operating instruction (Detailed) THE HANDSET AND CONTROLS SHOULD ALREADY BE PAIRED AND THE DAY AND TIME SET CORRECTLY. SHOULD ANY ADJUSTMENTS BE NECESSARY SEE INSTRUCTIONS BELOW: Setting the time Following pressing “SET” at paring above, the display will be as shown, as the time is not set yet and will progress automatically to the next screen shown below. - Page 15 USERS INSTRUCTIONS Paging the handset If you have misplaced the handset you can page it by pressing the + button only on the fire control for around 5 seconds. The handset will flash and make a noise to help you to locate it. Once you pick up the TESC it knows you hold it and so the sound stops.
- Page 16 USERS INSTRUCTIONS Snooze mode in Thermostatic mode The same thing as above can be done before or during a thermostatic mode operation (see below). Thermostatic mode only The handset has within it a thermostat sensor and this can be set so the fire will heat the room to match the temperature set in the handset.
-
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE It is recommend that this appliance is serviced at regular 12 monthly intervals. The chimney or flue should also be checked regularly to ensure that all products of combustion are entering the flue and there is no excessive build up of soot. It is the users responsibility to ensure that the appliance is kept in a clean serviceable condition. -
Page 18: Fire Front Specifications
FIRE FRONT SPECIFICATIONS Fire fronts are now available in many different designs and finishes. The user can now choose their own particular style of fire front to suit their individual fireplace setting, providing the fire front complies with the following dimensions - Fire Front - (X) Max: 210mm Min: 190mm... -
Page 19: Modular Coal Layout Instructions
MODULAR COAL LAYOUT INSTRUCTIONS CAUTION: The coals are extremely fragile and must be handled accordingly. Gloves should be worn and any inhalation of dust should be avoided. The coals must be kept away from children at all times. Never put additional coals on the fire. Never use coals other than those originally supplied, or genuine Legend Spare Parts. - Page 20 MODULAR COAL LAYOUT INSTRUCTIONS CONTINUED 5. Finally check that all the coal pieces are ‘nested’ together correctly (Fig. 28) and a close fit is achieved on the middle joint (this will stop gas surge through the gap). Fig. 28 It is very important that all the coals are used and arranged as shown in order to achieve the desired flame picture.
-
Page 24: Guarantee
GUARANTEE Your appliance is guaranteed for one year from proof of purchase. Should the appliance prove defective within that period we agree to repair or replace (at our discretion) the component or appliance provided that: 1. The user can produce a receipt for proof of purchase/installation. 2.
