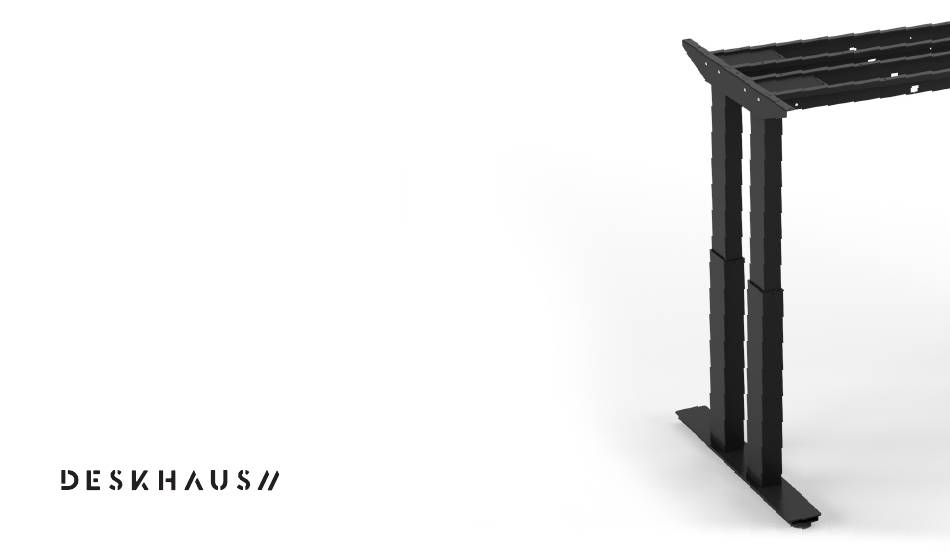

- Page 1 VERTEX PRO/4 P R O D U C T A S S E M B L Y I N S T R U C T I O N S VERTEX PRO/4...
- Page 2 Do not sit or stand on base or work surface. Do not open any components. Designed for a 10% duty cycle, two minutes on and eighteen minutes off. In the event of a power outage, or if the power cord is unplugged, a reset is required. VERTEX PRO/4...
-
Page 3: Tools Needed
VERTEX PRO/4 FASTENERS INCLUDED: PARTS 1. Column 2. J-Rail 3-4. Mini-J-Rail TOOLS NEEDED: 5. Top Support 6. Foot 7. Feet pads 8. Control box 9. Power Cord 10. Hand switch 11. M6x1.0 12mm Screw 12. M10x1.5 20 mm Screw VERTEX PRO/4... - Page 4 PARTS Column J-Rail Mini-J-Rail M6x1.0 12mm Screw ASSEMBLE COLUMNS TO J-RAILS Assemble using the M6x1.0 12mm length screws. These are the shorter screws that are included. (6 per column) VERTEX PRO/4...
- Page 5 PARTS Top Supports M6x1.0 12mm Screw ASSEMBLE TOP SUPPORTS TO COLUMNS Assemble using the M6x1.0 12mm length screws. These are the shorter screws that are included. (4 per top support) VERTEX PRO/4...
- Page 6 PARTS Foot M10 x 1.5 20mm Screw ASSEMBLE FEET TO COLUMNS Assemble using the M10x1.5 20mm length screws. These are the longer screws that are included. (2 per column) VERTEX PRO/4...
- Page 7 PARTS #10 7/8" Wood Screw FASTEN FRAME TO DESK SURFACE Assemble using the 7/8" length wood screws. (30 per frame) VERTEX PRO/4...
- Page 8 FASTEN CONTROL BOX AND HAND SWITCH TO DESK SURFACE Assemble using the 7/8" length wood screws. Make sure the control box and hand switch are fastened in a location where all the cables will connect without being in tension. VERTEX PRO/4...
-
Page 9: Very Important
4. At this point all of the columns should have power to them. Press and hold DOWN on the hand switch to initialize the columns as a group. (You should see the columns move slightly.) 5. Your columns are now ready for normal operation. VERTEX PRO/4... -
Page 10: Control Boxes
- Plug in power cord last. NOTE: SECURE ALL CABLES TO TABLE FRAME OR UNDERSIDE OF SURFACE TO AVOID DAMAGE DURING OPERATION. HAND SWITCH TO MOTORS TO CONTROL BOX TO CONTROL BOXES CONTROL BOX SLAVE BOX VERTEX PRO/4... - Page 11 Remove the Hand Switch and repeat the previous steps for the 2nd Control Box. 3. After both columns are reset, you can follow the original steps 1-5. POWER TO CONTROL BOX POWER TO CONTROL BOX WITH/HAND SWITCH WITHOUT/HAND SWITCH VERTEX PRO/4...
-
Page 12: Operation Information
The programmable hand switch also has the ability to save up to four different height positions. Repeat the reset process. The control box is programmed with a parameter file which controls the table legs’ lower and upper travel limits. Under no circumstance should a control box from one table be moved to another. VERTEX PRO/4... - Page 13 3. Change the height shown on the hand switch by pressing the UP or DOWN button to the desired height. Confirm by pressing the “S” button. To exit the menu without making a selection, wait until the height display appears again. VERTEX PRO/4...
-
Page 14: Troubleshooting
Max time limit is exceeded Control is activated automatically after approx. 9 minutes briefly and then stops Defective drive Contact customer service Defective drive Contact customer service VERTEX PRO/4... - Page 15 Plug cables into the control box and re-run table. M3-Defect M1-Over-current Collision resolve if necessary ➤ M2-Over-current Max load exceeded remove excess load from the table ➤ M3-Over-current If the problem persists, contact customer service VERTEX PRO/4...
- Page 16 NOTES NOTES VERTEX PRO/4...
