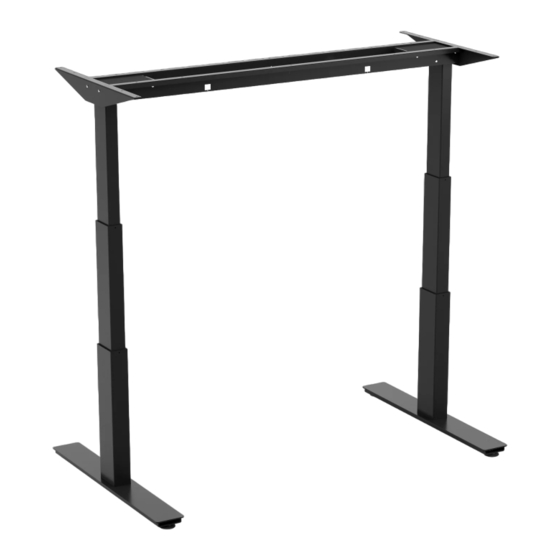

- Page 1 VERTEX 2T/C P R O D U C T A S S E M B L Y I N S T R U C T I O N S VERTEX 2T/C...
-
Page 2: Table Of Contents
VERTEX 2T/C FASTENERS INCLUDED: C-LEG VARIATION PARTS TOOLS NEEDED: 1. J-Rail 2. Column 3. Top Support 4. Foot 5. M6x1.0 12mm Screw 6. Hand switch 7. Control box 8. Power Cord 9. M10x1.5 20 mm Screw 10. Feet pads VERTEX 2T/C... -
Page 3: Parts Qty
PARTS Column J-Rail M6x1.0 12mm Screw ASSEMBLE COLUMNS TO J-RAIL Assemble using the M6x1.0 12mm length screws. These are the shorter screws that are included. (6 per column) VERTEX 2T/C... -
Page 4: Top Support
PARTS Top Supports M6x1.0 12mm Screw ASSEMBLE TOP SUPPORTS TO COLUMNS Assemble using the M6x1.0 12mm length screws. These are the shorter screws that are included. (2 per top support) VERTEX 2T/C... - Page 5 PARTS Foot M10 x 1.5 20mm Screw ASSEMBLE FEET TO COLUMNS Assemble using the M10x1.5 20mm length screws. These are the longer screws that are included. (2 per column) VERTEX 2T/C...
- Page 6 PARTS #10 7/8" Wood Screw FASTEN FRAME TO DESK SURFACE Assemble using the 7/8" length wood screws. (16 per frame) VERTEX 2T/C...
-
Page 7: Hand Switch
FASTEN CONTROL BOX AND HAND SWITCH TO DESK SURFACE Assemble using the 7/8" length wood screws. Make sure the control box and hand switch are fastened in a location where all the cables will connect without being in tension. VERTEX 2T/C... - Page 8 - Plug in power cord last. NOTE: SECURE ALL CABLES TO TABLE FRAME OR UNDERSIDE OF SURFACE TO AVOID DAMAGE DURING OPERATION. PARTS Control Box Hand switch VERTEX 2T/C...
- Page 9 The control box is programmed with a parameter file which controls the table legs’ lower and upper travel limits. Under no circumstance should a control box from one table be moved to another. NORMAL HAND SWITCH OPERATION (for all hand switch types) VERTEX 2T/C...
- Page 10 3. Change the height shown on the hand switch by pressing the UP or DOWN button to the desired height. Confirm by pressing the “S” button. To exit the menu without making a selection, wait until the height display appears again. VERTEX 2T/C...
- Page 11 Max time limit is exceeded Control is activated automatically after approx. 9 minutes briefly and then stops Defective drive Contact customer service Defective drive Contact customer service VERTEX 2T/C...
- Page 12 Plug cables into the control box and re-run table. M3-Defect M1-Over-current Collision resolve if necessary ➤ M2-Over-current Max load exceeded remove excess load from the table ➤ M3-Over-current If the problem persists, contact customer service VERTEX 2T/C...
- Page 13 W W W . D E S K . H A U S...
