Summary of Contents for DESKHAUS APEX PRO/6

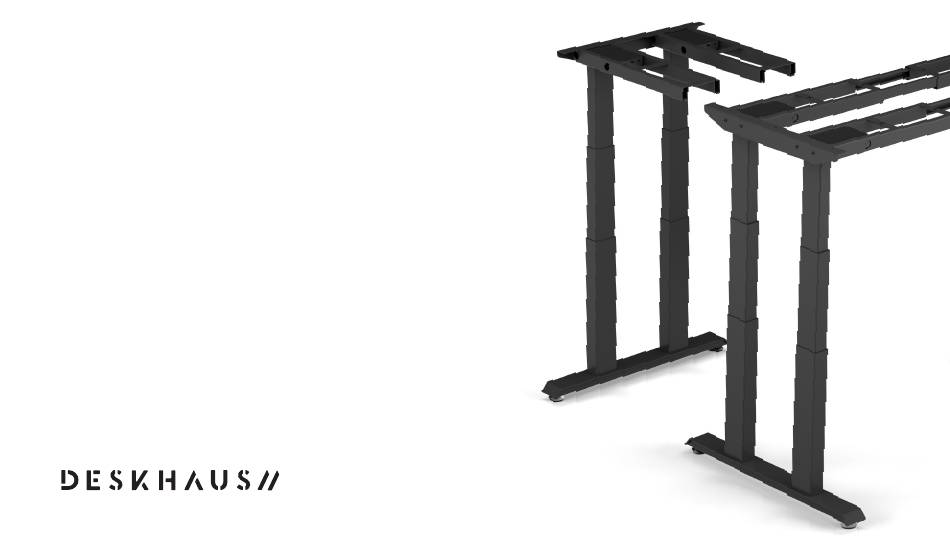

- Page 1 APEX PRO/6 P R O D U C T A S S E M B L Y I N S T R U C T I O N S APEX PRO/6...
- Page 2 Do not sit or stand on base or work surface. Do not open any components. Designed for a 10% duty cycle, two minutes on and eighteen minutes off. In the event of a power outage, or if the power cord is unplugged, a reset is required. APEX PRO/6...
-
Page 3: Parts Included
APEX PRO/6 PARTS INCLUDED: M6 14mm M6 10mm 7/8 WOOD SCREW 16mm WOOD SCREW 4mm HEX KEY CABLE TIES PARTS 1. Column 2. Top Support 3. Foot 4. Collapsing Channel TOOLS NEEDED: 5. Fixed Channel Jumper Control box Hand switch... - Page 4 These are the shorter screws that are included. (4 per column) Notes *You may need to extend the channels out to expose the screw holes when attaching columns. *Please note orientation of all screw holes making sure channels are not upside down. APEX PRO/6...
- Page 5 IMPORTANT: Do not tighten machine screws fully until the end of each step to allow for proper centering. Top Supports M6 14mm Screw ASSEMBLE TOP SUPPORTS TO COLUMNS Assemble using the M6 14mm length screws. These are the longer screws that are included. (2 per top support) APEX PRO/6...
- Page 6 (23 screws total) Secure control boxes with 16mm wood screws (4 screws total) *Notes - Center base on desk surface leaving 2" on right and left sides. Pre-drilling holes is required for solid wood tops and optional for HPL tops. APEX PRO/6...
- Page 7 IMPORTANT: Do not tighten machine screws fully until the end of each step to allow for proper centering. Foot M6 14mm Screw CONNECT FEET TO COLUMNS Secure feet to columns using M6 14mm Screws. These are the longer screws that are included. (8 per foot) APEX PRO/6...
- Page 8 Assemble using the M6 10mm Screws. These are the shorter screws that are included. (8 per channel) Make sure the control box and hand switch are fastened in a location where all the cables will connect without being in tension. APEX PRO/6...
- Page 9 PARTS Hand Switch Wood Screw (Included with hand switch) ATTACH HAND SWITCH Secure with (2) wood screws. These are the screws that are included with your hand switch. hand switch (Included with hand switch) APEX PRO/6...
-
Page 10: Connect Power Cords
*Note - Remove rubber plugs from control boxes to expose connection points. Connect hand switch to control box. Connect (6) column power cords to control box. Connect power cord to control box A and then control box B. *Note - Use column cable extensions if needed. APEX PRO/6... -
Page 11: Operation Information
Then press the paddle down again for 5 seconds until the display shows "Reset" and returns back to a normal digital number to finish the reset. Your handset is now ready to use. APEX PRO/6... -
Page 12: Additional Features
If the display reads an error code, hold the the down button down until display reads "Reset" then release. Hold the down button again until the base reaches its lowest height and displays the height number readout. Reset is now complete. (For a list of Error codes see our Troubleshooting on the next two pages.) APEX PRO/6... -
Page 13: Troubleshooting
If the display reads an error code, hold the the down button down until display reads "Reset" then release. Hold the down button Column plugged into M6 Port again until the base reaches its lowest height and displays the height number readout. Reset is now complete. APEX PRO/6... - Page 14 NOTES NOTES APEX PRO/6...
- Page 15 W W W . D E S K . H A U S...
