Summary of Contents for DESKHAUS APEX PROMAX/6

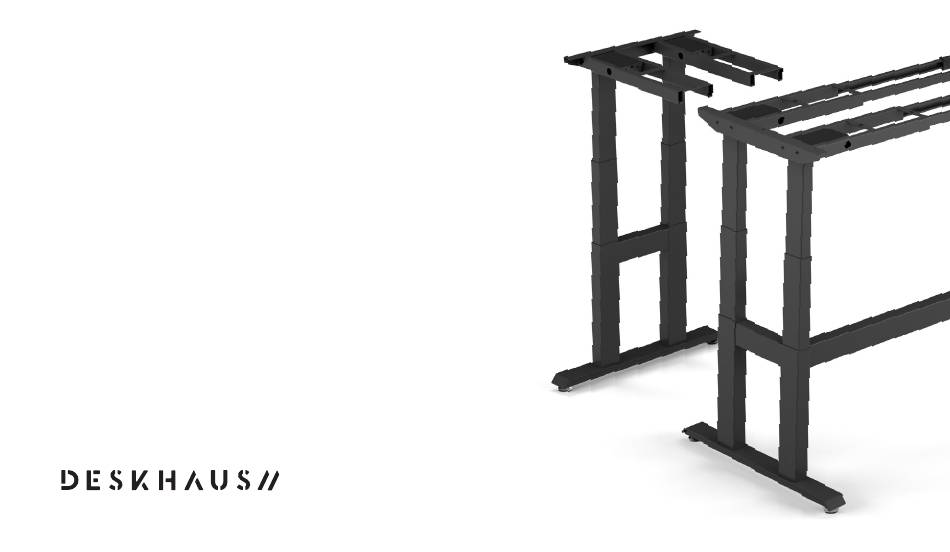

- Page 1 APEX PROMAX/6 P R O D U C T A S S E M B L Y I N S T R U C T I O N S APEX PROMAX/6...
- Page 2 Do not sit or stand on base or work surface. Do not open any components. Designed for a 10% duty cycle, two minutes on and eighteen minutes off. In the event of a power outage, or if the power cord is unplugged, a reset is required. APEX PROMAX/6...
-
Page 3: Parts Included
APEX PROMAX/6 PARTS INCLUDED: PARTS M6 14mm M6 10mm 7/8 WOOD SCREW 16mm WOOD SCREW M8 12mm 4mm HEX KEY CABLE TIES 1. Column 2. Top Supports 3. Foot 4. Collapsing Channel 5. Fixed Channel 6. Short Cross Bar 7. Long Cross Bar... - Page 4 These are the shorter screws that are included. (4 per column) *Please note orientation of all screw holes Notes making sure channels are not upside down. *You need to separate the channels and attach each of the 4 columns individually APEX PROMAX/6...
- Page 5 IMPORTANT: Do not tighten machine screws fully until the end of each step to allow for proper centering. Short Cross Bar M8 12mm Screw ASSEMBLE SHORT CROSS BARS BETWEEN COLUMNS Assemble using the M8 12mm length screws. (2 per side) *Note- You will need a socket extension to reach the bolts inside the cross bar APEX PROMAX/6...
- Page 6 IMPORTANT: Do not tighten machine screws fully until the end of each step to allow for proper centering. Foot Top Supports M6 14mm Screw CONNECT FEET AND TOP SUPPORTS TO COLUMNS Secure feet to columns using M6 14mm Screws. These are the longer screws that are included. (8 per foot) ( 4 per top support) APEX PROMAX/6...
- Page 7 IMPORTANT: Do not tighten machine screws fully until the end of each step to allow for proper centering. Connector Bar Long M8 12mm Screw CONNECT LONG CROSS BAR TO COLUMNS Secure long cross bar using M8 12mm Screws. APEX PROMAX/6...
- Page 8 (23 screws total) Secure control units with 16mm wood screws (4 screws total) *Notes - Center base on desk surface leaving 2" on right and left sides. Pre-drilling holes is required for solid wood tops and optional for HPL tops. APEX PROMAX/6...
- Page 9 Make sure the control box and hand switch are fastened in a location where all the cables will connect without being in tension. *Note - Consider placement of control box and plan for cable management of all cables including hand switch before locking channels APEX PROMAX/6...
- Page 10 PARTS Hand Switch Wood Screw (Included with hand switch) ATTACH HAND SWITCH Secure with (2) wood screws. These are the screws that are included with your hand switch. hand switch (Included with hand switch) APEX PROMAX/6...
-
Page 11: Connect Power Cords
*Note - Remove rubber plugs from control boxes to expose connection points. Connect hand switch to control box. Connect (6) column power cords to control box. Connect power cord to control box A and then control box B. *Note - Use column cable extensions if needed. APEX PROMAX/6... -
Page 12: Operation Information
Then press the paddle down again for 5 seconds until the display shows "Reset" and returns back to a normal digital number to finish the reset. Your handset is now ready to use. APEX PROMAX/6... -
Page 13: Additional Features
If the display reads an error code, hold the the down button down until display reads "Reset" then release. Hold the down button again until the base reaches its lowest height and displays the height number readout. Reset is now complete. (For a list of Error codes see our Troubleshooting on the next two pages.) APEX PROMAX/6... -
Page 14: Troubleshooting
If the display reads an error code, hold the the down button down until display reads "Reset" then release. Hold the down button again until the base reaches its lowest height and displays the height number readout. Reset is now complete. Column plugged into M6 Port APEX PROMAX/6... - Page 15 W W W . D E S K . H A U S...
