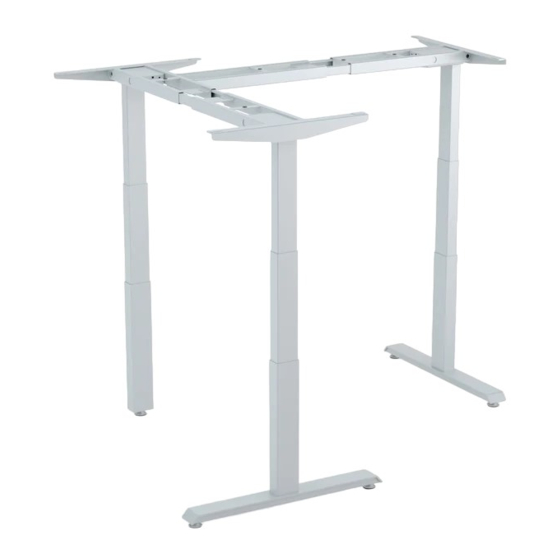

- Page 1 APEX 3T/C P R O D U C T A S S E M B L Y I N S T R U C T I O N S APEX 3T/C...
- Page 2 Do not sit or stand on base or work surface. Do not open any components. Designed for a 10% duty cycle, two minutes on and eighteen minutes off. In the event of a power outage, or if the power cord is unplugged, a reset is required. APEX 3T/C...
-
Page 3: Parts Included
APEX 3T/C PARTS INCLUDED: C-LEG VARIATION M6 14mm M6 10mm 7/8 WOOD SCREW 16mm WOOD SCREW 4mm HEX KEY CABLE TIES TOOLS NEEDED: PARTS 1. Column 2. Top Support 3. Foot 4. Collapsing Channel Control box Hand switch Power Cord... - Page 4 These are the shorter screws that are included. (4 per column) Notes *You may need to extend the channels out to expose the screw holes when attaching columns. *Please note orientation of all screw holes making sure channels are not upside down. APEX 3T/C...
- Page 5 IMPORTANT: Do not tighten machine screws fully until the end of each step to allow for proper centering. C-LEG Foot VARIATION M6 14mm Screw CONNECT FEET TO COLUMNS Secure feet to columns using M6 14mm Screws. These are the longer screws that are included. (4 per foot) APEX 3T/C...
- Page 6 IMPORTANT: Do not tighten machine screws fully until the end of each step to allow for proper centering. C-LEG VARIATION Top Supports M6 14mm Screw ASSEMBLE TOP SUPPORTS TO COLUMNS Assemble using the M6 14mm length screws. These are the longer screws that are included. (2 per top support) APEX 3T/C...
- Page 7 (11 screws total) Secure control unit with 16mm wood screws (2 screws total) *Notes - Center base on desk surface leaving 2" on right and left sides. Pre-drilling holes is required for solid wood tops and optional for HPL tops. APEX 3T/C...
- Page 8 Assemble using the M6 10mm Screws. These are the shorter screws that are included. (8 per channel) Make sure the control box and hand switch are fastened in a location where all the cables will connect without being in tension. APEX 3T/C...
- Page 9 ATTACH CONTROL BOX & HAND SWITCH Secure control box with 16mm wood screws (2 screws total) Secure hand switch with the (2) wood screws that are included with your hand switch. hand switch (Included with hand switch) APEX 3T/C...
-
Page 10: Connect Power Cords
CONNECT POWER CORDS Connect hand switch to control box. Connect (4) column power cords to control box. Connect power cord to control box. *Note - Use column cable extensions if needed. APEX 3T/C... -
Page 11: Operation Information
Then press the paddle down again for 5 seconds until the display shows "Reset" and returns back to a normal digital number to finish the reset. Your handset is now ready to use. APEX 3T/C... -
Page 12: Additional Features
If the display reads an error code, hold the the down button down until display reads "Reset" then release. Hold the down button again until the base reaches its lowest height and displays the height number readout. Reset is now complete. (For a list of Error codes see our Troubleshooting on the next two pages.) APEX 3T/C... -
Page 13: Troubleshooting
If the display reads an error code, hold the the down button down until display reads "Reset" then release. Hold the down button Column plugged into M6 Port again until the base reaches its lowest height and displays the height number readout. Reset is now complete. APEX 3T/C... - Page 14 NOTES NOTES APEX 3T/C...
- Page 15 W W W . D E S K . H A U S...
