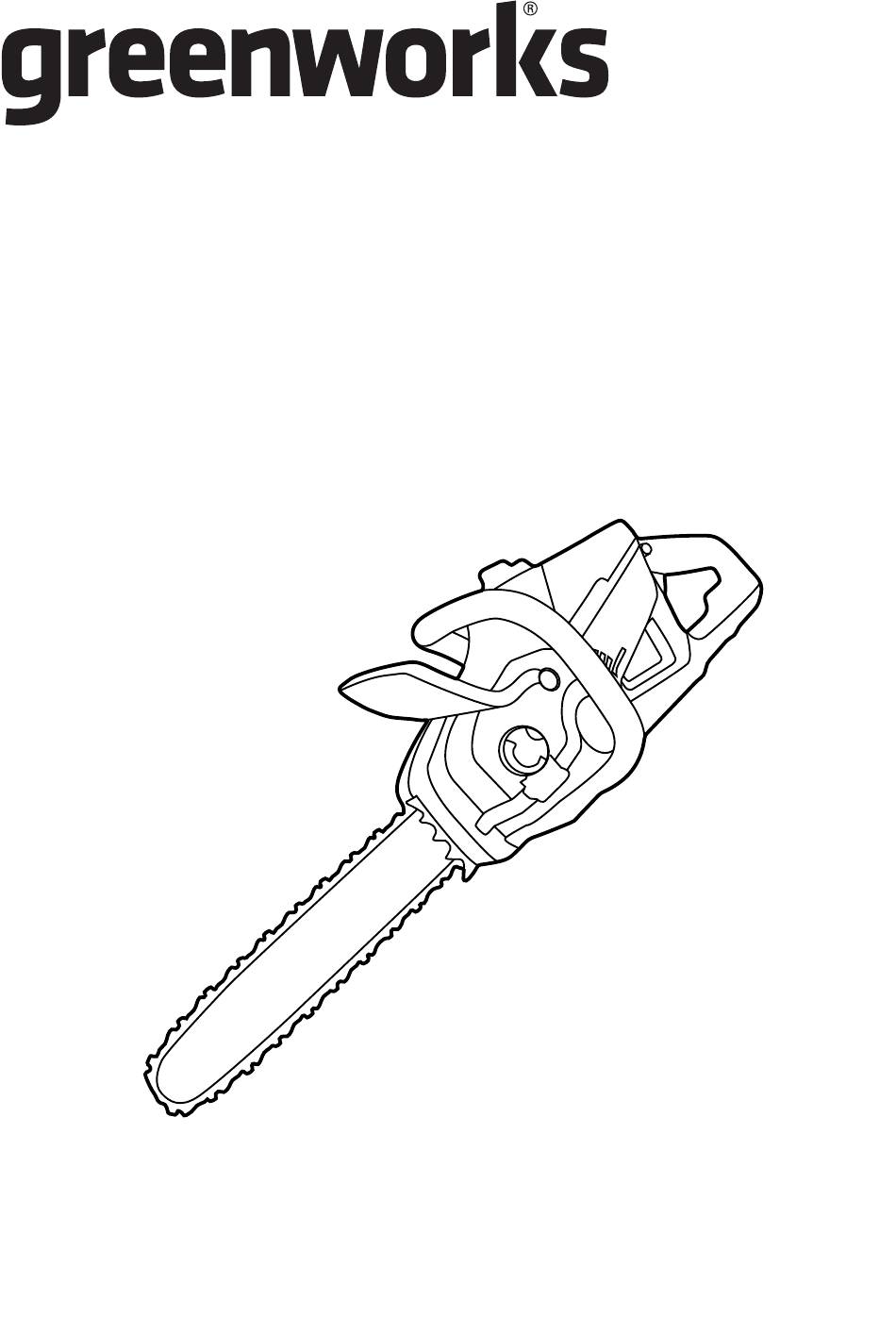

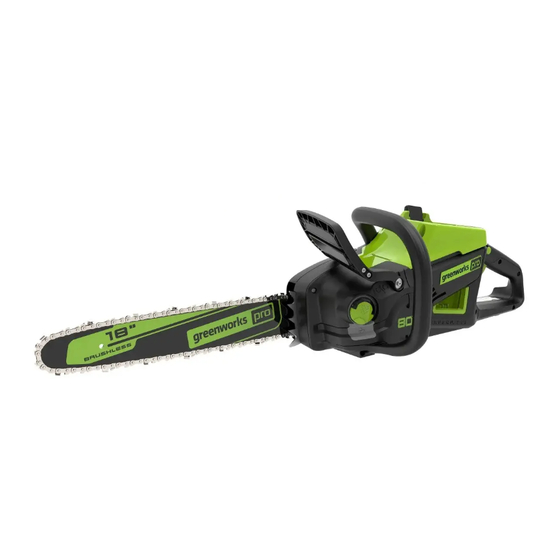

- Page 1 CHAINSAW OPERATOR MANUAL SCIE À CHAÎNE MANUEL D’OPÉRATEUR SIERRA DE CADENA MANUAL DEL OPERADOR www.greenworkstools.com CSB410...
-
Page 3: Table Of Contents
English Introduction......4 Stop the product......11 Kickback........11 Product description......4 Pull stroke and push stroke..12 Intended use........4 Fell a tree........12 Product overview......4 Limb a tree........14 Symbols on the product....4 Buck a log........14 California Proposition 65....4 Maintenance...... -
Page 4: Introduction
English INTRODUCTION SYMBOLS ON THE PRODUCT WARNING Symbol Explanation READ AND UNDERSTAND THE SAFETY Direct current - Type or charac- CHAPTER BEFORE YOU ASSEMBLE THE teristic of current. PRODUCT. Important Safety Precautions. PRODUCT DESCRIPTION Carefully read and understand all This product is a battery-operated chainsaw with an instructions before operating the electrical motor. -
Page 5: General Product Safety Warnings
English • When operating a product outdoors, use an CAUTION extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of THERE IS A RISK OF DAMAGE TO THE electric shock. PRODUCT, OTHER MATERIALS, OR THE •... -
Page 6: Safety Instructions For Chain Saws
English • Disconnect the plug from the power source or temperature above 130 °C (265 °F) may cause and/or remove the BATTERY pack, if explosion. detachable, from the product before making any • Follow all charging instructions and do adjustments, changing accessories, or storing not charge the BATTERY pack or product products. -
Page 7: Safety Features On The Product
English • Use extreme caution when cutting brush and Kickback forces can be controlled by the operator if saplings. The slender material may catch the saw proper precautions are taken. Do not let go of the chain and be whipped toward you or pull you off chain saw. -
Page 8: Battery Safety
English Press down on the trigger lockout and confirm that it returns to its initial position when released. Ensure that the trigger locks in the idle position when the trigger lockout is released. Confirm that the chain brake engages when the guide bar hits the stump. -
Page 9: Assembly
English • Neglecting regular product maintenance can reduce the product's lifespan and increase the risk of accidents. • Specialized training is necessary for all servicing and repair work, particularly for the safety hardware on the product. If any checks in this operator's manual are not approved after the maintenance, contact your authorized service center for further assistance. -
Page 10: Operation
English WARNING ENSURE THAT THE BATTERY IS NOT INSERTED IN THE PRODUCT BEFORE ADDING BAR AND CHAIN OIL. Place the product on a flat and stable surface, ensuring the oil cap is facing upward. Flip up the oil cap lever and rotate it Note: When starting the product with a new chain, it is counterclockwise to detach the oil cap. -
Page 11: Start The Product
English Once the product has started, release the trigger CAUTION lockout, allowing it to return to its initial position. IF THE BATTERY DOES NOT MOVE EASILY INTO THE BATTERY COMPARTMENT, THE BATTERY STOP THE PRODUCT IS NOT INSTALLED CORRECTLY. THIS CAN Release the trigger. -
Page 12: Pull Stroke And Push Stroke
English WARNING IF THE SAW CHAIN IS CAUGHT IN THE TRUNK, THE PRODUCT CAN KICKBACK TOWARD YOU. HOLD THE PRODUCT TIGHTLY AND MAKE SURE THAT THE KICKBACK ZONE OF THE GUIDE BAR DOES NOT MAKE CONTACT WITH AN OBJECT. • Kickback occurs if the kickback zone of the guide bar contacts an object. - Page 13 English felling hinge must be equal and a minimum of 10% of the tree diameter. WARNING IF THE FELLING HINGE IS INCORRECT OR TOO THIN, YOU HAVE NO CONTROL OVER THE FELLING DIRECTION. WARNING BE CAREFUL WHEN YOU CUT WITH THE GUIDE BAR TIP.
-
Page 14: Limb A Tree
English Put a wedge in the kerf (slit or notch made by the chainsaw) straight from behind. WARNING Cut off the corner to make the tree fall. IF YOU ARE NOT SURE ABOUT HOW Note: If the tree does not fall, hit the wedge until TO CUT THE BRANCH, CONSULT it does. -
Page 15: Maintenance
English It is important to make sure your footing is secure, and your weight is evenly distributed. If possible, lift the log and hold it with branches, logs or chock. Obey the instructions below: Cut a log on the ground Cut through the log using the pull stroke. -
Page 16: Adjust The Chain Tension
English • Clean the battery and battery charger with a dry cloth. Keep the battery guide tracks clean. • Prior to inserting the battery into the battery charger, ensure that the terminals on both the battery and the battery charger are clean. ADJUST THE CHAIN TENSION 3-6 mm WARNING... -
Page 17: Guide Bar Maintenance
English Examine if there are burrs on the edges of the guide bar. Remove the burrs using a file. Turn the product around and remove material on the other side. Clean the groove in the guide bar. Make sure that all cutting teeth are the same length. -
Page 18: Transportation, Storage, And Disposal
English Problem Possible cause Solution TRANSPORTATION, STORAGE, AND DISPOSAL Remove the Contamination causes a block- guide bar and TRANSPORTATION AND STORAGE age of the dis- clean the dis- • Follow special packaging and labeling requirements charge port. charge port. for commercial transportation, including by third Contamination Clean the oil parties and forwarding agents. -
Page 19: Technical Data
English Problem Possible cause Solution Problem Possible cause Solution The motor runs Sharpen or re- Lubricate the The chain is and the chain place the saw chain to de- dull. rotates, but the chain. crease the fric- chain does not The chain is not tion. -
Page 20: Limited Warranty
It is the purchaser’s responsibility to Product storage 32°F (0°C) - 113°F pay transportation charges for any part submitted for (45°C) replacement under this warranty unless such return is requested in writing by Greenworks. Product operation 32°F (0°C) - 113°F (45°C) USA address: Battery charging 39°F (4°C) - 104°F... - Page 21 www.greenworkstools.com P0805393-00 Rev B...
