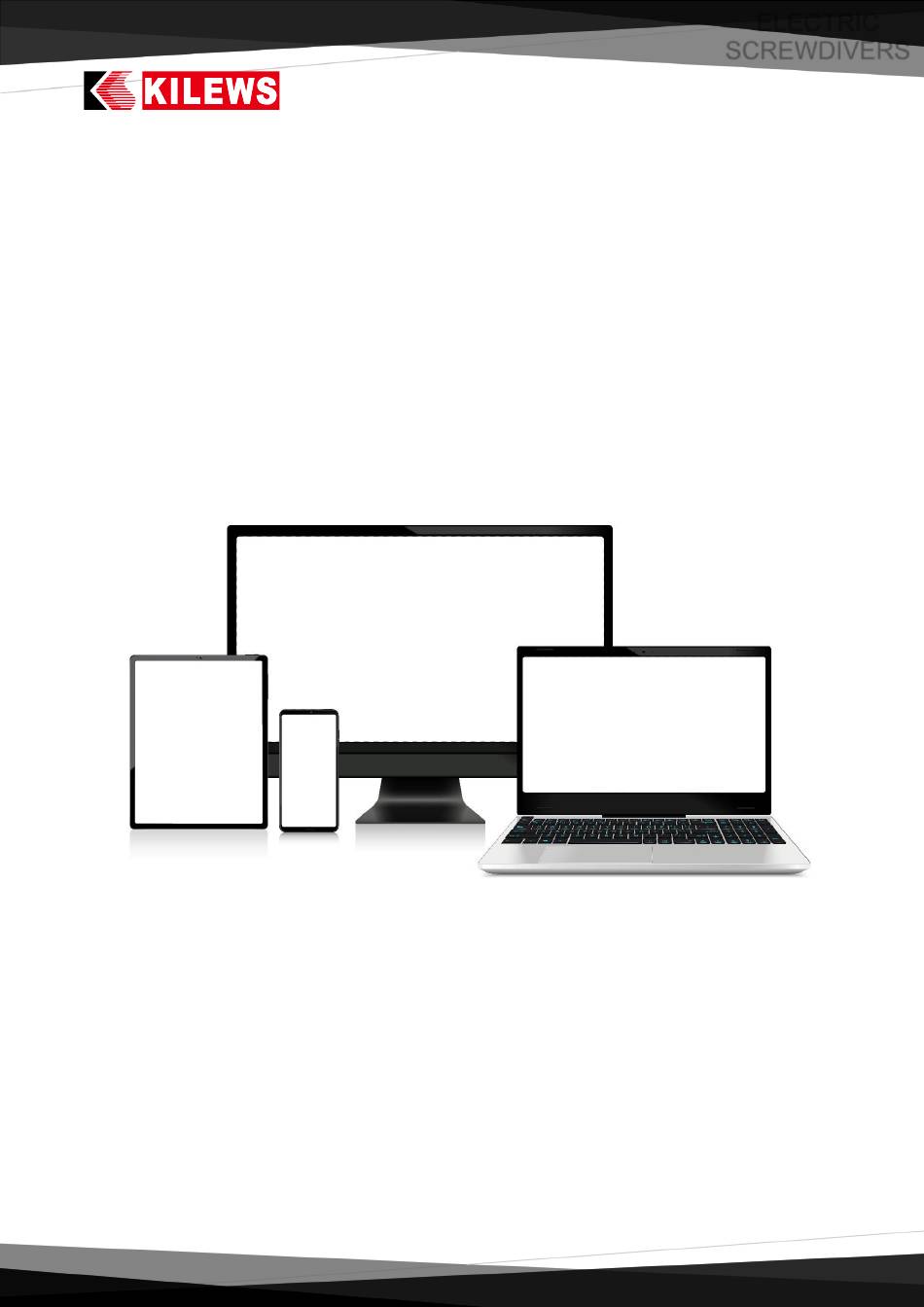

- Page 1 ELECTRIC SCREWDIVERS iDAS System Operation Manual Y2F210-45-003 2024/12/27...
-
Page 2: Table Of Contents
ELECTRIC SCREWDIVERS Tabel of Contents ① User Guide .............................. 3 ② System Requirements ......................... 4 ③ Hardware ..............................5 ④ Controller Setting ........................... 6 1. LAN-DHCP (IP address assigned automatically) ............. 6 2. LAN-Static (Enter the fixed IP address yourself) ............. 7 ⑤... -
Page 3: ① User Guide
ELECTRIC SCREWDIVERS ① User Guide This manual describes how to quickly operate the “iDAS” and get started with the controller. Diverse and well rounded operation interface, simple and user-friendly design allows users to get quick understanding, and this system can simultaneously work with the controller under the brand. -
Page 4: ② System Requirements
ELECTRIC SCREWDIVERS ② System Requirements ⚫ Windows 10 is recommended ⚫ Hardware memory at least 768MB/2GBHz processor ⚫ At least 2GB hard disk ⚫ Recommended at least 16-bit color and 1024x768 screen resolution ⚫ .NET Framework 4.0 or above must be installed Page 4 of 25... -
Page 5: ③ Hardware
ELECTRIC SCREWDIVERS ③ Hardware 1. The following must be prepared before operating this system: ⚫ The Controller ⚫ A web browser that matches this operating system ⚫ For controller network connection, please refer to the next page ○ ” Controller Settings” ○... -
Page 6: ④ Controller Setting
ELECTRIC SCREWDIVERS ④ Controller Setting Connect with static IP or dynamic IP. The setting method is as follows: →Before entering the system, you must first set the date format of the computer system to "YYYY/MM/DD". →Power on the controller → click "Setup". →Enter the default password: 0000→Click "Controller"→"Network Settings- Network Mode: LAN-DHCP, LAN-Static". -
Page 7: Lan-Static (Enter The Fixed Ip Address Yourself)
ELECTRIC SCREWDIVERS 2. LAN-Static (Enter the fixed IP address yourself) Static IP: Use a Ethernet cable to connect the controller to the PC. Controller settings: Step 1: Select "LAN-Static" for the Network mode. Step 2: Enter "192.168.0.1XX" and press "Save" for Set Static IP. Computer network settings: Step 3: Click the network symbol ( )→Right-click to “Open... - Page 8 ELECTRIC SCREWDIVERS Step 4: Ethernet→Change adapter options→Network connection, select “Ethernet” , right-click “Properties”. Page 8 of 25...
- Page 9 ELECTRIC SCREWDIVERS Step 5: →Double-click on Internet Protocol version 4 (TCP/IPv4) to enter settings. →Enter the static IP (same area network as the controller address 192.168.0.1XX) and click OK. NOTE: When changing the computer IP, please do not connect to the Internet, including wireless networks.
-
Page 10: ⑤ System Screen Introduction
ELECTRIC SCREWDIVERS ⑤ System Screen Introduction NOTE: After entering for the first time, you must press "Load" to read the controller setting parameters into the system. ○ Ａ Please log out the logged in account ○ Ｂ Company and system name ○... -
Page 11: Normal Job Manegement
ELECTRIC SCREWDIVERS 1. Normal Job Manegement ⚫ : Return to the home page. □ ＋ : Enter Normal Job-Sequence Management. ⚫ Add Seq ⚫ Total Jobs: The total number of jobs created so far. ⚫ New: Click to add a new job. ⚫... - Page 12 ELECTRIC SCREWDIVERS Seq name: Displays sequence name. Target Type: Displays sequence target. TR: Displays the total number of screws tightened in the sequence. Enable: The sequence will only be executed if checked (can be checked repeatedly). Up/Down: Sort the sequence in queue. Setting: Set the sequence parameters.
-
Page 13: Advanced Job Management
ELECTRIC SCREWDIVERS 2. Advanced Job Management Execute New, Edit, Copy, Del and Add Seq. □ ＋ : Enter Advanced Job – Sequence Management. ⚫ Add Seq The difference from Normal Job is that there is an "Add step" in Sequence Management. -
Page 14: Io Input
ELECTRIC SCREWDIVERS 3. IO Input ⚫ Job: Start by selecting the work you want to perform. ⚫ New: Create an event and select events and signals. ⚫ Edit: Edit events and signals. ⚫ Copy: Copy events and signals. ⚫ Del: Delete events and signals. ⚫... -
Page 15: Io Output
ELECTRIC SCREWDIVERS 4. IO Output Perform New, Edit, Copy, Del, and Unified the selected settings on the output work. Note: Tool Running signal, Tool Trigger signal, Reverse, only has the screwdriver start output single choice. Page 15 of 25... -
Page 16: Operation
ELECTRIC SCREWDIVERS 5. Operation Job: Displays the name of the currently executed job. Sequence: Displays the name of the currently executed sequence. Screws: Display the current number of screw number/ total screws number. TORQUE: Displays the tightening torque. ANGLE: Displays the total angle of the screwdriver turning. RESULT: Displays the tightening status. -
Page 17: Data
ELECTRIC SCREWDIVERS 6. Data ○ History: Historical record data is displayed below. Export Data: A time range and export the data (.CSV) can be selected. ○ B Displays the historical record data. ○ C Historical record data can be filtrated and display it in specified status. 7. -
Page 18: Setting
ELECTRIC SCREWDIVERS 8. Setting ➢ Controller Setting: (Please refer to the controller user manual) ➢ System Setting: Password: The password of the system and controller can be changed, the length is 4~10 characters (only numbers are supported). System Date(UTC): The system time (year, month, day, hour and minute) can be adjusted. - Page 19 ELECTRIC SCREWDIVERS ➢ Barcode Setting: (Please refer to the controller user manual) After scanning the barcode, you can set the barcode judgment scope and Barcode Mode, After selecting the corresponding job, the storage will be displayed in the barcode setting form. Already created barcodes can also be deleted.
- Page 20 ELECTRIC SCREWDIVERS ➢ Connection Setting: Number of connections: Enter the maximum number of controllers that can be connected to this system and press Save. Guest password: Enter the new password and confirm it and press Save. Agent Mode: Select the type of Agent and click Save. Agent Server IP: Enter the IP of the current controller and press Save.
- Page 21 ELECTRIC SCREWDIVERS Note: ➔ To set it as the Server controller, make sure that both Client and Server are checked. ➔ After setting to Server, the Agent option will appear on the home page. ➔ After setting to Server, the Agent option will appear on the home page. ➔...
- Page 22 ➢ iDAS: Current iDAS Version: Displays the current iDAS version. Match Controller Version: Corresponding controller version. Upload file: Select the .pack file of the software upgrade and click Update.
-
Page 23: Command
ELECTRIC SCREWDIVERS 9. Command Get Job: When pressed, the current Job ID, Seq ID, and Step ID will be displayed. Switch Job: Switch the job to be executed and then press "Get Job" and display the Job ID, Seq ID, and Step ID. Page 23 of 25... -
Page 24: Agent
ELECTRIC SCREWDIVERS 10. Agent You need to set up the Server first and then the Agent option will appear on the home page before you can enter. Displays the configured Client and Server, and display the tightening status in real time. You can click on any controller in the list and press Open to enter the corresponding system. -
Page 25: ⑥ Statement
ELECTRIC SCREWDIVERS ⑥ Statement Reminder again, please follow the relevant regulations and the international practice of the Internet. Never do anything illegal or harm to the company in any illegal way. You may not use this service to engage in violations of other's rights or illegal activities: Please acknowledge you have ownership for all your photos and texts.
