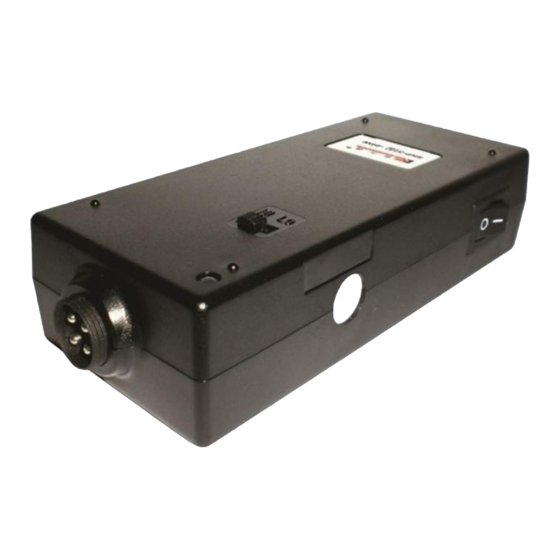

- Page 1 電動起子控制器操作手冊 OPERATION AND MAINTENANCE MANUAL SKP-32BC-60WN （In: AC 100~240V Out: DC 24V / 32V） 奇力速工業股份有限公司 KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F096-2-001...
- Page 2 WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator. Failure to observe the following warnings could result in injury.
-
Page 3: Important Safety Instructions
Important Safety Instructions WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
- Page 5 4. Do not near oil, chemical materials or heated objects, also please be alert not to scratch the power cord by sharp object. 5. This type of Controller can only be applied to Kilews Electric Screwdriver with Counter. Do not use Electric Screwdriver Controller on other types of machinery.
-
Page 6: Grounding Instructions
10. We emphasize that the power supply should be placed in stable, fixed location. SAVE THESE INSTRUCTION NOTICE The use of other than genuine KILEWS replacement parts may result in decreased controller performance and increased maintenance, and may invalidate all warranties. -
Page 7: Specifications
Specifications Model SKP-32BC-60WN Input Voltage 100 ~240VAC Downstream Output DC 24V/32V Voltage Power Consumption Outside 145*60*35(mm) Dimensions(mm) Weight(g) 250g SKD-BC203L；SKD-BC207L；SKD-BC210L SKD-BC512L；SKD-BC519L SKD-BC512P；SKD-BC519P Suitable Model SKD-BN203L；SKD-BN207L；SKD-BN210L SKD-BN512L；SKD-BN519L SKD-BN512P；SKD-BN519P Servicing Maintenance and Inspection : 1. The controller must be operated in top condition, one day working hour must be not more than eight hours. - Page 8 CAUTION 1. The use of other than genuine KILEWS replacement parts may Result in decreased tool performance and increased maintenance, and may invalidate all warranties. 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center.
- Page 9 2. 使用電源時請確定電流回路與安全開關裝置，並同時將地線接妥。 3. 電動螺絲起子控制器勿置重物或堆積物品，且保持在適當的溫度與濕度狀態下工作。 4. 勿將電動螺絲起子控制器放在通風不良之室內，或暴露在塵埃和金屬屑中 5. 勿將電動螺絲起子控制器放在高溫潮濕的環境或易燃氣體的地方。 6. 勿將電動螺絲起子控制器裝置在高處，應放于安全、平穩、固定的位置，以防止掉落的危險。 7. 不可用電源線拉提電動螺絲起子控制器，或將電源線從插座上猛拉開。 注 意 1、此控制器請搭配整組的專用電動起子使用。 2、此控制器請配合 KILEWS DC 低壓電動起子使用，控制器若搭配非 KILEWS 起子使用，以及使用非 KILEWS 原廠的零配件維修，而造成控制器發生故障或品質不良，導致一切保證失效本廠恕不負責。 操 作 須 知 1、 當插入或拔開起子連接線和電源線之插頭時，需抓緊電纜線之插頭部分。 2、 請勿用力拉扯電纜線，或使其靠近油 、化學物質或熱的物體，同時也注意不要讓電纜線在工作中刮 磨到銳利的物品。 3、 此型控制器，只能專門供 KILEWS 電動起子使用，勿將電動螺絲起子控制器使用於其他機械。 4、 假如控制器過熱，或負載使用電流超過保險絲最大額定電流時，快速型保險絲會自動熔斷，切斷電源， 持續跳脫或開關動作不正常時，請立即停止操作，並將電動螺絲起子控制器送回修理。...
- Page 10 接 地 說 明 電動螺絲起子控制器使用時應接地以免操作者觸電。本控制器配有三條導線及三腳接地型插頭以適合 接地型插座用，插座本身的接地線必須確實和電源設備地線相連接才有接地作用。電線黃綠色的導線是接 地線。千萬不可將此黃綠色線接在通電的接頭上，此控制器內的接地線除了有漏電安全接地外，還可將起 子工作時所產生的 ESD 靜電靠著接地線來接地消除。 主 要 技 術 參 數 型號 SKP-32BC-60WN 輸入電壓 100 ~240VAC 輸出電壓 DC 24V/32V 輸出功率 外形尺寸(mm) 145*60*35(mm) 重量 250g SKD-BC203L；SKD-BC207L；SKD-BC210L SKD-BC512L；SKD-BC519L SKD-BC512P；SKD-BC519P 適用之電動螺絲起子 SKD-BN203L；SKD-BN207L；SKD-BN210L SKD-BN512L；SKD-BN519L SKD-BN512P；SKD-BN519P ...
