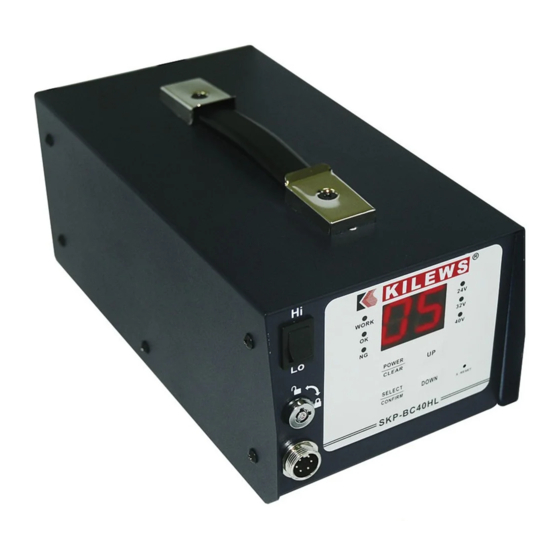

- Page 1 OPERATION AND MAINTENANCE MANUAL SKP-BC40HLN (VER:3.0) SKP-BC40HL-800 (VER:3.0) SKP-BC32HL-100N (VER:3.0) KILEWS INDUSTRIAL CO., LTD. http://www.KILEWS.com Y2F125-2-001...
-
Page 2: Table Of Contents
NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator. -
Page 3: Important Safety Instructions
Important Safety Instructions WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term "power tool" in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
-
Page 5: Operations Cautions
4. Do not near oil, chemical materials or heated objects, also please be alert not to scratch the power cord by sharp object. 5. This type of Controller can only be applied to KILEWS Electric Screwdriver with Counter. Do not use Electric Screwdriver Controller on other types of machinery. -
Page 6: Main Technical Parameters
Main Technical parameters SKP-BC32HL-100N SKP-BC40HLN SKP-BC40HL-800 Model No (ver：3.0) (ver：3.0) (ver：3.0) Input Voltage AC 100-240V 50 / 60Hz AC 100-240V 50 / 60Hz AC 115/230V 50 / 60H Output Voltage DC 32V/ 24V DC 40V/ 32V/ 24V DC 40V/ 32V/ 24V... -
Page 7: Controlpanel Specifications
Control panel specifications PARTS NAME PARTS NAME LED Indicator Down-Selecting Key HI / LO Speed Switch System Build-in Reset Key Key setting lock POWER/CLEAR Key 6Pin Connector Functional Selection / Confirm Key WORK Light Power point OK Light POWER SWITCH N.G Light Output voltage choice I/O Inserting Hole ＊... -
Page 8: Functions Of Keys On Panel
Functions of Keys on Panel： Description of function. Remarks When there is NG POWER： Power Switch signal, press CLEAR (1) When power on and have not start counting operation: bottom to clear the Hold for 6 seconds：turn off counting function. NG signal When turn off the counting function, the LED screen is off. - Page 9 Lock function of the Panel Lock Unlock function of the Panel Lock Enter the setup： dt ----- tt ----- Sr ---- SA Note： (1) When the user dt/tt press the POWER dt：the time range between each screwing process. This function will be triggered after finish + UP, panel one screwing process.
-
Page 10: I/O Inserting Hole
I/O Inserting Hole： Name In/Out Content wave pattern of signals Remark Output：DC +12V or +24V (Max：200mA) Default value：+24VDC Output 12 or 24 v dc (+12VDC need to custom modify) CN2 and CN3 will be short Automatically open CN2~CN3 Output when finished fasten one MOS RELAY (default) +/- 40V, +/- 250mA screw (Open Collector need to custom modify) - Page 11 MOS RELAY I/O Terminal Connecting Diagram：(To take factory default： for example Output： Input：...
-
Page 12: Functional Dip Switch
SENSOR for confirming the new fastener that has reached the working table. Therefore two confirming signals allow SKP-BC40HLN to start the Electric Screwdriver running. Select OFF means only need one SENSOR to confirm the fastener that has been removed from this working table；this allows Electric Screwdriver starts to work. - Page 13 CONFIRM ： Code Instruction Notations External sensor * When the SA is set to HI, the display Once confirm the external sensor. "C1"；if set is LO and will displayed SW2 (ON)+SW3(OFF)+SW4(OFF) "C.1 " Twice confirm the external sensor. SW2 (ON)+SW3(OFF)+SW4(ON) ※When error occur, sensor need to be triggered again.
-
Page 14: System Setting
※ If using three units of data only and let three units in cycles. It can set up "00" in counting number on U4, when SW6 switch ON, the system will automatically move in circle from U1~U3. System setting System procedure： SL<SELECT>SC<SELECT>At<SELECT>Rc<SELECT>SP<SELECT>Ht<SELECT>Lt<SELECT>... - Page 15 11、To press SELECT, the screen will show , push POWER key, adjust decimals , push UP/DOWN to increase or decrease number, the maximum can set up 9.99. rt：Set up auto reverse time。 12、To press SELECT, the screen will show , push POWER key, adjust decimals , push UP/DOWN to increase or decrease number, the maximum can set up 9.99.
- Page 16 Data Chart： Ht/Lt mainly set up the period of time. If stop is within the set period, it means OK. In contrast, it will be (NG), as stop before Lt or after Ht. and should reconfirm whether wrong screws is taken. More precise requested means more correct Ht/Lt set-up should be.
-
Page 17: Simulated Learning
Simulated Learning 1、 The switch mode SW5 change into ON. ※When SW5 change to ON, it will force to enter simulated learning procedure, any function will not work. 2、 When it changes to ON, LED will flash. The user can set whether or not counting screws, starting slow-start. The simulated learning function will be turned on after these necessary condition confirming. - Page 18 CAUTION 1. The use of other than genuine KILEWS replacement parts may Result in decreased tool performance and increased maintenance, and may invalidate all warranties. 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center.
- Page 20 SKP-BC32HL-100N-3.0 SKP-BC32HL-100N-3.1(CE) NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty AA50002 America Plug 美插電源線 20 CH20504-0 Screw 3*5 螺絲 3*5 AA50002-1 Australia Plug 澳插電源線 21 CH20110 Rubber Shim 腳墊 AA50002-2 Europe Plug 歐插電源線...
- Page 22 SKP-BC40HL-800-3.0 NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty AA50002 America Plug 美插電源線 23 YTM0171-8 Sticker-Model 面板貼紙 AA50002-1 Australia Plug 澳插電源線 24 CH20505 SCREW 3*8 螺絲 3*8 AA50002-2 Europe Plug 歐插電源線 25 CH20504 SCREW 3*5 螺絲...
- Page 24 SKP-BC40HL-V3.0 V3.1 PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty 1 AA50002 America Plug 美插電源線 21 CH20110 Rubber Shim 腳墊 AA50002-1 Australia Plug 澳插電源線 22 CH20506 Screw 4*12 螺絲 4*12 AA50002-2 Europe Plug 歐插電源線...
