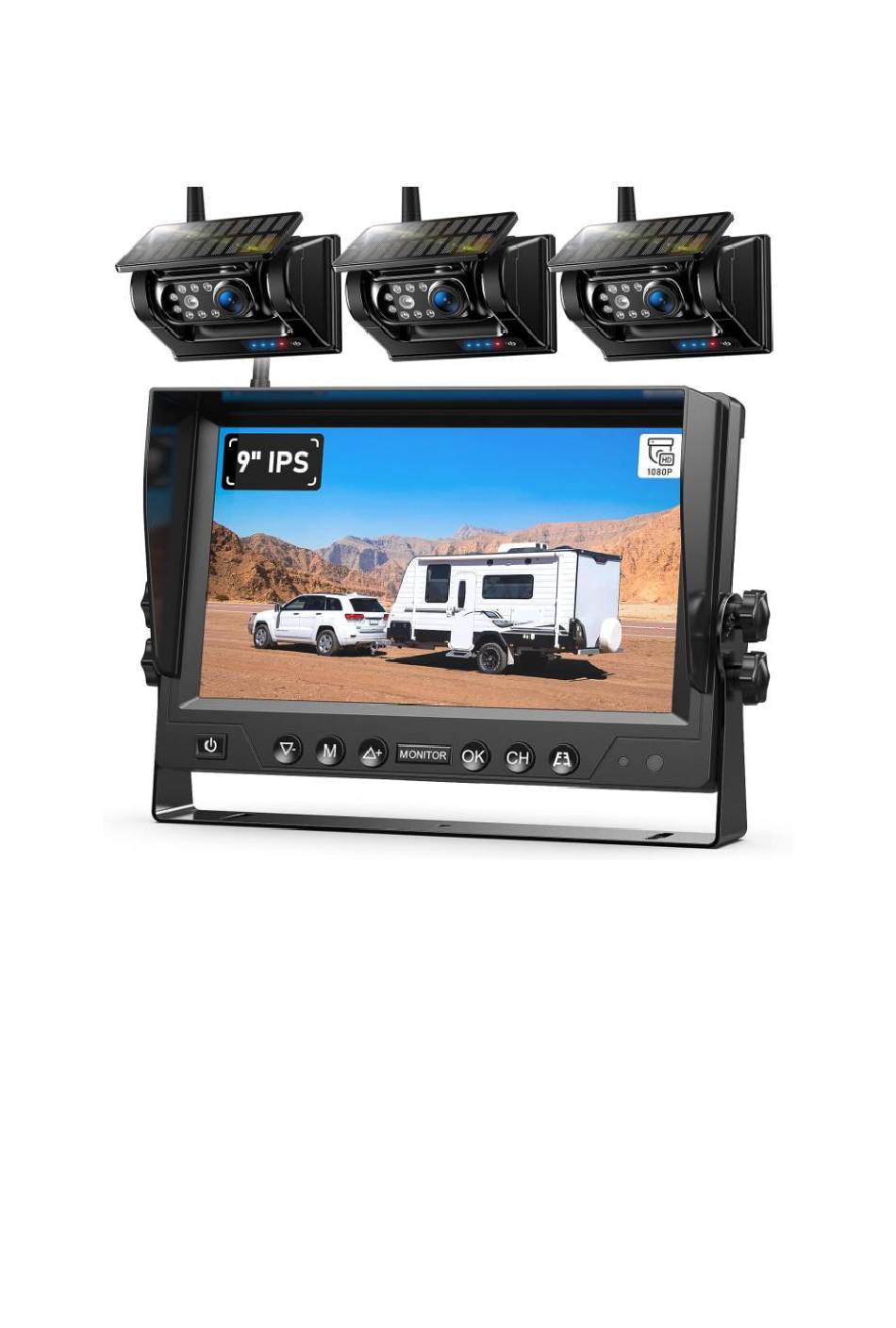

- Page 1 ZEROXCLUB INSTRUCTIONS MANUAL ZEROXCLUB 9" Magnetic Solar Wireless Backup Camera System Model: BL903 Installation and Operation Instructions...
-
Page 2: Warranty
ZEROXCLUB INSTRUCTIONS MANUAL PLEASE NOTE: Thank you for your trust in ZEROXCLUB and it's our pleasure to have you to purchased our product! Before operating this backup camera system, please read this instructions completely. We provide 24-hours customer service and technical support. If... -
Page 3: Table Of Contents
ZEROXCLUB INSTRUCTIONS MANUAL Table of Contents 1 WHATS IN THE PACKAGE ........................1 2 Introduction and Specifications .......................2 3 SYSTEM DESCRIPTION ........................2 3.1 Monitor ..........................2 3.2 Camera ..........................5 3.3 REMOTE CONTROL ........................7 4 INSTALL GUIDE ..........................8 4.1 System Power Testing ......................8 4.2 Monitor Installation ...................... -
Page 4: Whats In The Package
ZEROXCLUB INSTRUCTIONS MANUAL 1 WHATS IN THE PACKAGE The ZEROXCLUB backup camera system will work for you with the years of reliable service. Our monitors, cameras and cables are of the highest quality. Please check and ensure there is no damage on the shipping box when you received it. -
Page 5: Introduction And Specifications
ZEROXCLUB INSTRUCTIONS MANUAL 2 Introduction and Specifications The camera system is designed to monitor the road condition and ensures safety for your reversing and driving. The monitor is required to be connected to a 12-24 Volt Direct Current power source (Current limited 1~2A). -
Page 6: Monitor Buttons
ZEROXCLUB INSTRUCTIONS MANUAL Power button: Turn on / off the monitor - Button: Function DOWN button & ZOOM Menu button: Settings for PAIRING / PICTURE / MIR-FLIP / MODE / SYSTEM / CAM-SETUP / RECORD / PLAY + Button: Function UP button & ZOOM OK button: Select Enter &... - Page 7 ZEROXCLUB INSTRUCTIONS MANUAL ② Zoom in on the screen. Monitor System Menu Button Press it once to enter menu page; press it again to back to previous page. Function UP Button ① On the menu page, press it to select menu options.
-
Page 8: Camera
ZEROXCLUB INSTRUCTIONS MANUAL Rewrite: When this icon is displayed on the screen, it means the rewrite function is turned on. And it will automatically overwrite the previous videos when the memory card is full. You could turn on/off it via MENU → RECORD → ON/OFF. - Page 9 ZEROXCLUB INSTRUCTIONS MANUAL 3.2.2 Battery Power Indicator Light The red light is the charging indicator, it will light up when the camera is charging, it will turn off when charging is finished or uncharged. The blue light indicates the battery level. The blue light will illuminate when the camera is turned on.
-
Page 10: Remote Control
ZEROXCLUB INSTRUCTIONS MANUAL will appear on the monitor. If the vehicle is parked in the garage for more than a month, or the camera is not regularly exposed to the sun, you may need to charge it through the Type-C charging port before using. -
Page 11: Install Guide
ZEROXCLUB INSTRUCTIONS MANUAL 4 INSTALL GUIDE The system is assembled with simple tools without difficulty. 4.1 System Power Testing Please power and test the system before installation. 4.1.1 Suggested Sequence for Installation Please follow below installation sequence to install the system: Assemble Installation Tools ... -
Page 12: Camera Installation
ZEROXCLUB INSTRUCTIONS MANUAL Suction Cup Mount Installation: 1. Clean and dry the mounting surface where the monitor can be easily seen inside the car, and does not obstruct your vision when driving. 2. Remove the plastic sheet of the suction cup, press it against the mounting surface and push the suction cup lock lever down to lock the suction cup. -
Page 13: Power Monitor
ZEROXCLUB INSTRUCTIONS MANUAL metal surface of the vehicle. ① Mount the antenna to ② Adjust camera angle ③adheres to metal camera as needed surfaces 4.4 Power Monitor ① Mount the antenna to monitor ② Connect the power cord or car charger to monitor... -
Page 14: Pairing Operation
ZEROXCLUB INSTRUCTIONS MANUAL Software Management System Main Menu and Sub-Menu Main-menu Sub-Menu Pairing Pairing Start and Count Down from 30 Second Picture Brightness, Contrast, Hue, VOLUME(disable), AUTO-DIM Mir-flip Normal, Mirror, Flip, Mir-flip 1. Quad-Split Screen: Split 1&2&3&4 Mode 2. Dual-Split Screen: Split 1&2, 1&3, 1&4, 2&3, 2&4, 3&4... -
Page 15: Pairing Method
ZEROXCLUB INSTRUCTIONS MANUAL 5.2.1 Pairing Method Please make sure the antenna is installed on the monitor. Keep the camera and monitor closer when pair them (within 3 feet). ① Please press (M) button and find the "MODE", and then press (OK) button to select the Quad-split / Dual-split screen as needed. -
Page 16: Mir-Flip Operation
ZEROXCLUB INSTRUCTIONS MANUAL ② Press (M) button to enter Menu page ③ Select the “PICTURE” status and press (OK) button to enter it ④ Select the option that needs to be adjusted, and then press (OK) button to confirm the selection ⑤... -
Page 17: System Operation
ZEROXCLUB INSTRUCTIONS MANUAL ① Press the (M) button and choose the “MODE” on the menu page, and then press (OK) button to enter the setup page. ② Press (+) / (-) button to select the Quad/Dual split screen mode you need, and then press (OK) button to confirm the selection. -
Page 18: Cam-Setup Operation
ZEROXCLUB INSTRUCTIONS MANUAL is in full screen mode): ① Press the (M) button and choose the “SYSTEM” on the menu page, and then press (OK) button to enter the setup page. ② Find the “P-LINE” and press (OK) button to select “ON” status, and press (OK) button again to enter setup page. -
Page 19: Record Operation
ZEROXCLUB INSTRUCTIONS MANUAL SCAN TIME & AUTO SCAN: The screen can automatically cycle through camera channels if you turn on the the AUTO SCAN function, and you could setup the SCANTIME. Note: If the status of AUTOSCAN are turned on, and the SCANTIME has been set, the camera view will be automatically cycle to the next one at the set time. -
Page 20: Play Operation
ZEROXCLUB INSTRUCTIONS MANUAL 5.9 PLAY Operation You can play the recorded videos on the monitor, or read the memory card data on other devices to play. Enter the PLAY status, you will see all of the recorded video. ... - Page 21 ZEROXCLUB INSTRUCTIONS MANUAL How to turn on/off the Parking Guideline? A: (1) Press P-LINE button to turn on/off it. (2) MENU → SYSTEM → P-LINE→ ON/OFF. What is REWRITE? A: If the rewrite is turned on, the system will automatically overwrite the original recorded video once the memory card capacity is full.
-
Page 22: Troubleshooting
ZEROXCLUB INSTRUCTIONS MANUAL Note: Please format the memory card before using this system. 6.12 Q: How to turn on the night vision of the camera? A: It will be automatically turned on in the dark environment. 6.13 Can I add more cameras? A: Yes, this system supports four cameras with dual/quad split modes. - Page 23 ZEROXCLUB INSTRUCTIONS MANUAL signal. Make sure the antenna of the camera and the monitor is firmly installed. 3) If it disconnects sometimes but comes back on, please spraying contact cleaner on antenna connection on camera. 4) If the vehicle body is aluminum or fiberglass which is blocking the signal and we recommend that you raise the camera to get a direct line of sight signal.
- Page 24 ZEROXCLUB INSTRUCTIONS MANUAL 0℃(32℉) - 45℃(113℉). You may take the camera and battery back to the room and wait for it back to the room temperature to charge for a test. 6) The battery charging input is less than the output. Please turn off the camera to charge it for several hours.
