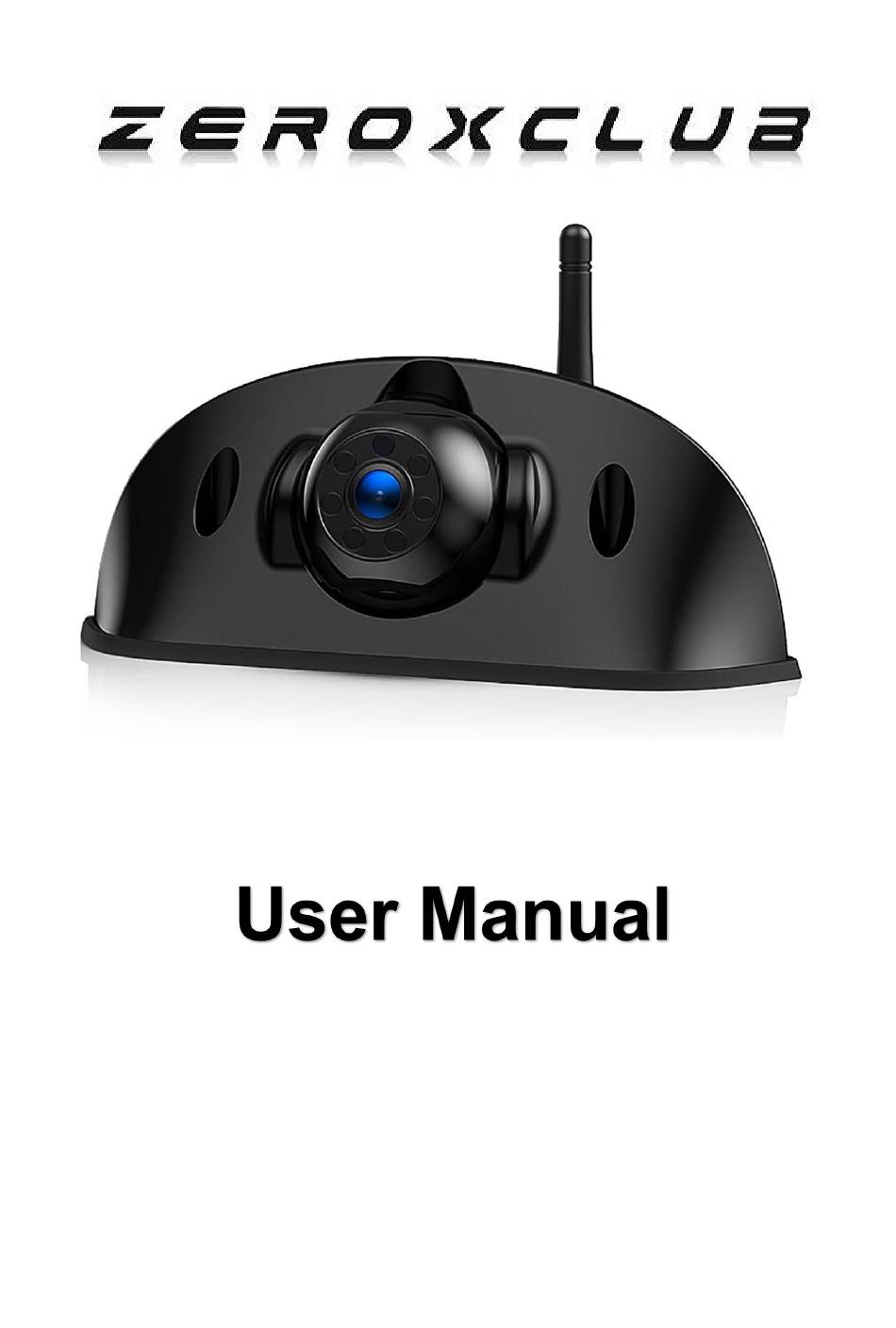

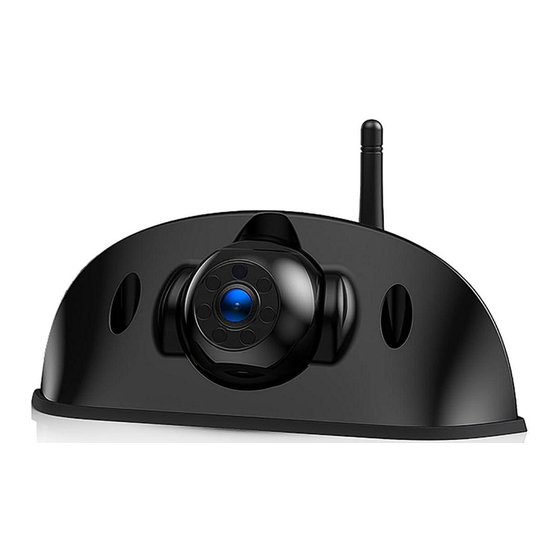

- Page 1 ZEROXCLUB Instructions Manual Sharkfin Wireless Backup Camera for BW7 Model: BW7R Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ............... 1 SAFETY INFORMATION ..............2 TEST THE CAMERA FIRST ..............2 BEFORE USING ................... 2 WHAT IS IN THE BOX ................. 3 SPECIFICATIONS ................3 INSTALLATION ..................4 T-taps Wire Connector ..............5 PAIRING .................... -
Page 3: Safety Information
ZEROXCLUB Instructions Manual SAFETY INFORMATION ●There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised. ● Children should be supervised to ensure that they do not play with the appliance. -
Page 4: What Is In The Box
ZEROXCLUB Instructions Manual WHAT IS IN THE BOX Camera Antenna Power Cord Screws Rubber Gasket T-Taps SPECIFICATIONS Camera Image Sensor CMOS 1920 x 1080 Effective Pixels Waterproof Rating IP69K View Angle 120° Operating Temperature -4°F~ 158°F Item Weight 0.57 pounds Camera Dimensions 6.7(L) x 2.8(H) x 2.7(D) in... -
Page 5: Installation
ZEROXCLUB Instructions Manual INSTALLATION If your RV or trailer has a Furrion pre-wired mount (1) Mount the antenna. (The (2) Remove the Furrion mount, replace it with the bottom of the antenna is black.) new camera, screwing it into the existing holes and connect it to the already installed power plug. -
Page 6: T-Taps Wire Connector
ZEROXCLUB Instructions Manual (3) Install the camera on your (4)Connect the red and black power cord to the vehicle with the 4 screws camera connector, and then connect Red wire to Positive power of reversing light/running light and connect Black wire to Negative Power/Ground. -
Page 7: Pairing
ZEROXCLUB Instructions Manual PAIRING Special Notice a. Please make sure that the camera's view has been opened via Menu--CAM-SETUP. b. This is easiest done with the camera and monitor close to each other, as you have a limited time to pair the screen and camera together. -
Page 8: Troubleshooting
ZEROXCLUB Instructions Manual want it to be displayed on channel 2, please press CH- button to switch to channel 2 and the refer to the "Pairing Steps" to re-pair. If you lose signal reception, re-pair the camera. (The screen will show "NO SINGAL".) - Page 9 ZEROXCLUB Instructions Manual 4) If it disconnects sometimes but comes back on, please spraying contact cleaner on antenna connection on camera. 5) Look at the camera/monitor to find if the antenna is off. Check if the antenna screw connector on the camera/monitor is loose.
-
Page 10: Faqs
ZEROXCLUB Instructions Manual FAQS Question Answer Yes, this is a rear view camera specially designed for Is this rear camera compatible with BW7 the BW7 system and is only compatible with the BW7 backup camera system? system. Cover the camera sensor, if the IR light is on, the camera is receiving power. - Page 11 ZEROXCLUB Instructions Manual If you have any problems with the product, please What if I am not satisfied with this feel free to contact us via sales@uszeroxclub.com. product? We will reply you within 24 hours. sales@uszeroxclub.com Customer Support Email:...
