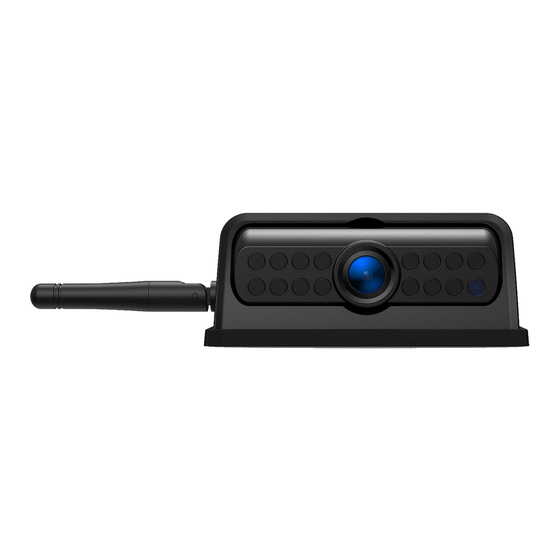

- Page 1 ZEROXCLUB Instructions Manual Wireless Side View Backup Camera for BW7 Model: BW7S Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ............... 1 SAFETY INFORMATION ..............2 TEST THE CAMERA FIRST ..............2 BEFORE USING ................... 2 WHAT IS IN THE BOX ................. 3 SPECIFICATIONS ................3 INSTALLATION ..................4 T-taps Wire Connector ..............5 PAIRING .................... -
Page 3: Safety Information
ZEROXCLUB Instructions Manual SAFETY INFORMATION ●There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised. ● Children should be supervised to ensure that they do not play with the appliance. -
Page 4: What Is In The Box
ZEROXCLUB Instructions Manual WHAT IS IN THE BOX Camera Antenna Power Cord Iron Bracket & Rubber Screws Gasket T-Taps SPECIFICATIONS Camera Image Sensor CMOS 1920 x 1080 Effective Pixels Waterproof Rating IP69K View Angle 120° Operating Temperature -4°F~ 158°F Item Weight 0.45 pounds... -
Page 5: Installation
ZEROXCLUB Instructions Manual INSTALLATION Base on your installation needs, trim Placement of Power Cable. The camera will have a power the reserve port for antenna location cable extending from its rear. You can feed it through the hole or trim the reserve port for power into the vehicle’s interior, or leave it exposed outside the car. -
Page 6: T-Taps Wire Connector
ZEROXCLUB Instructions Manual (3)Secure the top three holes with (4)Camera and iron bracket have corresponding snaps. Place screws.Make sure it is aligned the camera onto the bracket and align it properly. Slightly properly and securely attached. harder press, you'll know it's in place when you hear a 'click' sound. -
Page 7: Pairing
ZEROXCLUB Instructions Manual T-taps Wire Connector PAIRING Special Notice a. Please make sure that the camera's view has been opened via Menu--CAM-SETUP. b. This is easiest done with the camera and monitor close to each other, as you have a limited time to pair the screen and camera together. -
Page 8: Troubleshooting
ZEROXCLUB Instructions Manual Press button to select a single channel that needs to be paired.（The single screen without image that has not been paired.） 3) Press MENU to enter menu interface and select PARIING, press to confirm, you will have 20 seconds for pairing. - Page 9 ZEROXCLUB Instructions Manual 3) Make sure you are hooked up to the trailer and lights on. 4) Check if there is a problem with a light that was wired incorrectly from the factory. Test the wiring on your vehicle and if it is wired incorrectly, switch your wires to the camera to see if it works fine.
-
Page 10: Faqs
ZEROXCLUB Instructions Manual the car, you need the right length of antenna extension cable. 4) It could be that your vehicle is not providing the needed power pulse to power the camera, and it powers LED lights but not quite enough to power the camera. If you drive a GMC or Chevy or your tow vehicle just isn’t supplying enough power to your RV backup camera the fix is to... - Page 11 ZEROXCLUB Instructions Manual installation guide carefully before installation. 2) The voltage and current are too high. It is a wireless solution that transmits images from the camera to the monitor via a wireless signal. But it Why does wireless camera even need...
