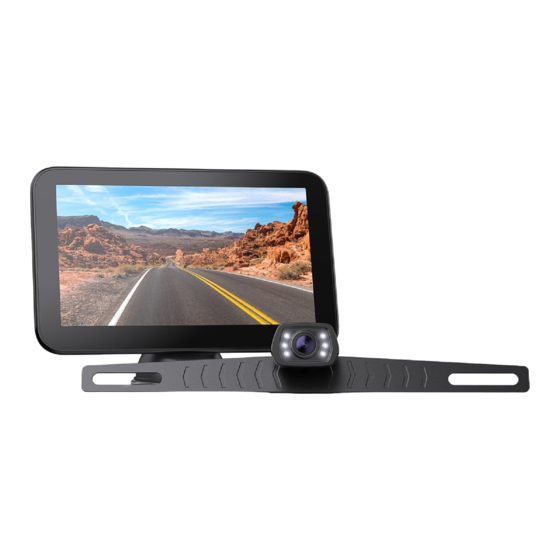

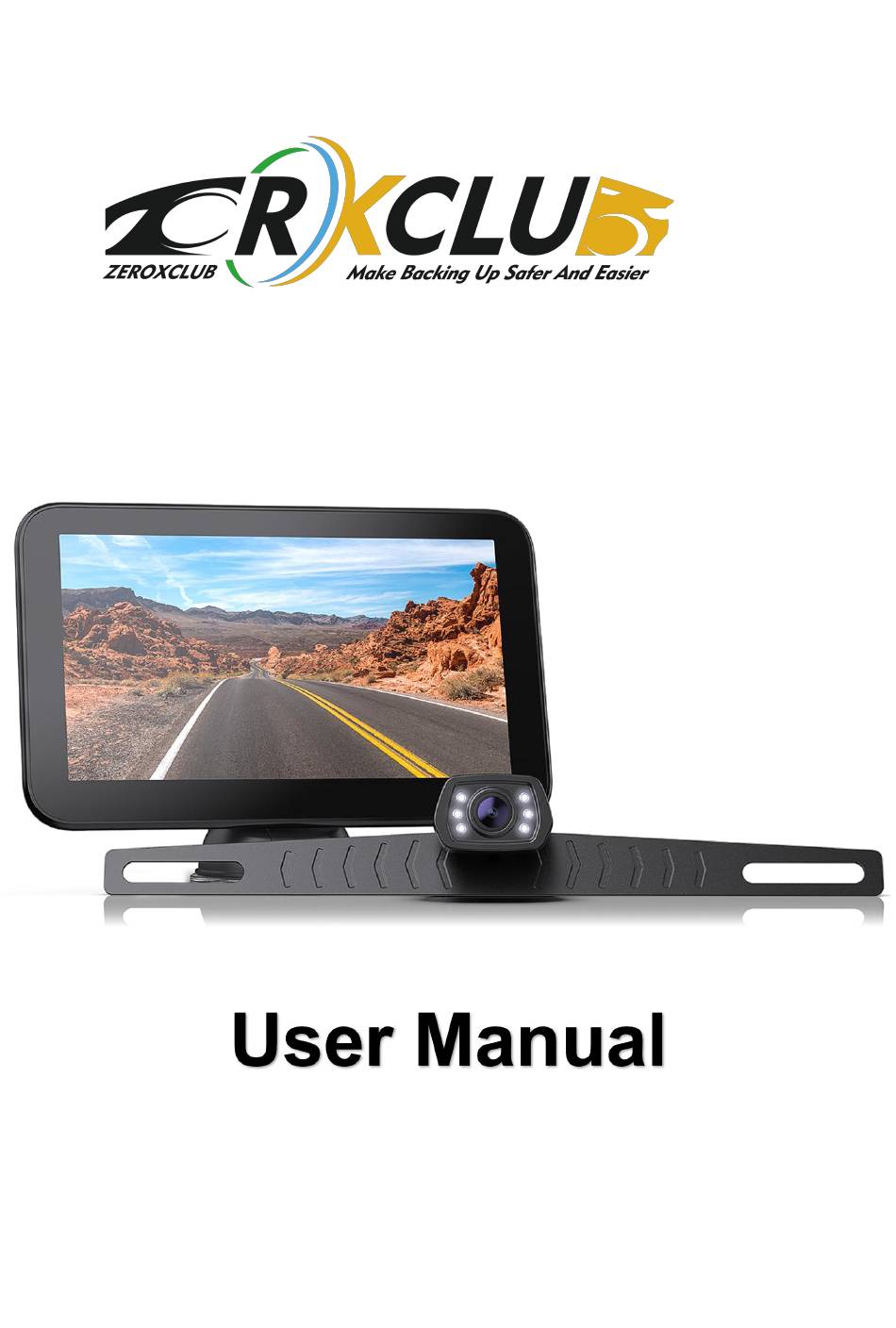

- Page 1 ZEROXCLUB Instructions Manual Model：B7 Wired Backup Camera System Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS BEFORE USING ................... 1 WAHT IS N THE BOX ................1 TEST THE SYSTEM ................1 WIRING & INSTALLATION ..............3 Installation of the Monitor ..............3 Installation of the Camera ..............4 OPERATING INSTRUCTION ..............7 Monitoring Operation ................ -
Page 3: Before Using
ZEROXCLUB Instructions Manual BEFORE USING Make sure your package includes the following listed items completely. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you write down the order number from Amazon, include photos of the damaged or missing part in your email, so that we can handle the problem much more quickly. - Page 4 ZEROXCLUB Instructions Manual SPECIFICATIONS Monitor 7’’ IPS Monitor LCD Size Monitor Cable 1.69ft Connector Type 5mm 4-pin Item Weight 0.49 pounds Power Supply DC 9V~35V 0.2A Monitor Dimensions 7.3(L)*4.53(H)*0.78(D) inches Camera Image Sensor AHD CMOS 1920(H)x 1080(V) Effective Pixels Waterproof Rating...
-
Page 5: Wiring & Installation
ZEROXCLUB Instructions Manual WIRING & INSTALLATION Wiring Wiring Schematic Via DC Power Cord 1. Connect the wire to ACC +12v power 2. You need to find an ignition switched (also known as Accessory/ACC) power supply to tap into, so that the camera is powered whenever the ignition is switched on. -
Page 6: Installation Of The Camera
ZEROXCLUB Instructions Manual where the suction cup base is to be mounted. Press the suction cup base against the windshield or dashboard and move the locking lever towards the suction cup base. Connect the monitor cable to the 4pin connector. - Page 7 ZEROXCLUB Instructions Manual 3.If you come across any obstructions, try to remove them. If you can’t, see if you can make a hole nearby. 4. You can avoid the need to drill a hole in your vehicle. If you can route the camera wire underneath the license plate and over the bottom edge of the trunk lid to get it the wire inside the trunk.
- Page 8 ZEROXCLUB Instructions Manual 5. Hook the red(positive) line of the power cord to the backup light power, and secure the black(negative) line with screw. NOTICE: For your safety, make sure you do this while the car is turned off. And make sure you wrap the combined wires in electrical tape.
-
Page 9: Operating Instruction
ZEROXCLUB Instructions Manual NOTICE 1.Some states or local governments may have regulations or laws that restrict the use of anything that might impair the clear view of a license plate. Check local laws for compliance. 2.To install the backup camera properly, please note that it must be wired into the vehicle's taillight harness. -
Page 10: Settings Operation
ZEROXCLUB Instructions Manual Parking Guidelines button: Turn on/off the parking guild lines. Increase button Menu button: Settings for Brightness / Contrast / Saturation / Hue / Parking Guidelines / Language / Reset Decrease button Mirror / Normal button: Settings for rotating the image to... - Page 11 ZEROXCLUB Instructions Manual SATURATION Press Menu button 3 times: enter adjust mode, press to increase/decrease the value, wait 15 seconds to confirm and exit setup mode automatically. Press Menu button 4 times: enter TINT adjust mode, press to increase/ decrease the value, wait 15 seconds to confirm and exit setup mode automatically.
-
Page 12: Parking Guidelines Operation
ZEROXCLUB Instructions Manual Tips If you turn on the parking guidelines, the menu setting defaults to the adjustment of parking guidelines. In this condition, if you want to access the above setting modes, you need to press the menu button 3 more times. For example, to access the brightness adjustment mode, you need to press the menu button 4 times. - Page 13 ZEROXCLUB Instructions Manual the display turn on. If you are sure the monitor has power and it does not respond to the on/off button, then disconnect it from the power and reconnecting. 3．Check there is 12v going to the monitor.
-
Page 14: Fqas
ZEROXCLUB Instructions Manual in the cable, please contact us for replacement cable. 5．Check the fuses to ensure everything is connected (without blown) and going and tracing the wiring and cables from the camera to the display. Check for broken wires in harness. - Page 15 ZEROXCLUB Instructions Manual try to cover them with electrical tape so it isn't annoying to cars behind you. If the rough surface of the dash did not work, you can plan ahead and make sure the surface is smooth, like glass or plastic.
-
Page 16: Warranty
WARRANTY ZEROXCLUB offers a full 18 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To obtain warranty support, or if you are not satisfied in any way, or have any issues with your purchase, please CONTACT US for help at the first time, we will try our best to make you satisfied. - Page 17 Otherwise, it might result in damaged or non-functional parts. ● Do not disassemble or attempt to repair any part of the camera system. ● There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised.
