Beurer FC 100 Manual

SAFETY PRECAUTIONS

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

  • The device is only intended for domestic/private use, not for commercial use.
  • This device is not suitable for persons under the age of 18.
  • This device may be used by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely and are fully aware of the consequent risks of use.
  • Children must not play with the device.
  • Cleaning and user maintenance must not be performed by children unless supervised.
  • If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.
  • Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter.
    Failure to comply will invalidate the warranty.

INCLUDED IN DELIVERY

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

  • 1 x FC 100 base station
  • 1 x hand-held device
  • 1 x precision attachment
  • 1 x coarse attachment
  • 1 x large attachment
  • 20 x single-use filter
  • 1 x mains adapter
  • These instructions for use

SIGNS AND SYMBOLS

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

Warning instruction indicating a risk of injury or damage to health Manufacturer
Important
Safety note indicating possible damage to the device/accessory
information Product information
Note on important information
Danger
The device must not be used near to water or in water (e.g. in a wash basin, or in the shower or bath) – risk of electric shock!
Certification symbol for products that are exported to the Russian Federation and members of the CIS
Read the instructions Separate the packaging elements and dispose of them in accordance with local regulations.

Marking to identify the packaging material. A = Material code,

B = Material number:
1-7 = Plastics,
20-22 = Paper and cardboard

Separate the product and packaging elements and dispose of them in accordance with local regulations.
United Kingdom Conformity Assessed Mark Importer symbol
Protection class II device
The device is double-protected and thus corresponds to protection class 2

CE labelling

This product satisfies the requirements of the applicable European and national directives.

Disposal in accordance with the

Waste Electrical and Electronic

Equipment EC Directive – WEEE

Only use indoors.
Power supply unit, switch mode;
switch mode power supply unit;
SMPS
Direct current
The device is suitable for use with direct current only
Safety isolating transformer, shortcircuit proo Polarity of d.c. power connector
Energy efficiency level 6
Protected against solid foreign objects 12.5 mm in diameter and larger

INTENDED USE

The device is only to be used on the face (apart from the eye area and mouth) of adults. Do not use the device on animals!

The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or careless use.

WARNINGS AND SAFETY NOTES

  • Danger of suffocation by packaging material. Keep packaging material away from children.
  • Before use, inspect the device and accessories for visible damage. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.
  • Keep the mains adapter away from water.



This device must not be used near to water or in water (e.g. in a wash basin, or in the shower or bath) – risk of electric shock!

Do NOT use the device

  • on cracked skin
  • on open wounds
  • in the eye area or on the mouth
  • on any part of the body other than the face (except for eye area and mouth)
  • if you have a skin disease (e.g. herpes, vascular diseases or skin growths)
  • if you have skin cancer
  • if you are suffering from skin irritation
  • immediately after sunbathing or if you have sunburn
  • if you are taking medication that contains steroids
  • if you are taking blood thinners
  • if you have multiple sclerosis, diabetes or an autoimmune disorder


For this reason, the device must only be operated as follows only with the supplied power supply unit at the mains voltage indicated on the power supply unit.


Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. In the event of a fault or damage, have the device repaired by a certified specialist workshop.

  • Only use the device in dry rooms (e.g. never in the bath, sauna).
  • Never reach for a device that has been submerged in water. Disconnect the mains adapter immediately.
  • Do not drop the device or subject it to any impacts.
  • Do not clamp or pinch the mains cable.
  • Ensure that the mains cable and mains adapter do not come into contact with water, steam or other liquids.

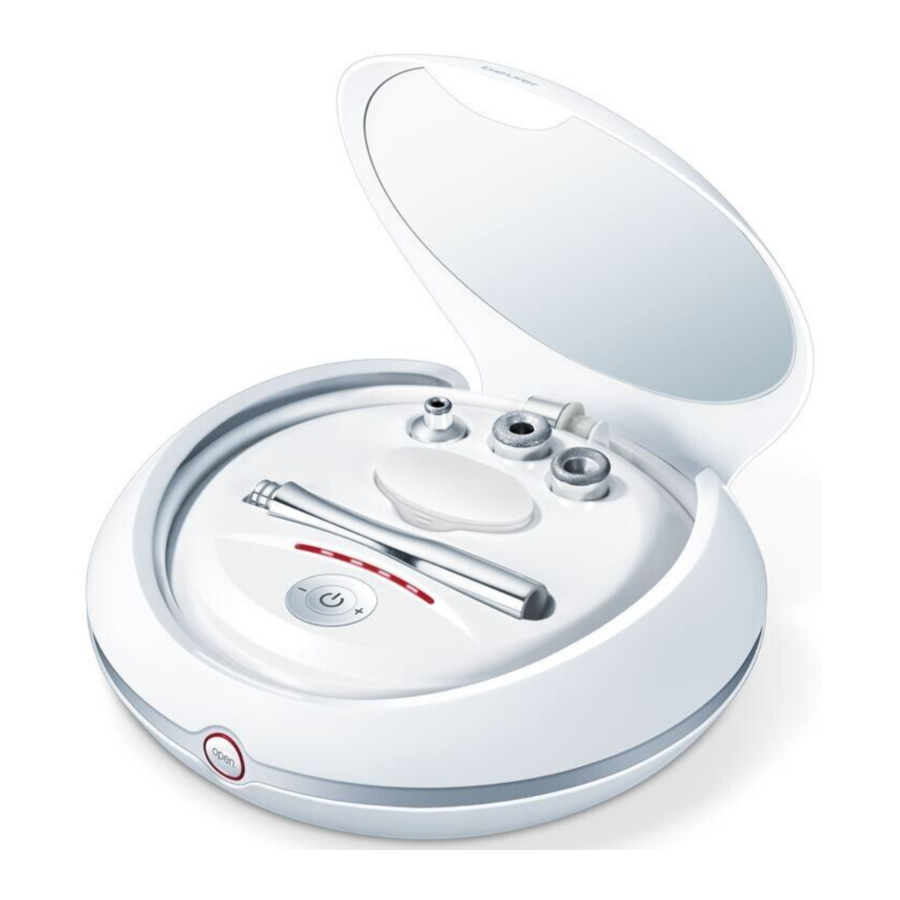

DEVICE DESCRIPTION

The associated drawings are shown.
DEVICE DESCRIPTION

  1. Mirror
  2. Precision attachment with fine sapphire coating, suitable for precise treatment of small
  3. Large attachment with fine sapphire coating,
  4. Coarse attachment with coarse sapphire suitable for sensitive skin coating, suitable for intensive treatment of problem areas
  5. Storage box with single-use filters
  6. Hand-held device
  7. Intensity level display (level 1-5)
  8. -/+ buttons for setting the intensity level
  9. Open button
  10. ON/OFF button
  11. Tube

INITIAL USE

information Before you start using the device, make sure that your face is clean, dry and free of any traces of products such as powder, cream or make-up.

Carrying out a skin test

Carry out a skin test 24 hours before using the device. Test the device at the lowest intensity level on small, inconspicuous areas of your neck. If after 24 hours the tested area is red or painful, do not use the device.

  • Do not use the device more than once a week.
  • Immediately after use, the treated skin may be slightly reddened and in very rare cases there may be small spots of bleeding under the skin.
  • For one day before and one day after use, avoid activities that cause you to perspire, such as saunas, tanning beds and sun exposure.

information The device can also be used twice a week for non-sensitive problem skin (with a break of at least 48 hours between use).

USAGE

Using the device

  1. Connect the mains adapter to the device and plug the adapter into the socket.
  2. Press the Open button to open the device.
  3. Insert a single-use filter into the end of the tube.
  4. Connect the end of the tube to the hand-held device.
  5. Place the attachment you wish to use on the tip of the hand-held device.
  6. Now press the ON/OFF button to switch on the device. The intensity level display starts to light up. You are now at the lowest intensity level.
  7. Start the treatment at the lowest intensity level initially. Place the hand-held device on your face and move it over the skin. Make sure that you do not move the hand-held device over one part of the face more than once. Further details on treatment can be found in Section "Application areas".
    If the lowest intensity level is not strong enough for you, you can change this by pressing the -/+ buttons.

    information The pressure you apply when using the device should be comfortable and not painful. Some slight reddening should be expected after use.
  8. When you have finished using the device, press the ON/OFF button to switch it off and unplug the mains adapter from the socket.
  9. Change the single-use filter after every use. To do this, disconnect the hand-held device from the tube. Use tweezers to remove the single-use filter.

Application areas

information Ensure that the part of your face you are treating is taut when you move the hand-held device over the skin. You can do this by pulling the skin taut to the side or downwards with your free hand.

Forehead:
Move the hand-held device slowly and evenly outwards from the centre of the forehead. Make sure that you do not treat any part of your skin more than once.

Temples :
Move the hand-held device outwards towards your hairline. Repeat this to the left and right of the nose. Ensure that the device is at least 1 cm away from your eyes.

Nose :
Move the hand-held device downwards from the centre at the top of the bridge of your nose. Repeat this to the left and right of the nose.

Cheeks :
Move the hand-held device outwards across your cheeks.

Around the mouth:
Move the hand-held device along your upper lip from the centre to the left and right. Move the handheld device upwards from your bottom lip to the left and right. Make sure that you do not touch your lips.

CLEANING AND MAINTENANCE

  • Never submerge the device in water or other liquids.
  • Disinfect the attachments with a standard disinfectant after each use.
  • Change the single-use filter after each use.
  • Use a dry cloth to clean the device of any dirt. Do not use any abrasive cleaning products.
  • Protect the device from knocks, damp, dust, chemicals, marked temperature fluctuations, and nearby sources of heat (ovens, heaters).

ACCESSORIES AND REPLACEMENT PARTS

For replacement parts and additional items visit www.beurer.com or contact the corresponding service address in your country (according to the service address list).

Replacement parts and additional items are also available from retailers.

Designation Item number and/or order number
20 single-use filters 163.546
Precision attachment 163.557
Coarse attachment 163.556
Large attachment 163.555

FREQUENTLY ASKED QUESTIONS

Is the Pureo Derma Peel FC100 suitable for all skin types?
The Pureo Derma Peel FC100 is suitable for all skin types. It can be used on oily, dry and combination skin. It is also suitable for all skin colours.

Is the technology in the Pureo Derma Peel FC100 safe?
The Pureo Derma Peel FC100 is based on safe microdermabrasion technology. This only removes excess skin cells in the very top layer of the skin and does not affect the other skin layers.

Is using the Pureo Derma Peel FC100 painful?
No, use of the Pureo Derma Peel FC100 should be gentle and pain-free. On very sensitive skin, users may experience slight burning in rare cases. If, however, you do experience pain when using the device, reduce the intensity.

How long does a treatment with the Pureo Derma Peel FC100 take?
The length of a treatment can vary depending on the area being treated. A full facial treatment takes approx. 20 minutes.

How often should I use the Pureo Derma Peel FC100?

We recommend using the Pureo Derma Peel FC100 once a week and waiting at least 48 hours between treatments. You can also use the device twice a week on non-sensitive problem skin. A test must be carried out before use. Protect your skin from the sun after use.

What precautions need to be taken after treatment?
Before exposing yourself to the sun, use sun protection for the first three days after a treatment. For the first three days after a treatment DO NOT carry out any mechanical/chemical exfoliation treatment, electrolysis or facial hair removal and DO NOT use hair removal products. You can wear make-up immediately after treatment.

WHAT IF THERE ARE PROBLEMS?

Problem Cause Solution
Device will not switch on On/Off switch faulty Contact Customer Services or your retailer
No power The mains part is not connected correctly. Connect the mains part correctly.
No power The mains part is faulty. Contact Customer Services or your retailer
The device's suction is incorrect Filter blocked/pump faulty Replace the old filter with a new filter. / Contact Customer Services or your retailer
Exfoliation effect from attachments is no longer ensured Sapphire coating has worn down Contact Customer Services or your retailer to request new attachments.

TECHNICAL SPECIFICATIONS

Mains part voltage supply Input voltage: 100 - 240 V
Input AC frequency: 50/60 Hz
Output voltage: 12.0 V
Output current: 0.6 A
Output power: 7.2 W
Average efficiency during operation: ≥ 80.53%
No-load power consumption: ≤ 0.066 W
Dimensions Ø 21,5 x 8,8 cm
Weight ~869 g
