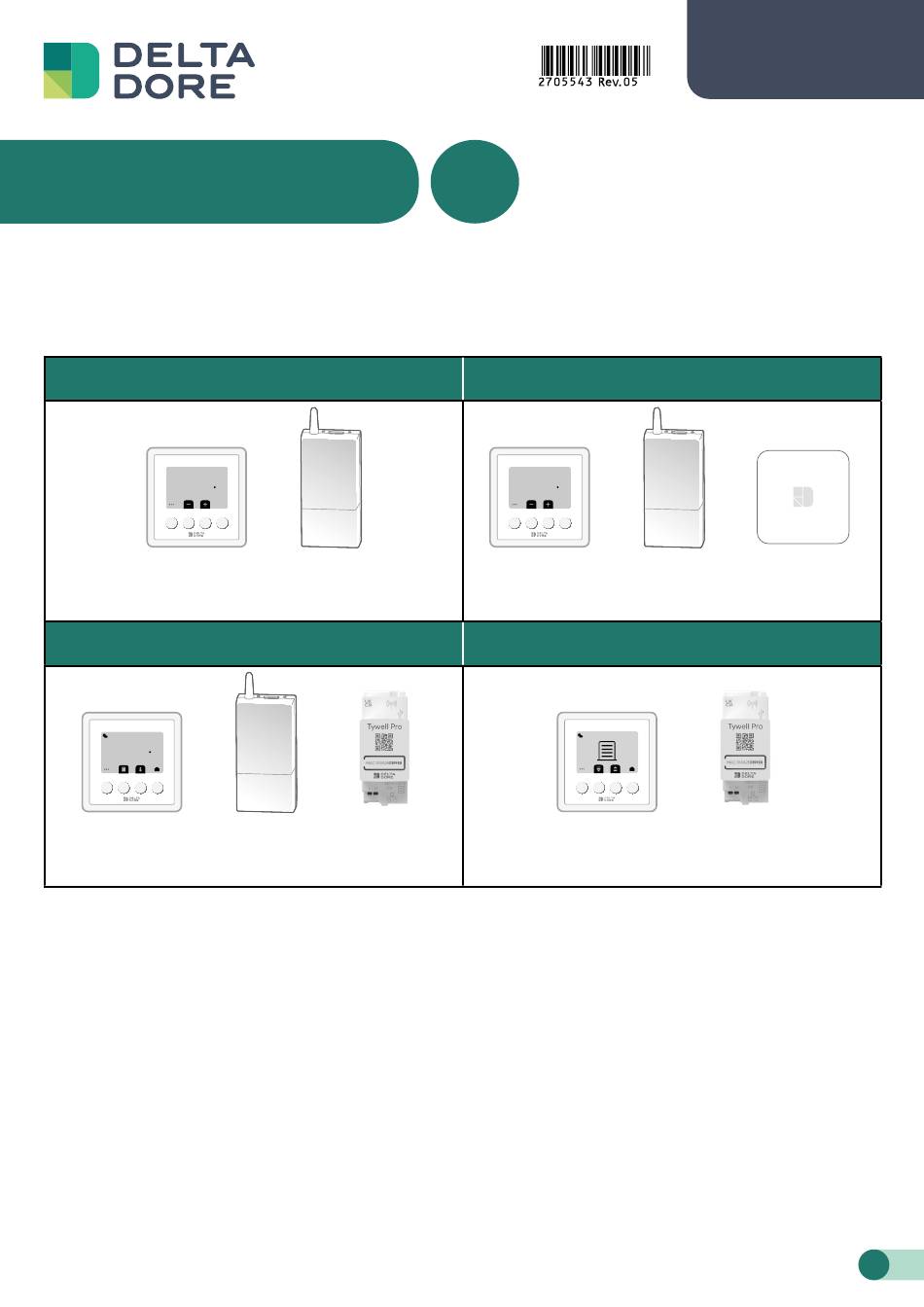

Tywell Control installation example:
❶ Thermostat
19
.8
Tywell Control
❸ Bioclimatic thermostat
+
13.7°
19.5°
19
.8
Tywell Control
Identify your installation example (1, 2, 3 or 4), then refer to the relevant paragraph in this manual.
It is always possible to complete the installation at a later date / to switch from one installation to another that is
more complete.
+
19.5°
RF 6050+ /
RF 6700FP
or Tywell 2050
+
RF 6050+ /
Tywell Pro
RF 6700FP
or
Tywell Home
❷ Smart thermostat
+
19.5°
19
.8
Tywell Control
RF 6050+ /
RF 6700FP
or Tywell 2050
❹ Shutter manager
13.7°
Tywell Control
Installation
instructions
+
Tydom Home
or
Tydom Pro
+
Tywell Pro
or
Tywell Home
1
Advertisement
Related Manuals for DELTA DORE Tywell Control
Summary of Contents for DELTA DORE Tywell Control
- Page 1 Installation instructions Tywell www.deltadore.com Tywell Control installation example: ❶ Thermostat ❷ Smart thermostat 19.5° 19.5° Tywell Control RF 6050+ / Tywell Control RF 6050+ / Tydom Home RF 6700FP RF 6700FP Tydom Pro or Tywell 2050 or Tywell 2050 ❸ Bioclimatic thermostat ❹...
-
Page 2: Table Of Contents
Mounting ................................12 Installation of the Tywell hub ....................13 Tywell Pro ................................13 2.2 Tywell Home................................14 Associating Tywell Control with a thermal receiver and/or a Tywell hub ......15 Creating a passive zone ......................16 Associating a door/window magnetic contact..............17 Associating a repeater ......................17 Advanced settings ........................18... -
Page 3: Installing The Transmitter
INSTALLATION examples ❶ and ❷ 1. Installing the transmitter 1.1 Location This transmitter should be installed in a room where heating control is needed. The recommended height is around 1.5 m and the product should be away from heat sources (fireplaces, sunlight, etc.) and draughts (windows, 1,50 m doors, etc.). -
Page 4: Installing The Receiver (Example: Rf 6050)
X3D wireless receiver are delivered pre-associated. Electro-thermal Directory It is not possible to associate several receivers motor to the same Tywell Control interface. 3. Tydom Home or Tydom Pro option Internet router or (installation example ❷) Wi-Fi router 3.1 Tydom Home installation ❶... -
Page 5: Tydom Pro Installation
3.2 Tydom Pro installation Tydom Pro must be installed on a DIN rail (35 mm) or in a consumer unit, or in a VDI unit. Only a qualified xxxxxx person should attempt to install the device. Tydom Pro must be protected by a 2A circuit breaker, which will also act as a power supply switch. -
Page 6: Associating The Tywell Control With A Receiver
>3s Release the button..Step 2: Access the association menu as follows: • If Tywell Control has never been associated (initial commissioning), the screen displays: I'd like to pair a Tywell hub Select "Thermal receiver". a heating receiver Confirm, then follow the instructions. -
Page 7: Associating A Door/Window Magnetic Contact
. 7. Associating a repeater If the wireless range is too weak and the Tywell Control cannot be moved closer to the receiver, you can add an X3D wireless repeater to your installation (ERX 1000 or ERX 2000). -
Page 8: Advanced Settings
8. Advanced settings To access the advanced settings: - Press a button to activate the display. - Press “...”, then select “Settings” - From the Settings menu, select "Status", then press the right button for 5 seconds to display the "Advanced settings"... -
Page 9: Control (Depending On Compatible Receiver: E.g. : Rf6050+)
8.3 Control (depending on compatible receiver: e.g. : RF6050+) The control quality depends on parameters like the building's insulation, the number of radiators or the flooring type. The “Tips” column in the following table will help you select the setting that is appropriate for your installation. Default setting: 15 minutes. -
Page 10: Installation Help
Pull on the product to unclip it Low ba eries and replace the ba eries. Consider replacing the ba eries of Tywell Control is powered by 3 x 1.5V - AAA LR03 your thermostat. Click batteries It takes 3x LR03 ba eries. -
Page 11: Thermal Configuration Of The Receiver
... .. To make the change active, you must establish a new wireless association by following the steps in paragraph 9.2 (Unpairing a receiver), then paragraph 4 (Associating the Tywell Control with a receiver). 10. Technical Specifications... -
Page 12: Installing The Transmitter
INSTALLATION examples ❸ and ❹ 1. Installing the transmitter 1.1 Location This transmitter should be installed in a room where heating control is needed. The recommended height is around 1.5 m and the product should be away from heat sources (fireplaces, sunlight, etc.) and draughts (windows, 1,50 m doors, etc.). -
Page 13: Installation Of The Tywell Hub
2. Installation of the Tywell hub 2.1 Tywell Pro xxxxxx Tywell Pro must be installed on a DIN rail (35 mm) or in a consumer unit, or in a VDI unit. Only a qualified person should attempt to install the device. Box Internet Tywell Pro must be protected by a 2A circuit breaker, which will also act as a power supply switch. -
Page 14: Tywell Home
2.2 Tywell Home ❶ Connect your Tywell Home Internet router adhering STRICTLY to the following order: or Ei-Fi router ① Connect the Ethernet cable (B). ② then, connect the mains power (C). If you do not have internet access, you will need a Wi-Fi router to install the product. -
Page 15: Associating Tywell Control With A Thermal Receiver And/Or A Tywell Hub
3. Associating Tywell Control with a thermal receiver and/or a Tywell hub Your installation consists of at least one Tywell hub and one Tywell Control. The presence of a thermal receiver (e.g. RF6050+, RF6700FP) is only valid for Tywell installations where heating/air conditioning management is required. -
Page 16: Creating A Passive Zone
To create a passive zone, use the Tydom application to choose the devices that you want to integrate into the zone. Create a single passive zone if the installation only has a single Tywell Control and a single sun sensor (or weather service data). -
Page 17: Associating A Door/Window Magnetic Contact
6. Associating a repeater If the wireless range is too weak and the Tywell Control cannot be moved closer to the receiver, you can add an X3D wireless repeater to your installation (ERX 1000 or ERX 2000). It is not possible to repeat the association between a Tywell Control and a Tywell hub. -
Page 18: Advanced Settings
7. Advanced settings To access the advanced settings: - Press a button to activate the display. - Press “...”, then select “Settings” - From the Settings menu, select "Status", then press the right button for 5 seconds to display the "Advanced settings"... -
Page 19: Control (Depending On Compatible Receiver: E.g. : Rf6050+)
7.3 Control (depending on compatible receiver: e.g. : RF6050+) The control quality depends on parameters like the building's insulation, the number of radiators or the flooring type. The “Tips” column in the following table will help you select the setting that is appropriate for your installation. Default setting: 15 minutes. -
Page 20: Installation Help
When the batteries are completely depleted, a new alert prompts you to replace the batteries as soon as possible, to prevent the system from shutting down. Pull on the product to unclip it Tywell Control is powered by 3 x 1.5V - AAA LR03 Low ba eries and replace the ba eries. -
Page 21: Thermal Configuration Of The Receiver
..Press the button for 3 seconds to confirm your selection....9. Technical Specifications Tywell Control transmitter RF 6050+ receiver • Power supply using 3 batteries: • Power supply 230 V ~, 50 Hz 3x1.5V Alkaline - Type LR03-AAA...
