Key Automation RXM5A Instructions And Warnings For Installation And Use page 4

Universal receiver at 433.92 mhz with 5a relay

MAIN COMPONENTS

3 - PRELIMINARY CHECKS

WARNING - before installing the product, perform the following checks

and inspections:

• Check that the intended mounting surface is solid and does not allow vibrations

• Use electrical connections suitable for the currents required

• Check that the power supply conforms to the values in the technical

specifications

• Connect a type ANTS433 antenna; without an antenna, the range is cut to a

few metres. The antenna must be installed as high up as possible and above

any metal or reinforced concrete structures. The antenna cable must be type

RG58 and no more than 10 metres long.

• If it is not possible to install an antenna, range can be improved by connecting

a stretched-out electrical wire

4 - INSTALLING THE PRODUCT

Ensure that the power supply is disconnected when wiring the loads to

the receiver's relays. The first remote control sets the type of encoding

(fixed or variable code). When powered up, the receiver flashes to indi-

cate the type of encoding used by the remote controls in its memory:

• 1 long flash = memory empty

• 2 quick flashes = fixed code

• 3 quick flashes = variable code

4.1 MEMORISING A REMOTE CONTROL

WARNING: When storing a new remote control, the sensitivity of the

receiver is temporarily attenuated to reduce unwanted signals. Keep the

remote control in the vicinity of the receiver.

PH.

DESCRIPTION

Press and release the receiver's button as many

times as the output you want to activate: once for

output 1, twice for output 2

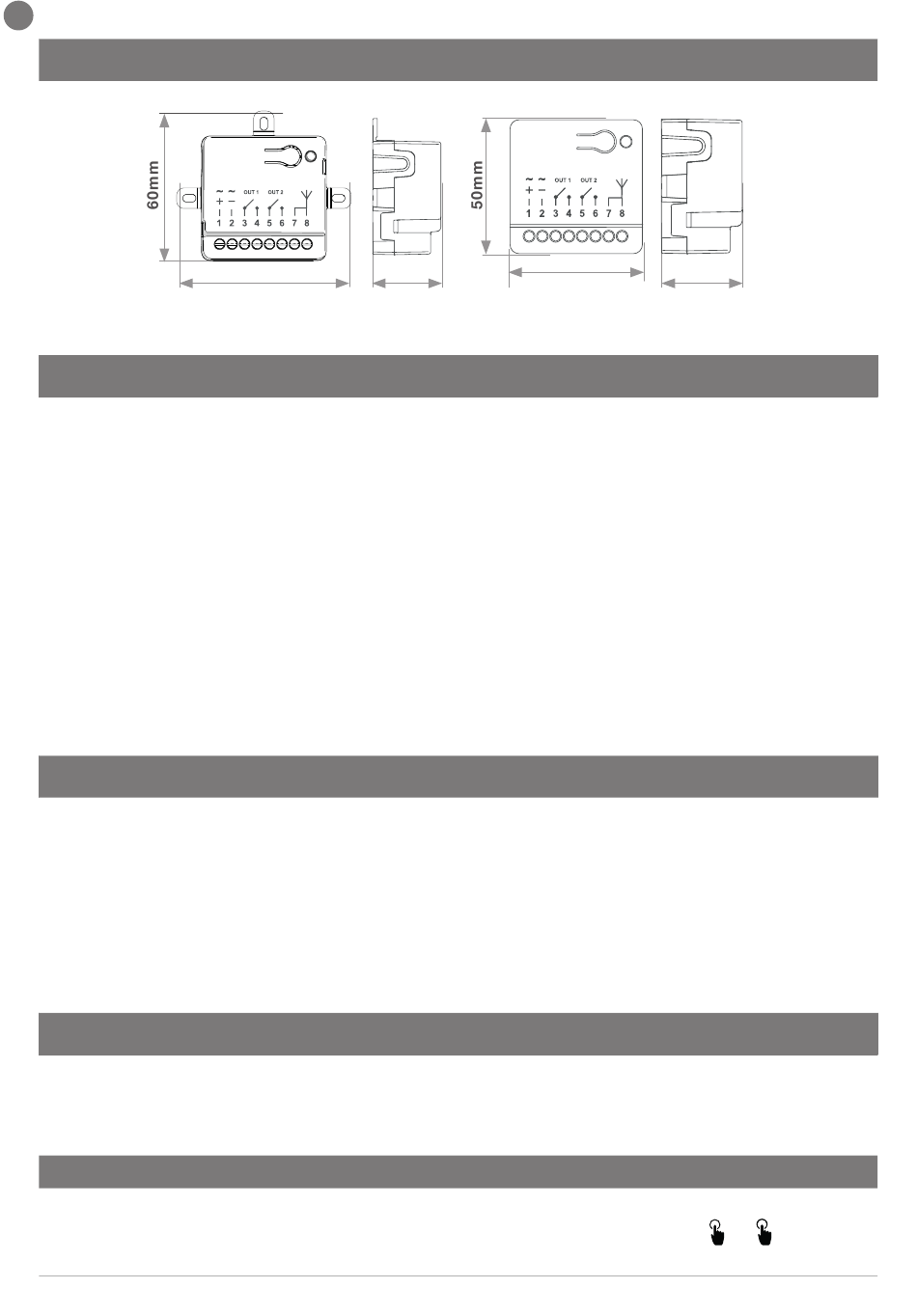

70mm

31mm

With fixing tabs

50mm

31mm

Without fixing tabs

EXAMPLE
