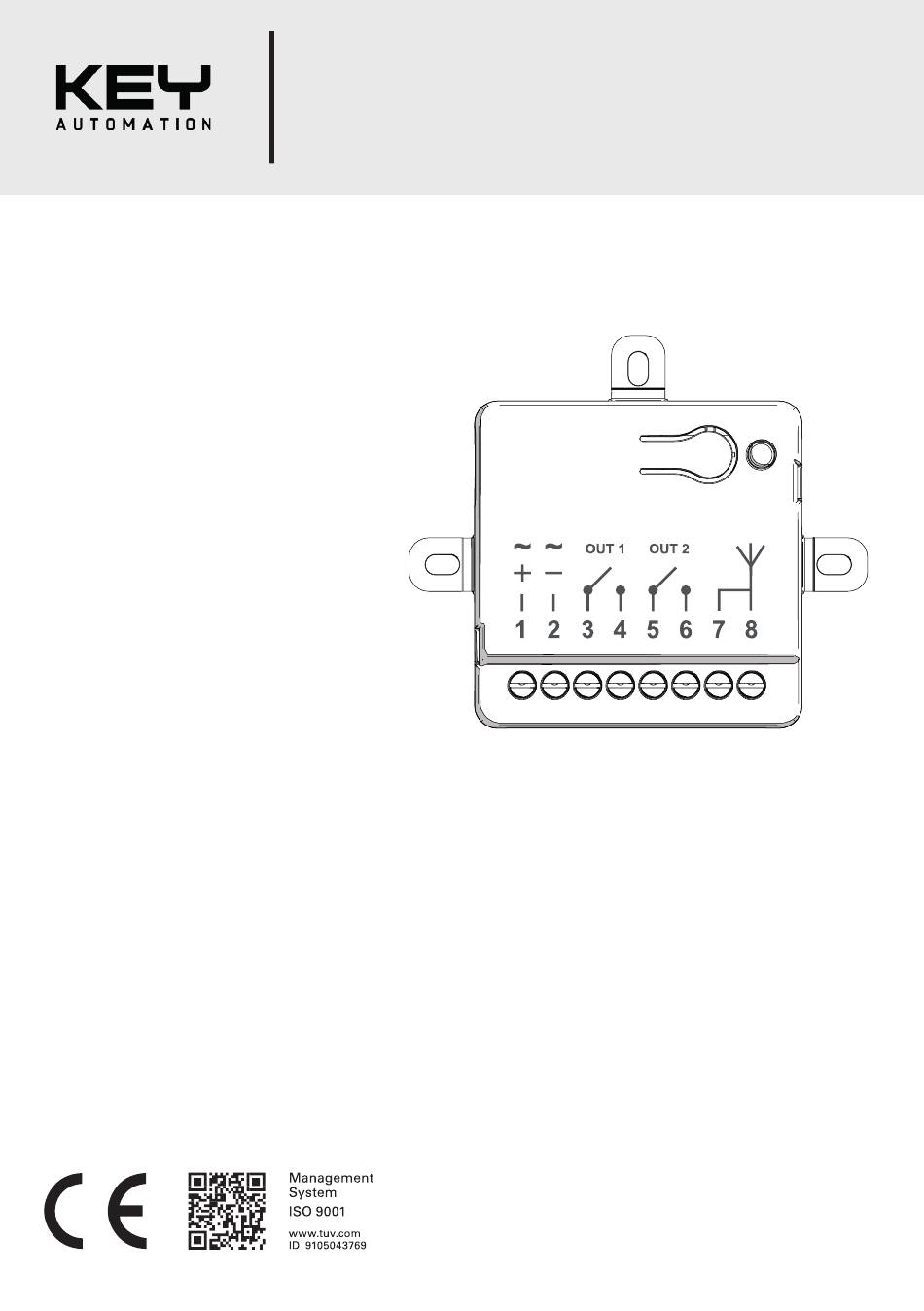

- Page 1 Instructions and warnings for installation and use RXM5A Universal receiver at 433.92 MHz with 5A relay...
- Page 2 INDEX Safety Warnings p. 3 Product Introduction p. 3 Preliminary Checks p. 4 Installing the product p. 4 4.1 Memorising a remote control p. 4 4.2 Deleting a button from a remote control p. 5 4.3 Clearing the entire receiver memory/ receiver reset p.
- Page 3 2 - PRODUCT INTRODUCTION The RXM5A is a universal receiver at 433.92 MHz with 2 relay outputs of 5 A, compatible with fixed or rolling code transmitters from Key Automation. It can be mounted on a wall/panel using the (removable) mounting tabs or installed flush (e.g., in junction boxes).

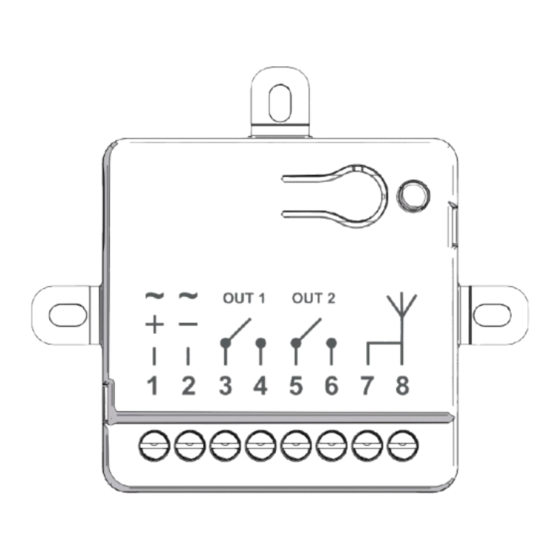

- Page 4 MAIN COMPONENTS 50mm 70mm 31mm 31mm With fixing tabs Without fixing tabs 3 - PRELIMINARY CHECKS WARNING - before installing the product, perform the following checks and inspections: • Check that the intended mounting surface is solid and does not allow vibrations •...
- Page 5 The LED on the receiver will flash a number of times equal to the number of the output selected, with 1 second pauses between flashes Press the key of the remote control to be memorised within 7 seconds, holding it down for at least 2 seconds If the memorisation has been successful, the receiver will give one long flash...
- Page 6 If the deletion/reset has been successful, the receiver will give one long flash 4.4 CHANGE MONOSTABLE/BISTABLE BEHAVIOR OF OUT2 For the second output, OUT2, it is possible to set monostable or bistable operation. DESCRIPTION EXAMPLE Press and hold the receiver button until the ( >...
- Page 7 7 - DECLARATION OF CONFORMITY The manufacturer: Key Automation S.r.l. via Meucci 23, 30027 San Donà di Piave (VE) – ITALY Declares that the product type: RXM5A 433.92 MHz 4-channel radio receiver with 5 A relay...
- Page 8 Key Automation S.r.l. Via Meucci - 30027 San Donà di Piave (VE) Instruction version T. +39 0421.307.456 - info@keyautomation.it www.keyautomation.com 583RXM5A REV.00...
