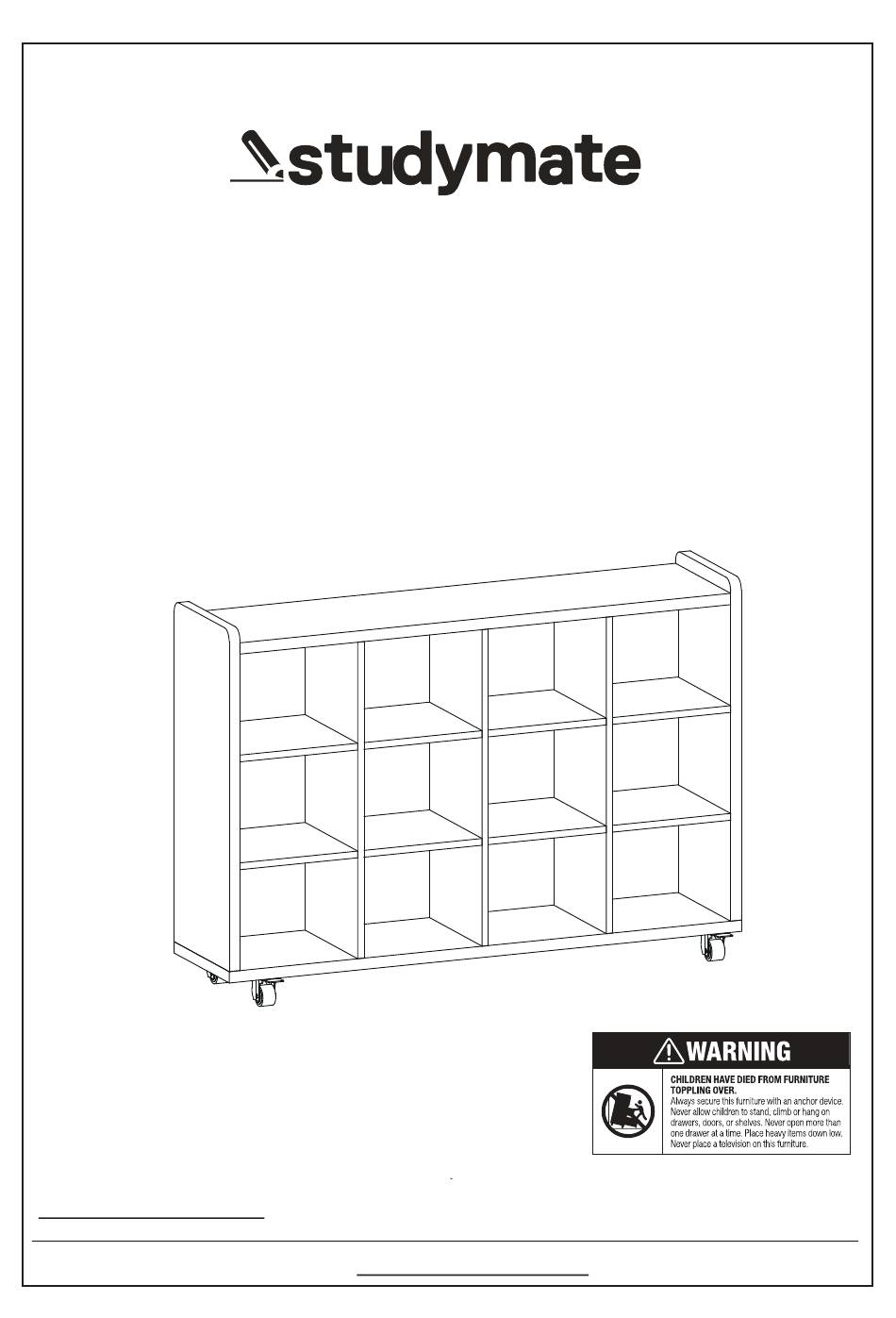

- Page 1 ASSEMBLY INSTRUCTIONS YOUNG KIDS EDUCATIONAL 12 CUBE UNIT ITEM CODE: SMKE12CLOA / SMKE12CLWE This design and instruction booklet is subject to copyright 1 Carton www.officeworks.com.au For spare parts or hardware email hardware@kyvas.com.au 1/22...
-
Page 2: Tools Required
Important Estimated Assembly Time: 50min Assembly Video To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. 0456 456 547 Tools Required CAUTION Do not use tools other than those required, as this can damage your new item. NOTE Please check you have all hardware before assembling. - Page 3 Part Overview 3/22...
-
Page 4: Part List
Part List Parts located in Carton - SMKE12CLOA / SMKE12CLWE X 1 pc X 1 pc X 1 pc X 1 pc X 4 pcs X 4 pcs X 1 pc X 2 pcs X 2 pcs 4/22... -
Page 5: Hardware List
Hardware List Hardware Pack located in Carton - SMKE12CLOA / SMKE12CLWE ( 6 x 45 mm) ( 15 x 12 mm) ( 8 x 30 mm) X 42pcs X 14pcs X 42pcs ( 5 x 20 mm) ( 3.5 x 25 mm) - Page 6 Hardware List Other hardware located in Carton - SMKE12CLOA / SMKE12CLWE Adjust Feet X 2pcs X 4pcs X 2pcs If you are missing hardware, please contact Kyvas at hardware@kyvas.com.au 6/22...
- Page 7 Assembly Step 1 8 pcs 4 pcs Step 2 8 pcs 7/22...
- Page 8 Step 3 Tighten cam locks once panel is in place. 4 pcs Step 4 Tighten cam locks once panel is in place. 4 pcs 8/22...
- Page 9 Step 5 4 pcs 2 pcs Step 6 4 pcs 9/22...
- Page 10 Step 7 Tighten cam locks once panel is in place. 4 pcs Step 8 Tighten cam locks once panel is in place. 4 pcs 10/22...
- Page 11 Step 9 Tighten cam locks once panel is in place. 4 pcs Step 10 Tighten cam locks once panel is in place. 4 pcs 11/22...
- Page 12 Step 11 6 pcs 4 pcs Step 12 Tighten cam locks once panel is in place. 6 pcs 12/22...
- Page 13 Step 13 6 pcs 2 pcs Step 14 Tighten cam locks once panel is in place. 6 pcs 13/22...
- Page 14 Step 15 6 pcs 2 pcs Step 16 Tighten cam locks once panel in place. 6 pcs 14/22...
- Page 15 Step 17 Step 18 1 pc 10 pcs 15/22...
- Page 16 Step 19 4 pcs Step 20 10 pcs 16/22...
- Page 17 Note: You can assemble the Cube by 2 different options. Option 1 Option 2 Step 21 Option 1 4 pcs 17/22...
- Page 18 CAUT I ON IMPORTANT: To prevent furniture from tilting forward it is recommended that you: 1. Prevent small children from climbing onto cube. 2. Securely attach the anti tilt mechanism provided to your wall. CAUT I ON IMPORTANT: For your safety when attaching the anti tilt mechanism: 1.
-
Page 19: Important Note
1. Fix to top panel Connecter by using hardware 2. Position wall stud is in same level as top panel. fix to wall Connecter by using hardware 3. Use strap though two connecter then tighten up. Important Note Always lift with a minimum of 2x people. Damage caused by dragging will void warranty. - Page 20 Step 22 Option 2 16 pcs 2 pcs 2 pcs Maximum Load Capacity: Top of unit - 40kg Each shelf - 10kg Your YOUNG KIDS EDUCATIONAL 12 CUBE UNIT Option 2 is now complete and ready for use! 20/22...
-
Page 21: Care Advice
Care Advice Care Instructions - PVC/ Melamine Finish Cube Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. Clean up spills quickly. Water left over a prolonged period of time may cause damage. - Page 22 Warranty 15 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 15 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
