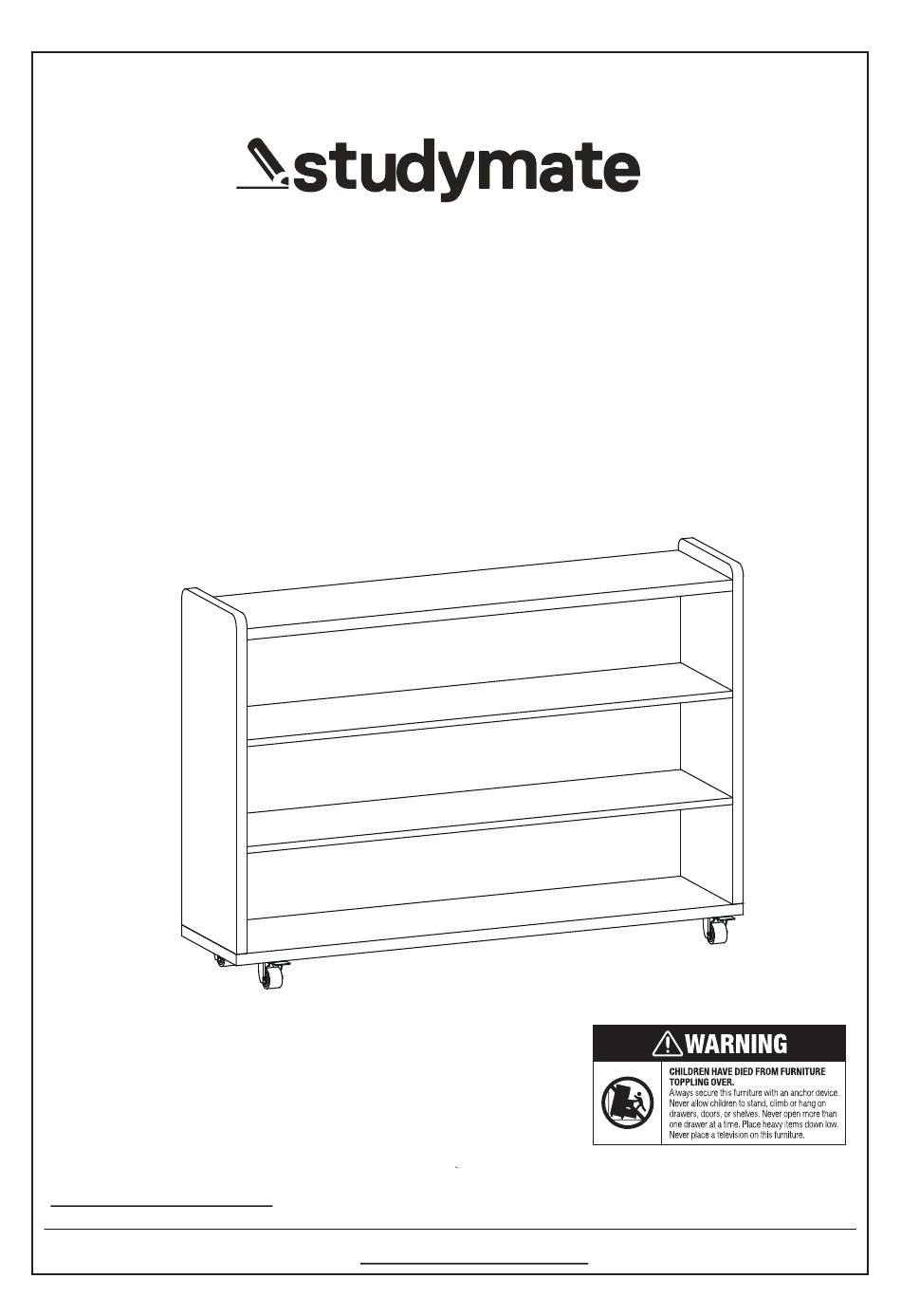

- Page 1 ASSEMBLY INSTRUCTIONS YOUNG KIDS EDUCATIONAL 3 SHELF UNIT ITEM CODE: SMYKDEBKOA / SMYKDEBKWE This design and instruction booklet is subject to copyright 1 Carton www.officeworks.com.au For spare parts or hardware email hardware@kyvas.com.au 1/17...
-
Page 2: Tools Required
Important Estimated Assembly Time: 45min Assembly Video To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. 0456 456 547 Tools Required CAUTION Do not use tools other than those required, as this can damage your new item. NOTE Please check you have all hardware before assembling. - Page 3 Part Overview 3/17...
-
Page 4: Part List
Part List Parts located in Carton - SMYKDEBKOA / SMYKDEBKWE x 1 pc x 1 pc x 1 pc x 1 pc x 2 pcs x 3 pcs 4/17... -
Page 5: Hardware List
Hardware List Hardware Pack located in Carton - SMYKDEBKOA / SMYKDEBKWE ( 6 x 45 mm) ( 15 x 12 mm) ( 8 x 30 mm) X 12pcs X 8pcs X 12pcs Allen Key ( 5 x 20 mm) ( 7 x 48 mm) - Page 6 Hardware List Other hardware located in Carton - SMYKDEBKOA / SMYKDEBKWE Adjust Feet X 2pcs X 4pcs X 2pcs If you are missing hardware, please contact Kyvas at hardware@kyvas.com.au 6/17...
- Page 7 Assembly Step 1 6 pcs 2 pcs Step 2 Tighten cam locks once panel is in place. 4 pcs 7/17...
- Page 8 Step 3 4 pcs Step 4 Tighten cam locks once panel is in place. 2 pcs 8/17...
- Page 9 Step 5 Step 6 6 pcs 2 pcs 9/17...
- Page 10 Step 7 Tighten cam locks once panel is in place. 6 pcs Step 8 10/17...
- Page 11 Step 9 4 pcs 1 pc Note: You can assemble the Cube by 2 different options. Option 2 Option 1 11/17...
- Page 12 Step 10 Option 1 4 pcs CAUT I ON IMPORTANT: To prevent furniture from tilting forward it is recommended that you: 1. Prevent small children from climbing onto bookcase. 2. Securely attach the anti tilt mechanism provided to your wall. CAUT I ON IMPORTANT: For your safety when attaching the anti tilt mechanism: 1.
- Page 13 Anti-tilt mechanism installation IMPORTANT: The wall fixing hardware supplied is for attaching to wall stud behind plaster board. For fixing directly to plaster board only or masonry please source the appropriate fixings from your local hardware store. Q.ty Name of Hardware 4pcs Connecter Screw...
-
Page 14: Important Note
Important Note Always lift with a minimum of 2x people. Damage Wall caused by dragging will void warranty. Tighten screws and bolts after two weeks of use. Ensure screws and bolts remain tight by checking them several times a year. Maximum Load Capacity: Top of unit - 40kg Each shelf - 10kg... - Page 15 Maximum Load Capacity: Top of unit - 40kg Each shelf - 10kg Your YOUNG KIDS EDUCATIONAL 3 SHELF UNIT Option 2 is now complete and ready for use! 15/17...
-
Page 16: Care Advice
Care Advice Care Instructions - PVC/ Melamine Finish Shlef Unit Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. Clean up spills quickly. Water left over a prolonged period of time may cause damage. - Page 17 Warranty 15 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 15 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
