Summary of Contents for Studymate SMKIDPLAYT

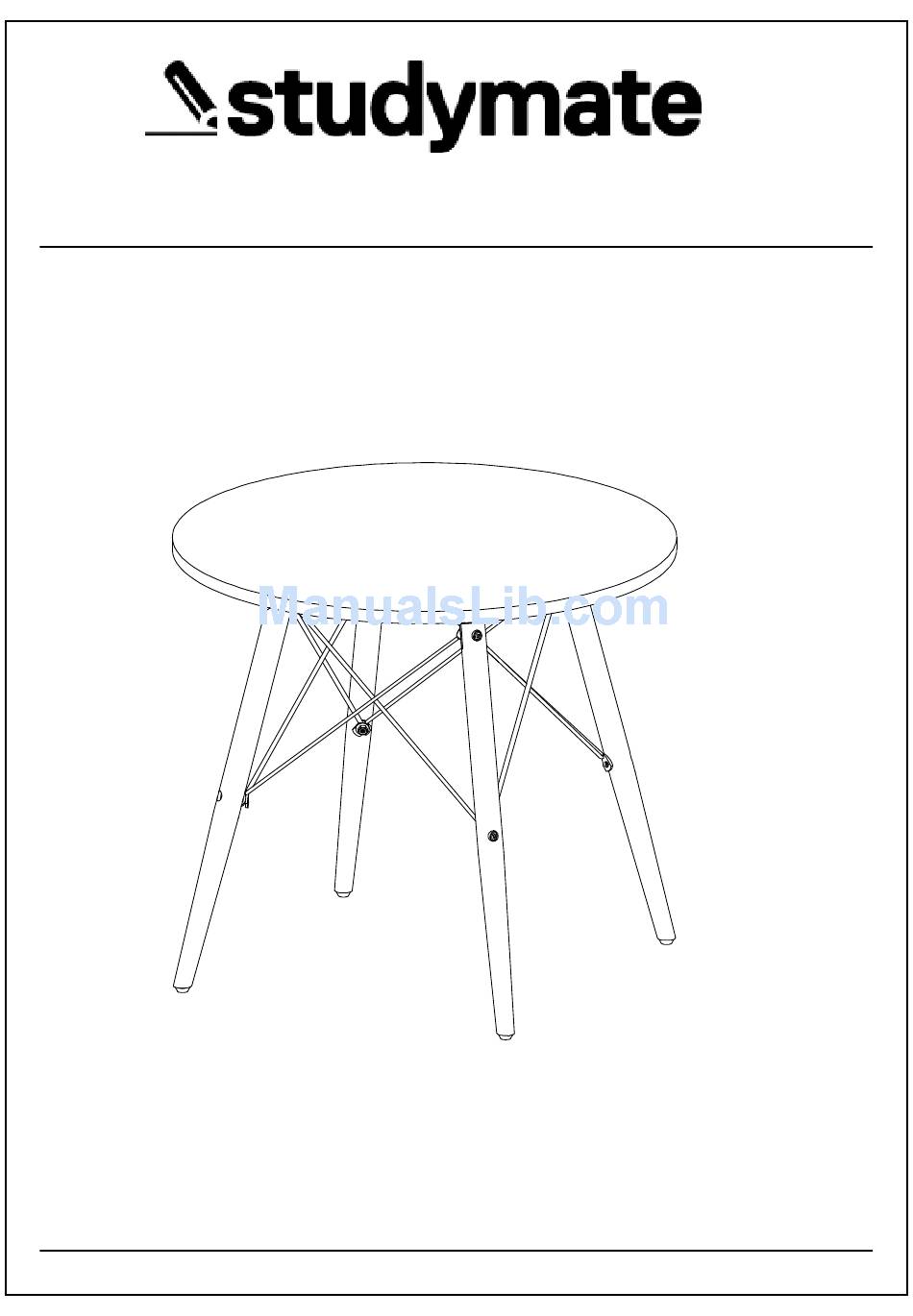

- Page 1 ASSEMBLY INSTRUCTIONS KIDS PLAY TABLE SMKIDPLAYT This design and instruction booklet is subject to copyright. www.officeworks.com.au...
- Page 2 Recommend 2 Adults to Assemble Assemble Item On a Clean Flat Surface WARNING Please check you have all hardware before assembling. If you think you are missing any hardware please contact the store of purchase. Please ensure you have the name of the item and hardware part required and quantity. Please retain your receipt for proof of purchase to validate warranty.
-
Page 3: Parts List
PARTS LIST x1pc x4pcs x4pcs HARDWARE LIST 6x12mm 16x1mm 6x40mm x8pcs x8pcs x4pcs x8pcs x1pc x1pc x4pcs Step 1 x4pcs x4pcs... - Page 4 Step 2 x4pcs x8pcs x8pcs Attention: Loosely attach nut C during this step for easier assembly on the following steps.
- Page 5 Step 3 Step 4 x4pcs lock 100 %...
-
Page 6: Maximum Weight Capacity
Step 5 If the table is not level after assembly, loosen nut C and place table on level ground. Ensure all legs are in proper contact with the ground and tighten nut C. MAXIMUM WEIGHT CAPACITY Step 6 NOTE: 40kg maximum weight capacity 1.Assembly should be done by two adults.
