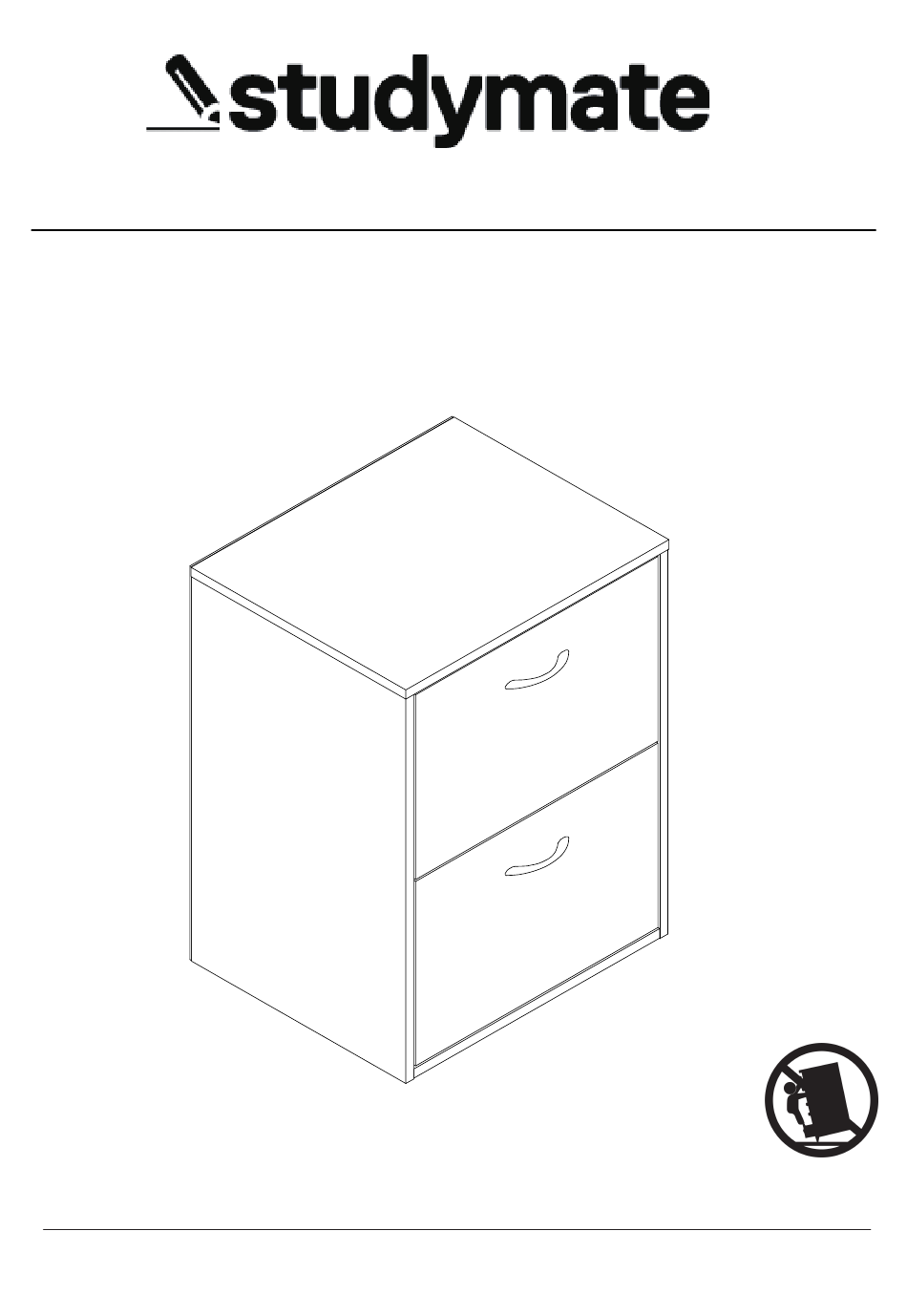

- Page 1 ASSEMBLY INSTRUCTIONS 2 DRAWER FILING CABINET SM2DRWFCWE This design and instruction booklet is subject to copyright. 1 Carton www.officeworks.com.au For spare parts or hardware call 1300 OFFICE (1300 633 423) 1/13...
- Page 2 Estimated Assembly Time: 60minutes Furniture Assem bly Ins Customer Service Contact Details Spare Parts & Hardware 1300 OFFICE (1300 633 423) People Required General Advice 2/13...
- Page 3 Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item NOTE • Please check you have all hardware before assembling. • If you are missing any hardware, please contact 1300 OFFICE(1300 633 423). •...
- Page 4 Parts List 2pcs 2pcs 2pcs 2pcs 2pcs 2pcs Hardware List 6x30mm 12pcs 3x12mm 16pcs M6x35mm 16pcs 8pcs 8pcs 15x12mm 15x9mm Ø 6x364mm 350mm 350mm 350mm 350mm 4pcs 2pcs 2pcs 2pcs 2pcs 2pcs 4pcs 8pcs 4pcs 4x25mm 4x30mm 14pcs 4/13...
- Page 5 Hardware Spare Part number - HW2DRWFCHW 6x30mm 3x12mm M6x35mm 16pcs 12pcs 8pcs 16pcs 8pcs 15x12mm 15x9mm 14pcs 2pcs 4pcs 8pcs 4pcs 4x25mm 4x30mm Hardware Spare Part number - HWSTCKSDRU 350mm 2pcs 2pcs 350mm 350mm 2pcs 2pcs 350mm Hardware Spare Part number - HWSTCKHMHR 4pcs 5/13...
- Page 6 Assembly Step 1 4pcs 8pcs 2pcs 2pcs Step 2 2pcs 2pcs 6/13...
- Page 7 Step 3 2pcs 2pcs Step 4 4pcs 7/13...
- Page 8 Step 5 4pcs 4pcs Step 6 14pcs 4pcs XX=YY Note: Partially hammer the nails 2/3 into back panel at this step for easy removal. After the drawers are fully aligned and travel smoothly, fully hammer nails to inside back panel. 8/13...
- Page 9 Step 7 8pcs Step 8 4pcs 8pcs 9/13...
- Page 10 Step 9 Step 10 8pcs Holes for A4 suspension files Holes for foolscap suspension files Could decide during installation if you want foolscap or A4 10/13...
- Page 11 Step 11 8pcs 2pcs 2pcs Step 12 2pcs 4pcs 11/13...
-
Page 12: Maximum Weight Capacity
Step 13 MAXIMUM WEIGHT CAPACITY If the drawer’s two side gaps were not aligned, please pull out the back panel nails and adjust the cabinet angles to ensure the frame angles are square. After the drawers are fully aligned and travel smoothly, fully hammer nails to inside back panel. - Page 13 Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
