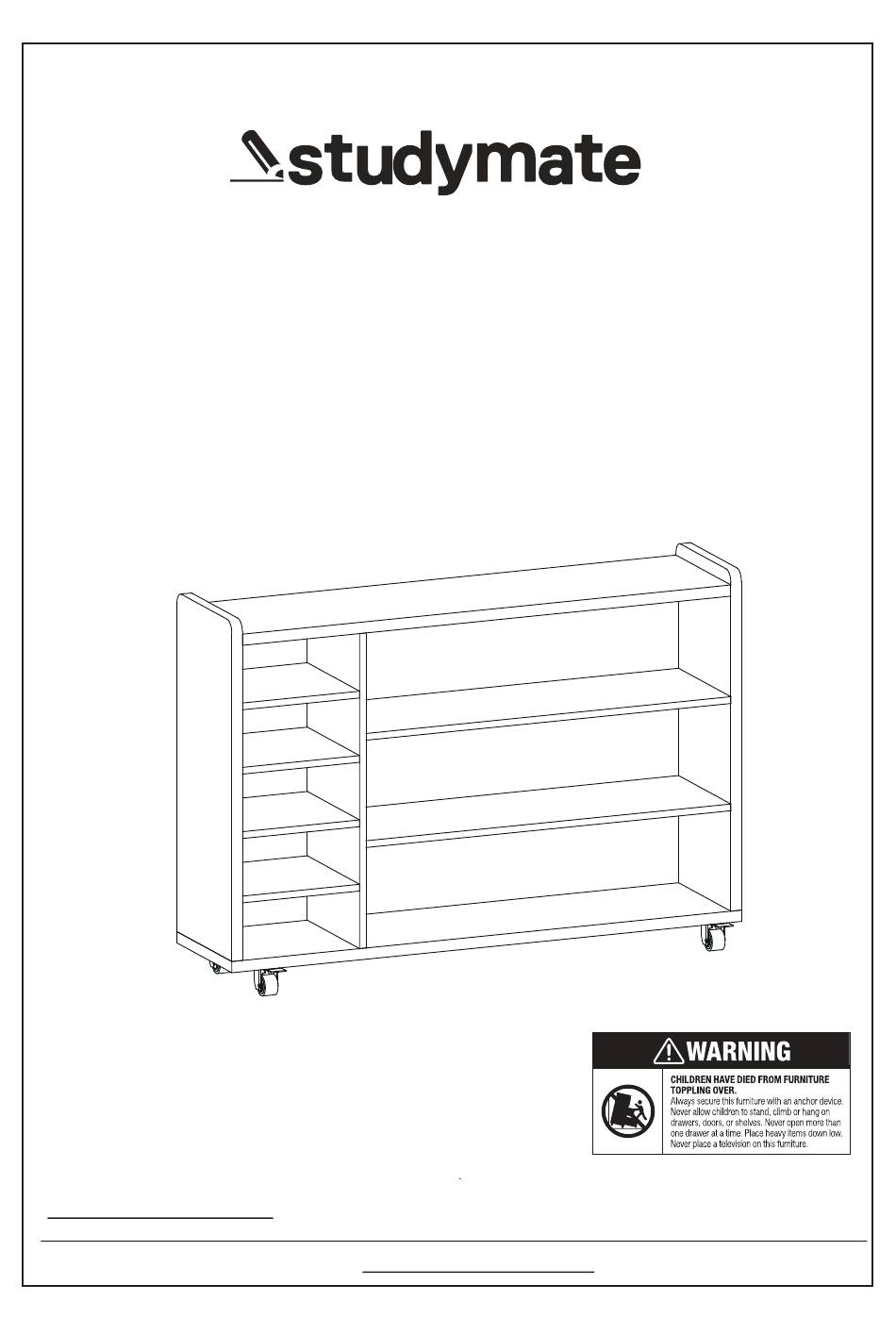

- Page 1 ASSEMBLY INSTRUCTIONS YOUNG KIDS EDUCATIONAL 8 SHELF UNIT ITEM CODE: SMYKDBKCOA / SMYKDBKCWE This design and instruction booklet is subject to copyright 1 Carton www.officeworks.com.au For spare parts or hardware email hardware@kyvas.com.au 1/19...
- Page 2 Important Estimated Assembly Time: 45min Assembly Video To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. 0456 456 547 Tools Required CAUTION Do not use tools other than those required, as this can damage your new item. NOTE Please check you have all hardware before assembling.
- Page 3 Part Overview 3/19...
- Page 4 Part List Parts located in Carton - SMYKDBKCOA / SMYKDBKCWE X 1 pc X 1 pc X 1 pc X 1 pc X 4 pcs X 1 pc X 2 pcs X 1 pc X 3 pcs 4/19...
-
Page 5: Hardware List
Hardware List Hardware Pack located in Carton - SMYKDBKCOA / SMYKDBKCWE ( 6 x 45 mm) ( 15 x 12 mm) ( 8 x 30 mm) X 30pcs X 10pcs X 30pcs Allen Key ( 5 x 20 mm) ( 7 x 48 mm) - Page 6 Hardware List Other hardware located in Carton - SMYKDBKCOA / SMYKDBKCWE Adjust Feet X 2pcs X 4pcs X 2pcs If you are missing hardware, please contact Kyvas at hardware@kyvas.com.au 6/19...
- Page 7 Assembly Step 1 8pcs 2pcs Step 2 4pcs 7/19...
- Page 8 Step 3 Tighten cam locks once panel is in place. 4 pcs Step 4 Tighten cam locks once panel is in place. 8 pcs 8/19...
- Page 9 Step 5 2pcs 4pcs Step 6 Tighten cam locks once panel is in place. 2 pcs 9/19...
- Page 10 Step 7 10pcs 2pcs Step 8 Tighten cam locks once panel is in place. 10 pcs 10/19...
- Page 11 Step 9 Step 10 6pcs 2pcs 11/19...
- Page 12 Step 11 Tighten cam locks once panel is in place. 6 pcs Step 12 12/19...
- Page 13 Step 13 6pcs 1 pc Step 14 2 pcs 13/19...
- Page 14 Note: You can assemble the Cube by 2 different options. Option 1 Option 2 Step 15 Option 1 4 pcs 14/19...
- Page 15 CAUT I ON IMPORTANT: To prevent furniture from tilting forward it is recommended that you: 1. Prevent small children from climbing onto bookcase cube. 2. Securely attach the anti tilt mechanism provided to your wall. CAUT I ON IMPORTANT: For your safety when attaching the anti tilt mechanism: 1.
-
Page 16: Important Note
1. Fix to top panel Connecter by using hardware 2. Position wall stud is in same level as top panel. fix to wall Connecter by using hardware 3. Use strap though two connecter then tighten up. Important Note Always lift with a minimum of 2x people. Damage caused by dragging will void warranty. - Page 17 Step 16 Option 2 16 pcs 2 pcs 2 pcs Maximum Load Capacity: Top of unit - 40kg Each shelf - 10kg Your YOUNG KIDS EDUCATIONAL 8 SHELF UNIT Option 2 is now complete and ready for use！ 17/19...
-
Page 18: Care Advice
Care Advice Care Instructions - PVC/ Melamine Finish Shlef Unit Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. Clean up spills quickly. Water left over a prolonged period of time may cause damage. - Page 19 Warranty 15 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 15 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
