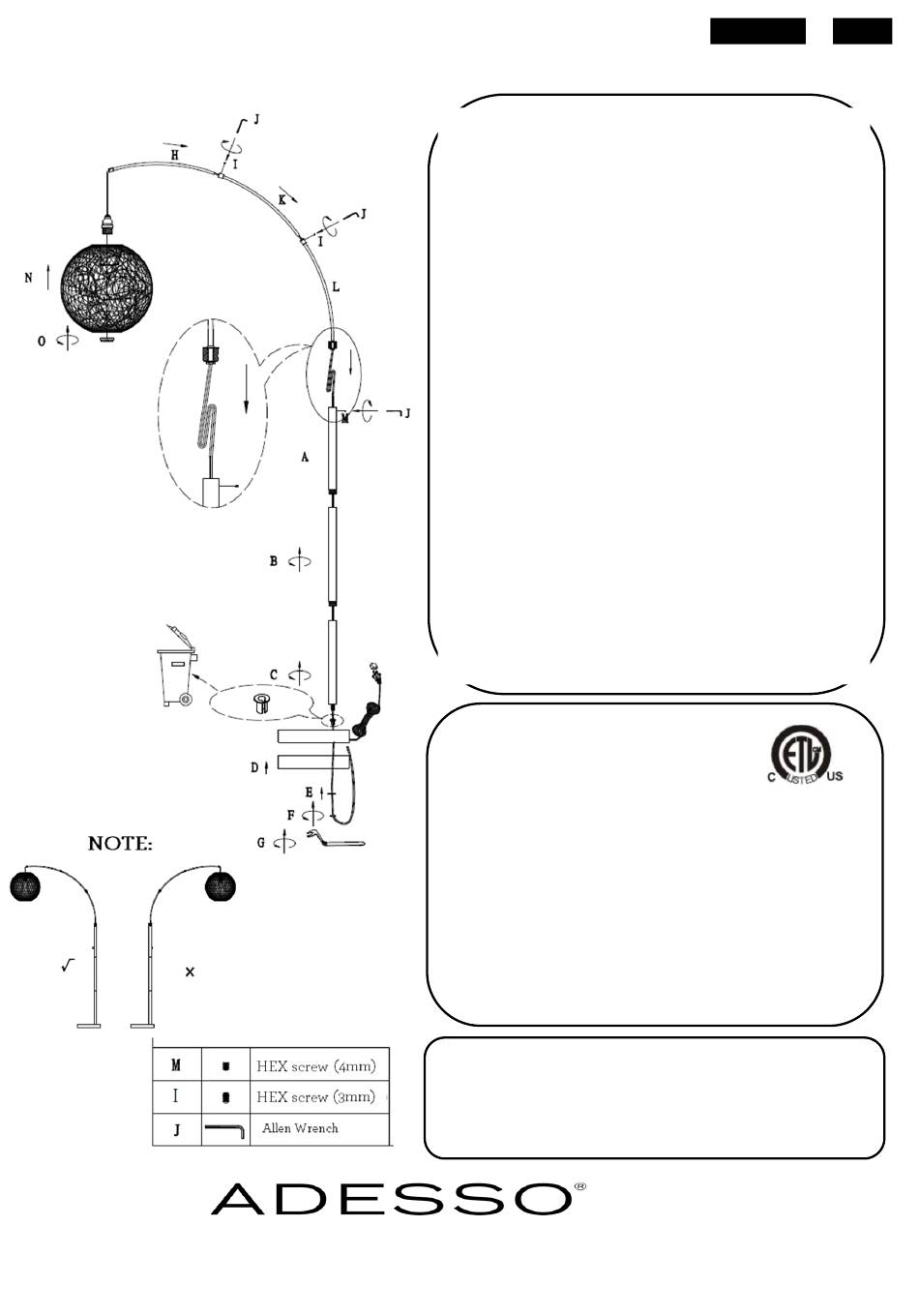

ASSEMBLY INSTRUCTION FOR
Havana Arc Lamp
Model# 4312-12
1. Insert the curved arm (H), (K) and (L) together, then tighten it
using hex screw (I) with allen wrench (J).
You may need to pull any excess cord gently through the poles so
that these two parts fit.
2. Fold the excess cord and insert into pole (A).
3. Place the curved arm (L) onto pole (A), then tighten it using 2
hex screw pieces (M) with allen wrench (J).
Note: The Arc lamp should face forward in the same direction
as the switch, and cord coming out of the back of the base.
4. Screw pole (A), (B) and (C) together until tight.
You may need to pull any excess cord gently through the poles so
that these two parts fit.
5. Take out the black bushing from the hole of base (D) and throw it
out.
6. Place base(D) flat on ground. Stand up the rest of the lamp and
place threaded tube of pole (C) through hole on base (D) while
gently pulling any excess cord through base.
7. While keeping pole (C) inserted into base, slowly tilt the lamp on
its side to get access to bottom of base in order to tighten it with
washer (E) and nut (F) securely using wrench (G)
8. Place shade (N) onto socket holder and turn the socket ring (O)
until tight to secure shade.
GENERAL PRODUCT INFORMATION:
This product is suitable
for dry locations only.
---------------------------------------------------------------
IMPORTANT SAFETY INSTRUCTIONS:
This portable lamp has a polarized plug as a feature to reduce the risk
of electric shock (one blade is larger than the other). This plug will fit
in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified
electrician.Do not use with an extension cord unless the plug can be
DO NOT ALTER THE PLUG .
fully inserted.
----------------------------------------------
BULB TYPE: type A Max 100W bulb (bulb not included).
PARTS DIAGRAM:
(3)* HEX screw (I)
(1)* Allen Wrench (J)
(2) * HEX screw (M)
(1)* Washer (E)
(1)* Nut (F)
(1)* Wrench(G)
(1)* Socket ring(N)
4312-12
21 Penn Plaza Suite 909 New York,NY 10001
Tel: (212) 736 4440 Fax: (212) 736 4806
www.adessohome.com
2.0
