Adesso 4159-22 Assembly Instruction

Please visit our website or scan QR
code to view a Video on assembling
our patent pending No Tools Arms

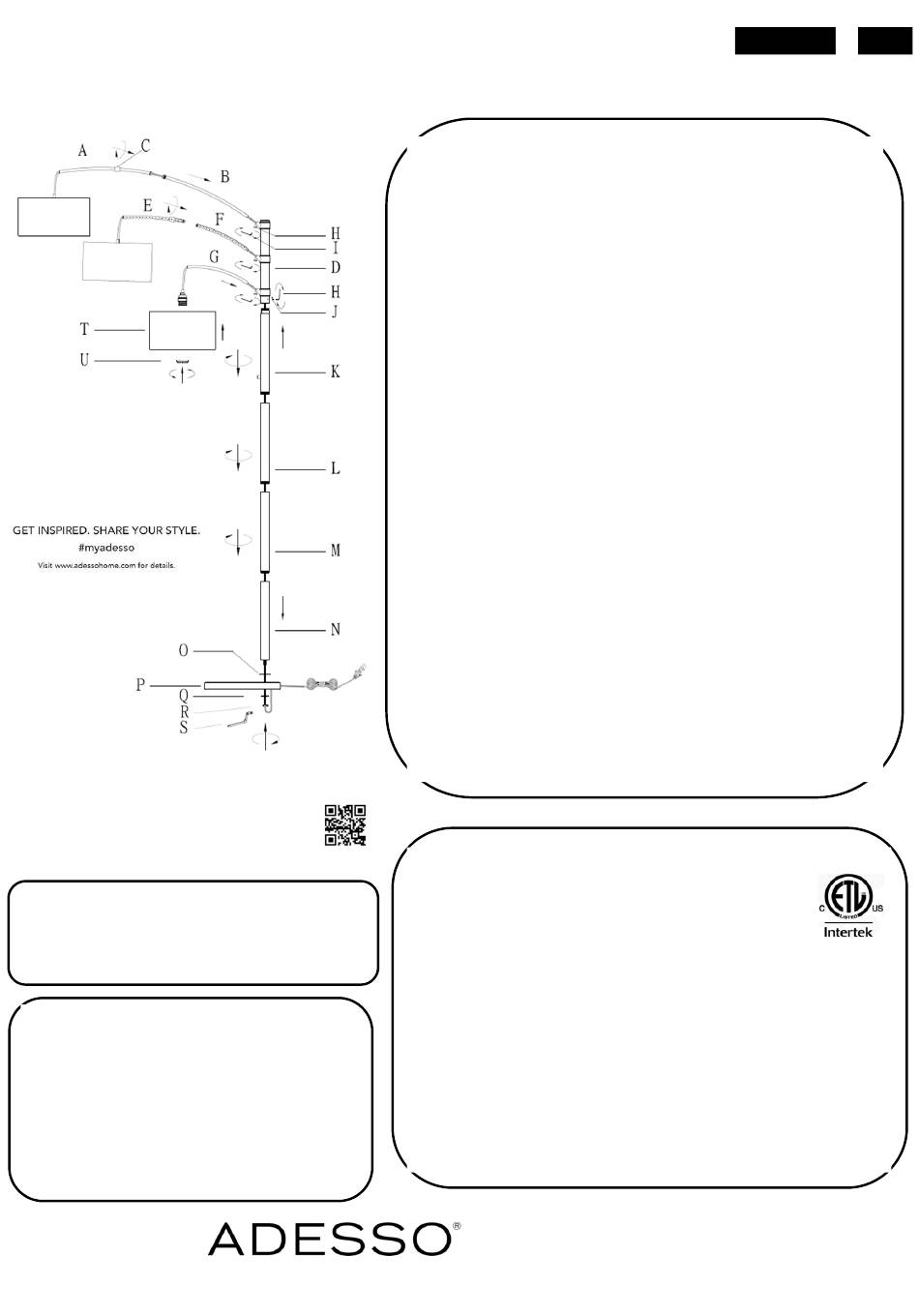

PARTS DIAGRAM
(3) * hex screw (H)
(1) *wrench (I)
A note on packaging:
Due to the fragile nature of this product, we have
chose to use Styrofoam only where it is needed to
protect it and deliver the best quality product to our
customer. We are aiming to reduce the use of plastic
and styrofoam in the packaging of our products
where possible and are investigating more
environmentally friendly alternatives to use. We
hope you enjoy your purchase!
Assembly Instructions (English)
ASSEMBLY INSTRUCTION FOR
Cabo Arc Lamp
Model# 4159-22 / 26
(2)*hex screw (J)
Please begin assembly by laying all parts down on the ground. The
arms are easiest to assemble if you assemble them first, before they are
attached to the lamp body.
1. Assemble arc arms (A) and (B) as well as (E) and (F) together by
placing the top arc tube into the bottom arc tube and securing each
arm by tightening the metal collar joint (C). Simply slide joint (C) over
the threaded tube and screw down to tighten.
If you have trouble here, slightly lift up the upper arm to relieve the
tension on the joint while screwing the parts together.
2. Insert all 3 arc arms onto top base pole (D) and secure the
connection by screwing in hex screw (H) with allen wrench (I).
3. Insert pole (D) to (K), then tighten it using 2pcs* hex screw (J) with
allen wrench (H). Note: The Arc lamp should face forward with the
arms reaching over the base. Now you can make sure the arm curves
are aligned.
5. Screw pole (K), (L), (M) and (N) together.
6. Insert pole (N) to base (P) & washer (Q), then tighten it with nut (R)
using wrench (S). You may need to pull any excess cord gently through
the base.
7. Socket rings(U) comes pre-assembled to the sockets. Before placing
the shade onto the socket, please unscrew this socket ring.
8. Place shade (T) onto socket and tighten it with socket ring (U).
GENERAL PRODUCT INFORMATION:
This product is suitable
for dry locations only.
---------------------------------------------------------------
IMPORTANT SAFETY INSTRUCTIONS:
This portable lamp has a polarized plug as a feature to reduce the risk of
electric shock (one blade is larger than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician.Do not
use with an extension cord unless the plug can be fully inserted.
ALTER THE PLUG .
----------------------------------------------------
BULB TYPE :
Use only with maximum of 3*100 watt incandescent bulbs or
3*26W CFL bulbs. (bulbs not included) Must use all incandescent or all CFL
bulbs.
4159-22 / 26
th nd
353 West 39 Street 2 Floor New York, NY 10018
Tel: (212) 736 4440 Fax: (212) 736 4806
www.adessohome.com
1.0
DO NOT
