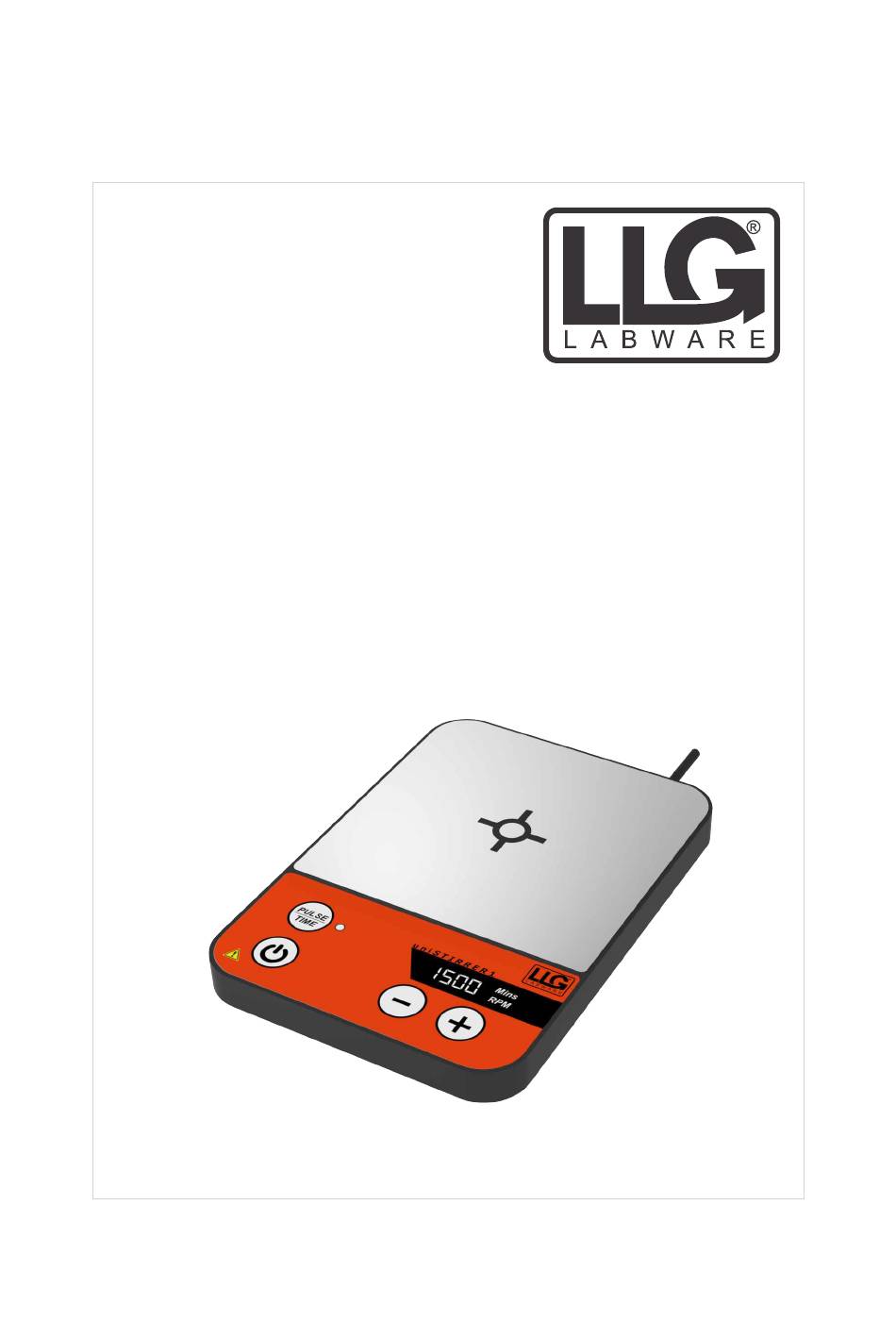

- Page 1 Operation Manual Magnetic stirrer LLG-uniSTIRRER 1...
-
Page 3: Table Of Contents
CONTENTS 1. Product Description............2. Intended Use..............3. Features................4. Accessories..............5. Technical Specifications..........6. Maintenance & Safety Instructions........ 7. Installation & Operation..........8. Warranty Statement............9. Product Disposal............. -
Page 4: Product Description
1. PRODUCT DESCRIPTION Congratulations! You are using slim & compact electromagnetic stirrer designed with modern magnetic coil technology. It provides high IP protection class (IP 65) with no moving parts attached to it. Setting of speed and time with digital display showing real time speed. For better mixing, pulse mode is provided in which stirring bar can rotate clockwise &... -
Page 5: Technical Specifications
5. TECHNICAL SPECIFICATIONS Stirring quantity max. per 800 ml stirring position (H2O) 500 ml at 1500 Stirred quantity (Max) RPM with 25mm (Tested in H2O) stirring bar. 15 ‐ 1500 rpm Speed range 1 to 99 minute & Time range infinite mode Digital Display Recommended bar length 25 mm... -
Page 6: Maintenance & Safety Instructions
6. MAINTENANCE & SAFETY INSTRUCTIONS Read the following safety instruction before using the electromagnetic stirrer for your as well as equipment safety. 1. Do not place any steel or magnetic material on the base plate except the recommended magnetic stirring bar with beaker or flask in between. - Page 7 6. MAINTENANCE & SAFETY INSTRUCTIONS 10.The base plate may warm after continuous usage. Do not touch the base plate immediately after operation. 11. Process pathogenic materials only in closed vessel under a suitable extractor hood. Do not operate the appliance in explosive atmospheres, with hazardous substance or under water. 12.Only use that liquid for mixing that will not react dangerously to the extra energy produced through processing.
-
Page 8: Installation & Operation
7. INSTALLATION & OPERATION The electromagnetic stirrer is provided in the box. Open the box, then remove the packaging and gently place the device on the firm & leveled surface. Take care while unpacking & do not pull the AC power adaptor as it is attached with the device. The user manual should be kept with the device. -
Page 9: Speed Setting
7. INSTALLATION & OPERATION 1. Connect the AC power adaptor to the mains. 2. Fill the beaker or vessel with the medium or liquids to be processed then place the magnetic stirring bar in the beaker, flask or vessel. 3. Place the vessel or beaker on the center of the base plate. 4. -
Page 10: Time Setting
7. INSTALLATION & OPERATION TIME SETTING The default timer is set as infinite more when stirrer starts. In order to set time, Long press the “PULSE/TIME” button, to activate time mode. By default the timer will be infinite and will be seen by “ t ”... -
Page 11: Pulse Mode
7. INSTALLATION & OPERATION PULSE MODE In pulse mode, the stirring direction will be reversed every 30 seconds. In order to select the pulse mode & to reverse the direction of stirring at regular interval, single press pulse button. First set the required speed & then single press the pulse button to start stirring process in pulse mode. -
Page 12: Warranty Statement
8. WARRANTY STATEMENT This products is warranted to be free from defects in material and workmanship for a period of three (3) years from date of purchase. Your product will be duly repaired upon prompt notification in compliance with the following conditions : This warranty is valid only if the product is used for its intended purpose and within the guidelines specified in this instruction manual. - Page 13 8. WARRANTY STATEMENT Some states do not allow limitation on the length of implied warranties or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights. This warranty is given expressly in lieu of all other warranties, expressed or implied. The purchaser agrees that there is no warranty of merchantability or of fitness for any intended purpose and that there are no other remedies or warranties, expressed or implied, which extend beyond the...
-
Page 14: Product Disposal
9. PRODUCT DISPOSAL In case the product is to be disposed of, the relevant legal regulations are to be observed. Information on the disposal of electrical and electronics devices in the European Community. The disposal of electrical devices is regulated within the European Community by national regulations based on EU Directive 2012/19/EU on waste electrical and electronics equipment (WEEE). - Page 16 Lab Logistics Group GmbH (LLG GmbH) Am Hambuch 1 D‐53340 Meckenheim Tel. +49 2225 9211‐0 Fax +49 2225 9211‐11 www.llg‐labware.com info@llg‐labware.com Distributed By:...
