Summary of Contents for LLG uniSTIRRER 3

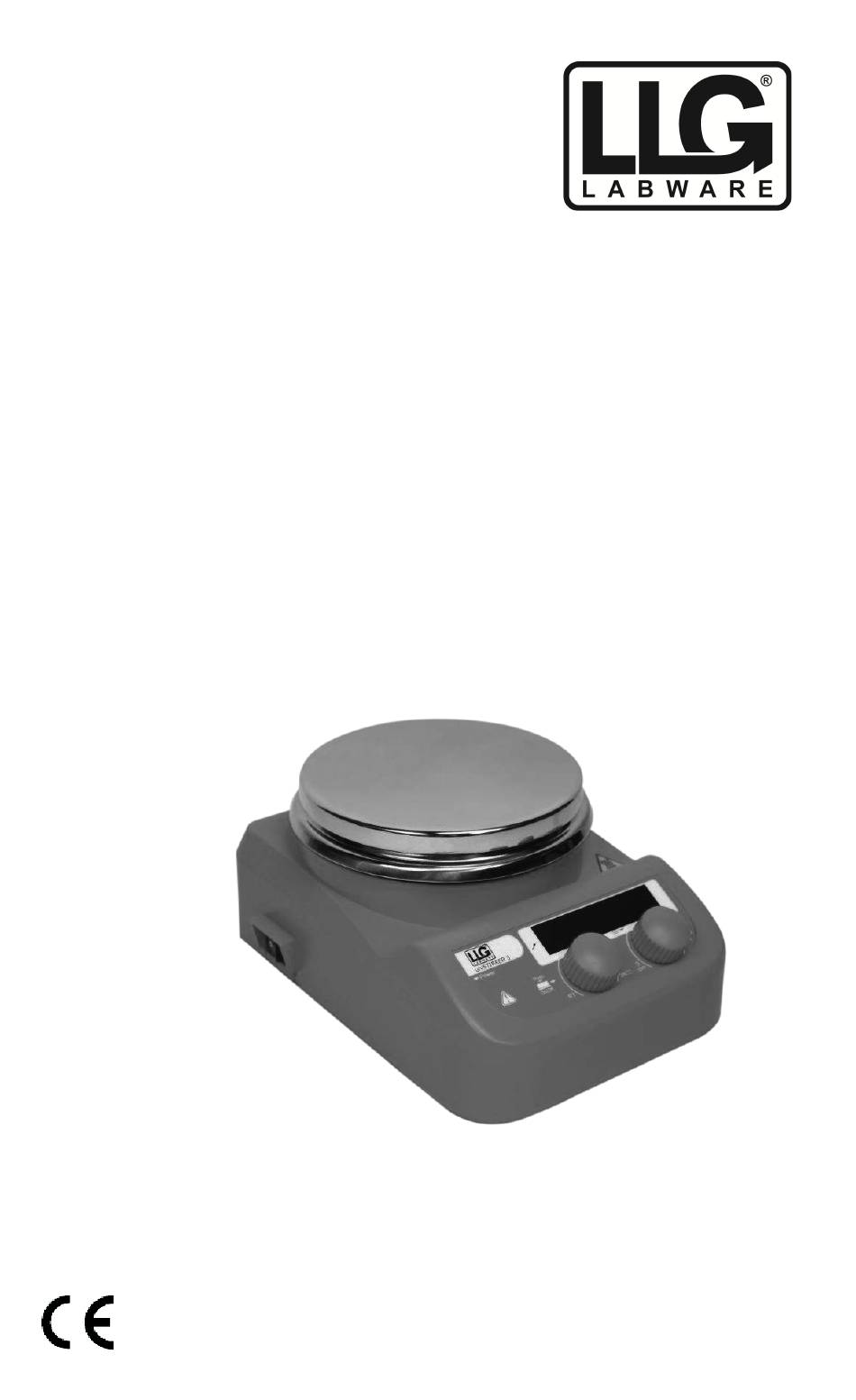

- Page 1 E N G L I S H Operation Manual Magnetic stirrer with heating uniSTIRRER 3...
-
Page 2: Safety Instructions
1. Safety instructions Before operation • Read the Instruction Manual carefully before use. • Ensure that only trained staff use the instrument. The instrument may only be opened by a qualified and trained technician. • Make sure the socket is earthed before use. •... -
Page 3: Product Description
2. Product description The instrument is designed for stirring liquids. The stainless steel surface of the heating plates provides a durable surface with high chemical resistance. Normal use: The instrument is designed for use in professional laboratories, university and school . Do not use it in residential areas. - Page 4 Item Description Sets the temperature parameters. Temperature control knob “Heat” The function “heating” is switched ON or OFF by pushing the temperature control knob. Speed control knob “Stir” Sets the stirring speed. The function “Stirring” is switched ON or OFF by pushing the speed control knob.
-
Page 5: Heating Function
Warning! Do not remove the vessel from the heating plate when the instrument is working. Heating function The device is controlled by digital temperature control technology which has two separate safety circuits. The heating plate is kept at a constant temperature by a digital control circuit. For a precise display and control of temperature inside the medium, please use the external temperature sensor PT 1000. -
Page 6: Residual Heat Warning (Hot)
Residual heat warning (HOT) In order to prevent the risk of burns from the heating plate, the digital plate has a residual heat warning function. When the heating function is switched OFF and the heating plate temperature is still above 50 °C, the LCD will flash “HOT” to warn of the hazard of burns. When the unit is powered off, the LED screen displays the temperature of the heating plate and “HOT”... -
Page 7: Warranty
Warranty This instrument is under warranty to be free from defects in materials and workmanship under nor- mal use and service, for a period of 36 months from the date of invoice. The warranty claim expires if the instrument is opened by untrained or unqualified staff. Our “General terms and conditions”... -
Page 8: Technical Specifications
7. Technical specifications Parameter Data Voltage 200 - 240 V Frequency 50/60 Hz Power 515 W (heating) / 10 W (without heating) Stirring points Max. stirring quantity Max. stirring bar length 50 mm Motor type DC motor Motor power (input) Motor power (output) Speed range 100 –... - Page 9 Lab Logistics Group GmbH (LLG GmbH) Am Hambuch 1 D-53340 Meckenheim Tel. +49 2225 9211-0 Fax +49 2225 9211-11 www.llg.de info@llg.de...
