Auslock A03-TWH User Manual

Smart lock
Hide thumbs

Advertisement

Table of Contents

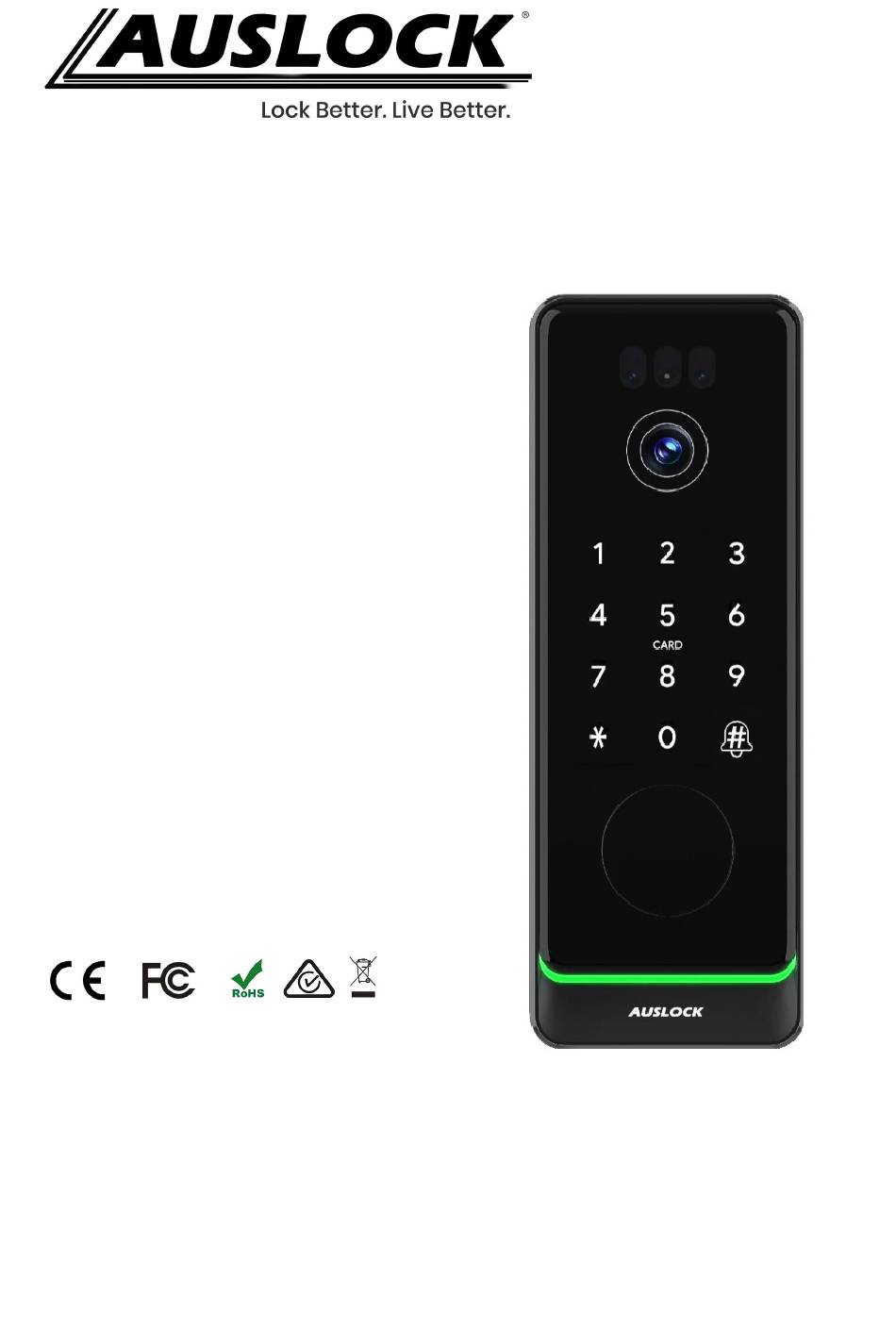

Smart Lock
User Manual
A03-TWH
IMPORTANT NOTES
1. Please keep override keys out side of premises just in case you need to use them.
(lock also has a power bank override on the front panel in case locks are inside)
2. Please replace batteries immediately once receiving any notification via lock or app.
3. Read this manual carefully before installation, and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A03-TWH and is the answer not in the manual?

Questions and answers

Related Manuals for Auslock A03-TWH

Summary of Contents for Auslock A03-TWH

  • Page 1 Smart Lock User Manual A03-TWH IMPORTANT NOTES 1. Please keep override keys out side of premises just in case you need to use them. (lock also has a power bank override on the front panel in case locks are inside) 2.
  • Page 2 1. Introduction 1.1. Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Panel User Manual Mortise Screws:10*5mm Back Panel (For Aluminum Door) Mortise Screws:20*4mm Mortise (For Wooden Door) Card M4*30mm Screw Mechanical Key M4*40mm Screw...
  • Page 3 1.3.Specifications Suitable for Doors Aluminum door A03-TWH Models Applicable Wooden door Working Aluminum alloy Materials 3000mAh lithium battery Voltage Door Thickness Lock Weight 1.6KG 35-60mm to Fit Bluetooth Fingerprint(option) Fingerprint ： 200 Password Unlocking Password ： 150 Card Data Capacity Card ：...

  • Page 4: Installation

    2.Installation 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door. After adding the APP successfully, please set the desired opening direction first...

  • Page 5: Installation Diagram

    Installation Diagram 2.2. Step 1 Install Mortise Step 2 Install Screw Casing and Waterproof Rubber Plate Step 3 Install front Panel Step 4 Install Back Panel and link wire Step 5 Install the batteries Step 6 installation complete...

  • Page 6: Operation

    3.2. Connect lock to the phone 1) Please scan the QR code to download the app. 2) You can also search for Auslock in the APP store or Google Play to download. 3) Register a new account (phone number or email) or login with an existing account.
  • Page 7 3.4.Connect WiFi Click on the " “ as shown in the figure you can set up the WIFI setting → Select " WIFI " → Click on t”Configure network”, Select the 2.4Gz WiFi what you need. （ If you need to change your WiFi, this step will help you.） ①...
  • Page 8 3.6.3.Send e-Key Click on the " " as shown in figure, you can send the eKey to other users of AUSLOCK to authorize the unlock(the receiver must be download the APP and set up an account)→ Select e- key format (Timed, permanent, One-time, Recurring) → Enter recipient's account of Auslock,set the name and effective time of the eKey, Can choose to allow remote unlocking,camera permission or disallowing, authorized administrator or not authorized, as shown in figure →Send→The...
  • Page 9 3.6.4.Add card Supports opening doors through various RF cards. Before an RF card is used to open the door, it needs to be added first. The adding process needs to be performed by the app beside the lock. The validity period of the RF can be set, it can be permanent, or it can be limited in time.
  • Page 10 3.6.6.Add face Adding a face at a distance of 0.6-0.8 meter from the lock works best ， faces can't be added beyond 1.2 meters. When the red light on the front panel flashes, point your face directly at the camera, and then turn your face according to the keypad number flashing: "6"...
  • Page 11 Press "#" lock door bell,the “ receive remote unlock requests within aminute.Click” to enter the video intercom interface so you can talk to visitors, or click remote unlock. ③ ② ① 2. Turn on the Notification push on the APP first. Press "#" on the lock ,the APP can receive remote unlock requests within a minute.Click”...
  • Page 12 3.6.8.Camera 1.Requirements of use：The lock must be connected to WiFi ,turn off the“Power saving mode”and turn on”remote unlock” . 2.Operation：click “camera”,The video intercom screen is displayed. a)Click” “ for video intercom,You can also mute by clicking” ”. b)Click” ”to Take a photo,Click” ”to record,Photos and videos are saved to the phone album.
  • Page 13 3.7.2.Unlock records Click " "you can query your unlock record as shown in figure. （Refer to picture ④） ① ① ① ② ④ 3.7.3.Setting 1. Auto Lock：Turning on auto lock, the smart lock will automatically lock itself after a set time of unlocking.(which time can be adjusted on app) 2.
  • Page 14 5 minus, Other ways to can open How long is it locked? the door 9）How can i lock my Auslock physically if auto you can lock it by press and holding the key on the lock is off or if the lock is in passage mode?

  • Page 15: Warranty Form

    Product Model ： Note: ① Please fill and email this card back to au@auslock.net to activate your warranty in 30 days. (Not doing this may result a voided warranty claim) ② We provide you with a one-year warranty from the date of purchase.
