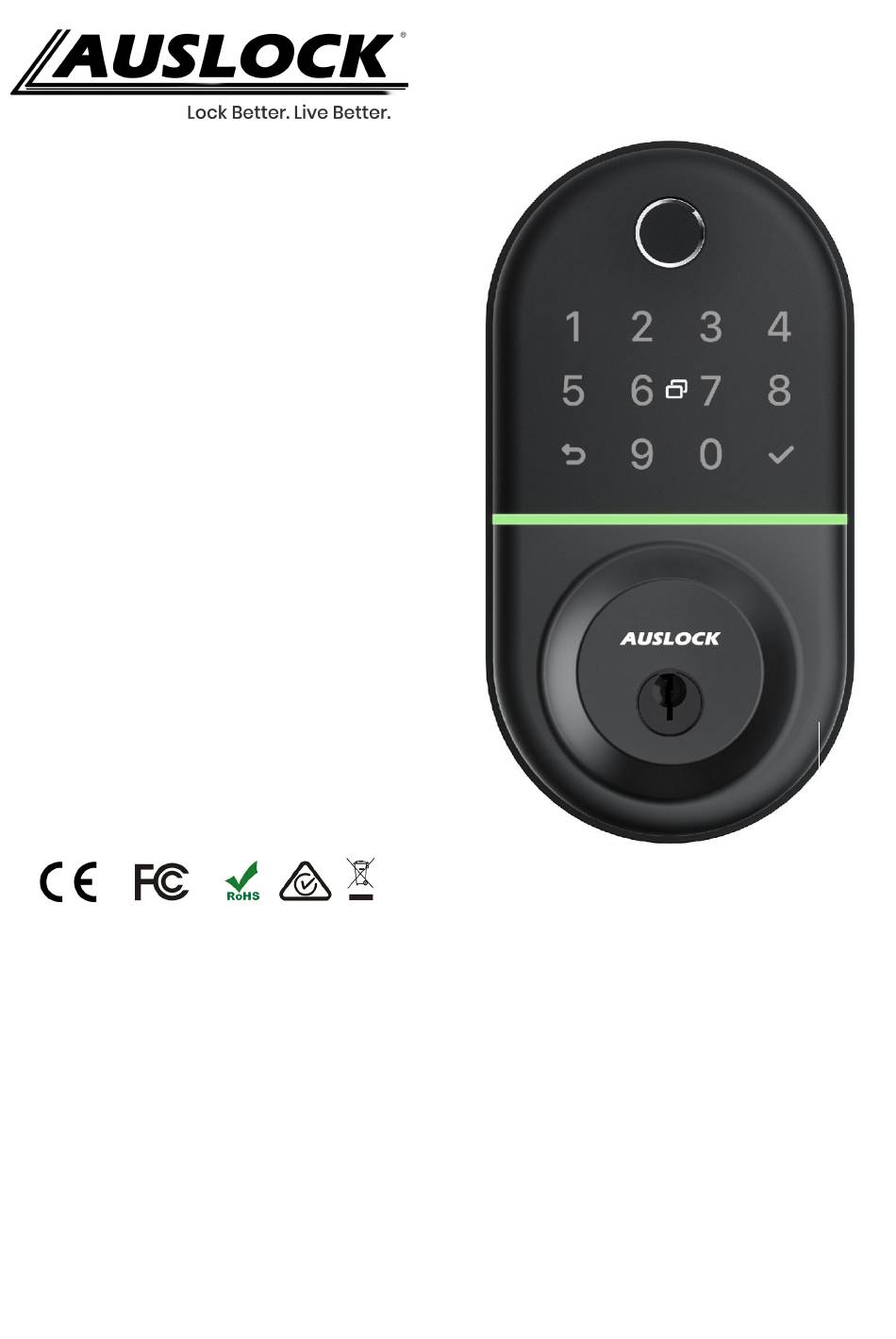

Auslock H7-TWH User Manual

Smart lock
Hide thumbs

Advertisement

Table of Contents

Smart Lock
User Manual
H7-TWH
IMPORTANT NOTES
Install and test the lock with the door open to avoid being locked out.
DO NOT install the batteries before installing the lock!
Follow the instructions in sequential order!
Please must use Alkaline Batter
and don't use Lithium Battery or Rechargeable
Battery.
Reading this manual carefully before installation, and keep it for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H7-TWH and is the answer not in the manual?

Questions and answers

Related Manuals for Auslock H7-TWH

Summary of Contents for Auslock H7-TWH

  • Page 1 Smart Lock User Manual H7-TWH IMPORTANT NOTES Install and test the lock with the door open to avoid being locked out. DO NOT install the batteries before installing the lock! Follow the instructions in sequential order! Please must use Alkaline Batter and don’t use Lithium Battery or Rechargeable...

  • Page 2: Packing List

    1. Introduction 1.1.Lock structure AUSLOCK 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name PM2*3 Round-headed screw Front Panel Mortise Screws:M5*10mm Back Panel (For Aluminum Door) Mortise Screws:M4*20mm Mortise (For Wooden Door)

  • Page 3: Specifications

    1.3.Specifications Aluminum door Suitable for T13B-TB Doors Applicable Wooden door Models Materials Aluminum alloy 6V/4x AA Batteries Working Voltage 1.3KG 33-58mm Lock Weight Door Thickness to Fit Bluetooth Fingerprint(option) Fingerprint ： 200 Unlocking Password Password ： 150 Data Capacity Card Card ：...

  • Page 4: Installation Diagram

    2. Installation Diagram Step 1 Install Bolt 1. Install the bolt into the door with screws Keep the deadbolt in retracted position Step 2 Install Exterior Assembly 1.Install the sliding screw stubs to the front panel. 2.Install the waterproof rubber plate to exterior assembly. 3.Keep the cylinder rod horizontal when installing.
  • Page 5 Step 3 Install Interior Assembly 1.Install the waterproof rubber plate to fixing plate. 2.Fix the fixing plate and exterior assembly with screws. 3.Connect the wire then Install the interior assembly on the fixing plate with screws. 4.Install the battery and battery cover to complete the installation.
  • Page 6 3.Adjust Opening Direction After adding the APP successfully, please set the desired opening direction first. 4.Operation 4.1.Registration The software (iOS version) can be downloaded from the app store, and the Android version can be downloaded from the application store of Google play.
  • Page 7 4.3.Add locks AUSLOCK supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode.

  • Page 8: Setting Passcode

    4.4.User Management 4.4.1.Bluetooth management Make sure there is no problem with Bluetooth connection. After connecting the phone to the door lock as above, Click " "to unlock. (Please be within 5 meters from the door lock with your Smart device) 4.4.2.Setting Passcode Passcodes are also a way to unlock.
  • Page 9 AUSLOCK to authorize the unlock(the receiver must download the APP and set up an account)→ Select e-key format (Timed, permanent, One-time, Recurring) → Enter recipient's account of AUSLOCK, set the name and effective time of the eKey, Can choose to allow remote unlocking or authorized administrator, as shown in figure Send →The recipient's account has Bluetooth unlock permission.

  • Page 10: Add Fingerprint

    4.4.5.Add fingerprint The premise that a fingerprint can be used to open a door is that it needs to be added first. The adding process needs to be performed by the APP beside the lock. The fingerprint expiration data can be set, it can be permanent, timed or recurring. After setting ,you can modify its validity period.

  • Page 11: Add Gateway

    4.5. Gateway management(Optional) The AUSLOCK is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record.
  • Page 12 5.FAQ 1) How to read operation In the Records of the main interface. records? 2) Why can’t I unlock it after You need to perform an unlock verification in any open the passage mode ? method, then the passage mode will take effect. 3) What is the purpose of You can set how long to lock after unlocking Auto Lock ?

  • Page 13: Warranty Form

    Product Model ： Note: ① Please fill and email this card back to au@auslock.net to activate your warranty in 30 days. (Not doing this may result in a voided warranty claim) ② We provide you with a one-year warranty from the date of purchase.
