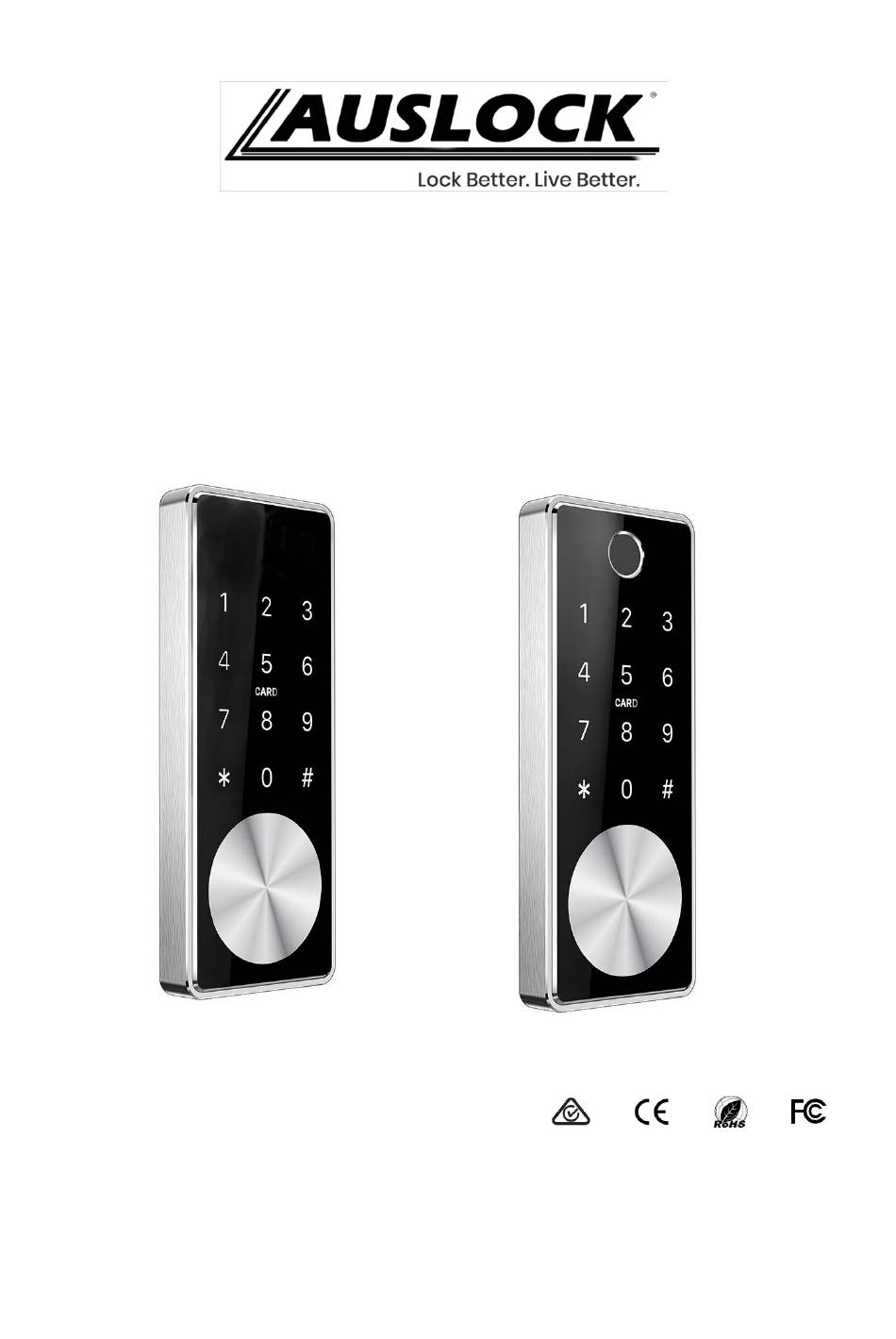

- Page 1 User Manual Smart Dead Lock Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3.Reading this manual carefully before installation, and keep it for future reference.
-
Page 2: Packing List
1. Introduction 1.1. Lock structure 1.2. Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Panel Screw Stubs:M4*30mm Back Panel Screw Stubs:M4*40mm Mortise Screws:M4*25mm Mortise (For Wooden Door) Mortise Screws:M5*10mm Card (For Aluminum Door) M4*10mm Screws Mechanical Key... -
Page 3: Specifications
1.3. Specifications Aluminum door Suitable for Doors Applicable Models Wooden door Materials Handle：Zinc Alloy 6V/4x AA Batteries Working Voltage 2.0KG 35-60mm Lock Weight Door Thickness to Fit Bluetooth Fingerprint：200 Fingerprint(option) Password：150 Unlocking Way Data Capacity Password Card Card：200 Mechanical key Silver -10℃-55℃... -
Page 4: Reset Button
1.4. Initialization Long press the reset button on the back of the front panel for about 3s, input “000#”, the initialization is successful when the buzzer short beep twice. Reset Button Tip: How to open the key cover? Use a suction cup to suck on the key cover for easier opening 2.Installation 2.1Confirm opening direction... -
Page 5: Installation Diagram
Set The Left Open Set The Right Open Spindle always keep horizontal Deadbolt always keep pull in What is left open? This we called "left open"(show image) Change to "L" or “R” position in the PCB of back panel Deadbolt knob Attention：... -
Page 6: Operation
Step3 Install Front Panel Step4 Fixed Front Panel and Water Rubber Plate Spindle always keep horizontal The deadbolt always keep PULL IN Step5 Connecting Front and Back Panels Step6 Fixed Back Panel Step7 Install Batteries Step8 Cover the battery box 3.Operation... - Page 7 3.3. Add locks Auslock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode.
-
Page 8: User Management
3.4.3. Send e-Key Click on the " " as shown in figure, you can send the eKey to other users of Auslock to authorize the unlock(the receiver must be download the APP and set up an account)→ Select e-key format (Timed, permanent, One-time, Recurring) → Enter recipient's account of Auslock ,set the name and effective time of the eKey, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure →Send→The recipient's account has... -
Page 9: Add Fingerprint
3.4.4. Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, i t needs to be added first. The adding process needs to be performed by the app beside the lock. The validity period of the IC can be set, it can be permanent, or it can be limited in time. -
Page 10: Add Gateway
3.5. Gateway management(Optional) The Auslock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. Meanwhile, it can remotely delete and modify the password. - Page 11 4.FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can’t I unlock it after open the passage You need to perform an unlock verification in any mode method, than the passage mode will take effect. 3) What is the purpose of Auto Lock You can set how long to lock after unlocking 4）After installation, touch sensing keyboard,...
- Page 12 Guarantee (To Validate warranty, below details must be filled by customer and emailed back to Auslock within 30 days or else Auslock may not offer full services (au@auslock.net) ： Customer Full Name ： Customer Contact No. Place of Purchase (store) ：...
