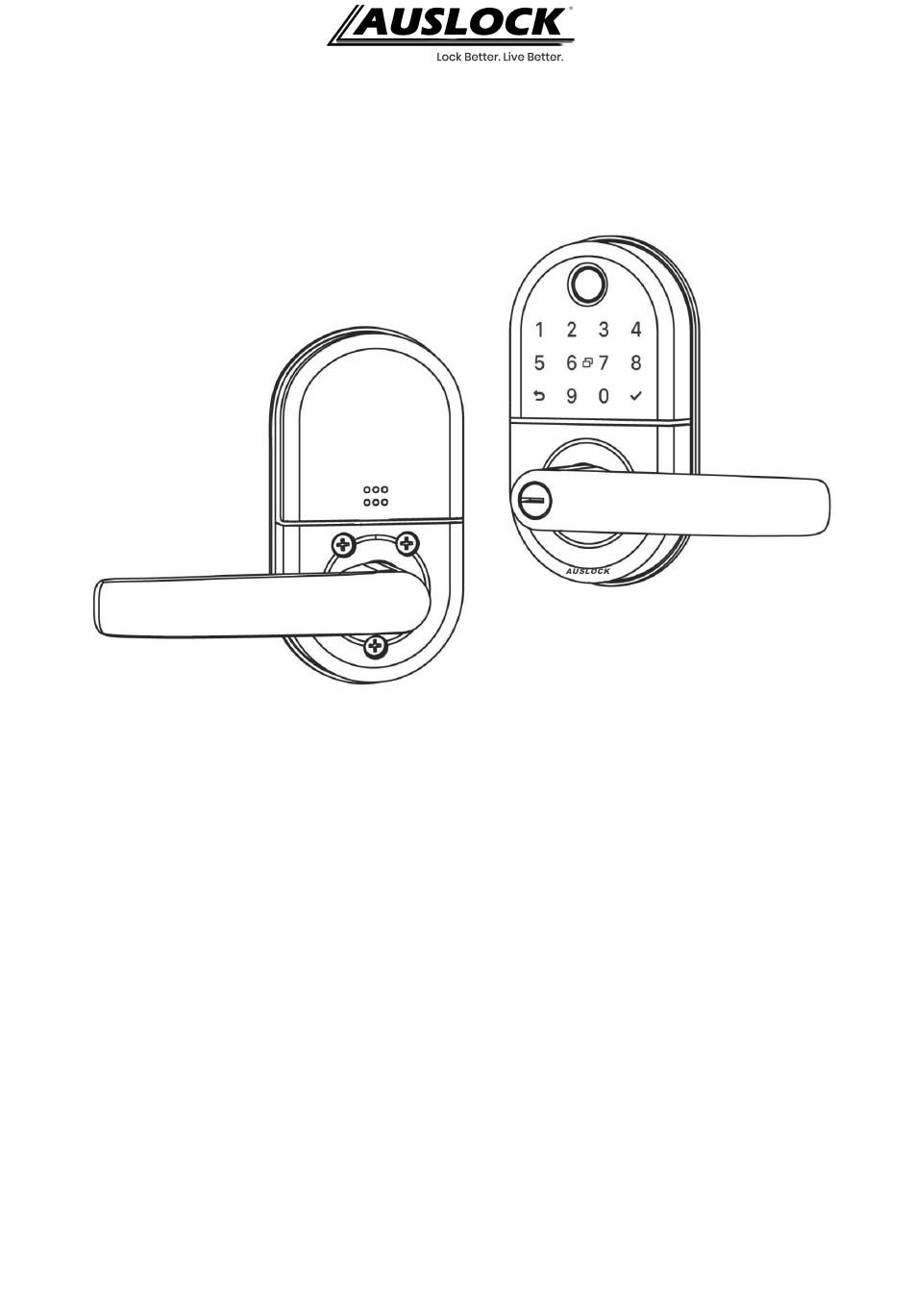

Smart Lock User Manual
IMPORTANT NOTES
1.Install and test the lock with the door open to avoid being locked out.
2.DO NOT install the batteries before installing the lock!
3.Follow the instructions in sequential order!
4.Please must use Alkaline Batteries and don't use Lithium Battery or
Rechargeable Battery.
5.Please replace batteries immediately once receiving any notification via lock
or app.
6.Reading this manual carefully before installation, and keep it for future
reference.
Model:H13-TB
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the H13-TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Auslock H13-TB

Summary of Contents for Auslock H13-TB

  • Page 1 Smart Lock User Manual Model:H13-TB IMPORTANT NOTES 1.Install and test the lock with the door open to avoid being locked out. 2.DO NOT install the batteries before installing the lock! 3.Follow the instructions in sequential order! 4.Please must use Alkaline Batteries and don’t use Lithium Battery or Rechargeable Battery.

  • Page 2: Product Overview

    1. Product Overview Fingerprint Sensor Battery Compartment Card Detection Area AUSLOCK Keyhole Type C Port Fingerprint Sensor Keypad Used to verify your finger and unlock Used to enter the password and unlock from outside. from outside. Card Detection Area Battery Compartment Swipe RFID card at this area.

  • Page 3: Packing List

    2. Packing List AUSLOCK Exterior Assembly x1 Interior Assembly x1 Latch x1 Rubber Plate x2 Strike & Strike Box x1 Rf Card x3 Mechanical Key x2 User Manual x1 Screw B x4 L Shape Allen Wrench x1 Screw A x4...

  • Page 4: Specifications

    3.Introduction 3.1.Lock structure AUSLOCK 3.2.Specifications Suitable for Doors Aluminum door H13-TB Models Applicable Wooden door Working Aluminum alloy Materials 6V/4x AA Batteries Voltage Door Thickness Lock Weight 35-65mm to Fit Bluetooth Fingerprint(option) Fingerprint ： 200 Unlocking Password Data Capacity Password ： 150 Card Card ：...

  • Page 5: Installation

    4.Installation 4.1Adjust Latch Backset Length Measure your door backset, then adjust to the corresponding latch length. 4.2Adjust the Handles Direction Notice: Adjust the handle according to the direction you open the door. For Exterior Assembly: 1.Loosen the screw with 2.Adjust the door handle 3.Tighten the screws a 3mm Allen wrench direction...

  • Page 6: Installation Diagram

    4.3. Installation Diagram Step 1 Install Latch Install the latch into door with Screw B and fix it.（Refer to step ①） Step 2 Install Exterior Assembly 1.Install the waterproof rubber plate to exterior assembly.（Refer to step ②） 2.Install square shaft into spindle hub. （...

  • Page 7: Step 3 Install Interior Assembly

    Step 3 Install Interior Assembly 1.Install the waterproof rubber plate.（Refer to step ⑥） 2. Connect the wire.（Refer to step 7） 3.Secure exterior assembly with screw C.（Refer to step ⑧） Step 4 Install batteries （Refer to step ⑨） 1. Insert 4 AA alkaline batteries. 2.

  • Page 8: System Initialization

    4) Touch the lock screen to light, click "+ Add Lock” 5) The lock nearby will appear on the phone screen, Click "+" 6) Re-name the lock 7) The lock added successfully AUSLOCK users can register the account by mobile phone and Email which currently supports countries regions the world.

  • Page 9: Setting Passcode

    6.3.Add locks AUSLOCK supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone.
  • Page 10 AUSLOCK to authorize the unlock(the receiver must download the APP and set up an account)→ Select e-key format (Timed, permanent, One-time, Recurring) → Enter recipient's account of AUSLOCK, set the name and effective time of the eKey, Can choose to allow remote unlocking or authorized administrator, as shown in figure Send →The recipient's account has Bluetooth unlock permission.

  • Page 11: Add Fingerprint

    4.4.5.Add fingerprint The premise that a fingerprint can be used to open a door is that it needs to be added first. The adding process needs to be performed by the APP beside the lock. The fingerprint expiration data can be set, it can be permanent, timed or recurring. After setting ,you can modify its validity period.

  • Page 12: Add Gateway

    6.5. Gateway management (Optional) The AUSLOCK is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record.

  • Page 13: Replace Batteries

    Tap your card on the Insert the key into the lock cylinder Use your smartphone to keypad of the lock to hole and rotate it 90 degrees unlock. Please refer to the unlock. counter-clockwise. guide in Auslock App AUSLOCK AUSLOCK AUSLOCK...
  • Page 14 5 minus, Other ways to can open How long is it locked? the door 9）How can i lock my Auslock physically if auto you can lock it by press and holding the key on the lock is off or if the lock is in passage mode?

  • Page 15: Warranty Form

    Product Model ： Note: ① Please fill and email this card back to au@auslock.net to activate your warranty in 30 days. (Not doing this may result in a voided warranty claim) ② We provide you with a one-year warranty from the date of purchase.
