MUCAR CDL20 Quick Start Manual

01/

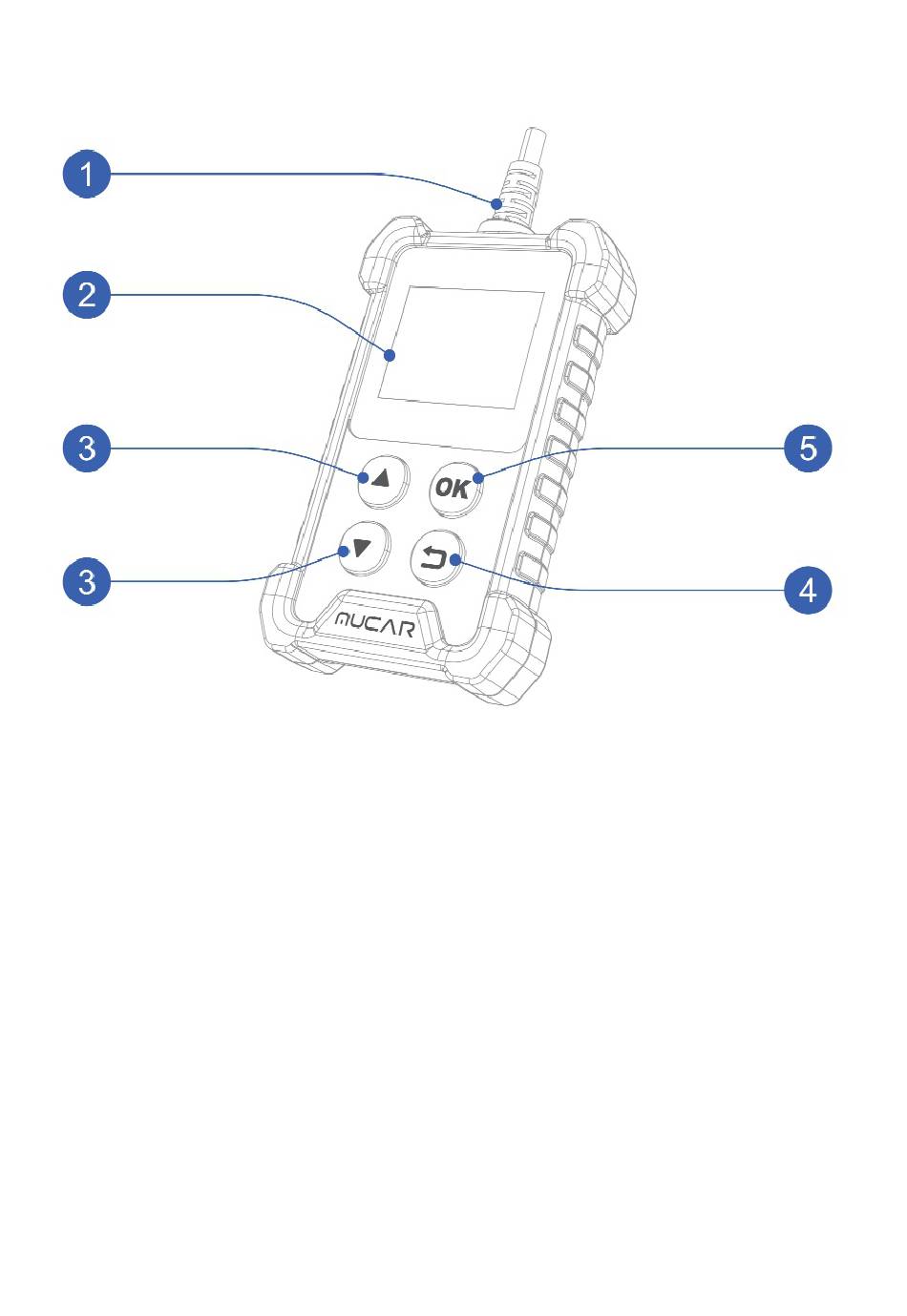

Product Descriptions
① Diagnostic Cable: Standard OBDII TXGA Diagnostic
② LCD Display: 1.77 inch display (128*160)
③ Up, down keys: used to select interactive functions
④ Return key: Return to upper function
⑤ OK Return: Confirm button
Technical Specifications
Display: 1.7 inch display
Working Environment: 0~50℃ (32~122℉)
Storage Environment: -20~60℃ (-4~140℉)
Power Supply: 9-18V vehicle power
Supported Protocols: ISO9141, KWP2000 (ISO 14230), J1850PWM,J1850VPM and CAN OBD II
protocol
02/
How To Use
2.1 Data Link Connector (DLC) Location
The DLC (Data Link Connector or Diagnostic Link Connector) is typically a 16pin connector
where diagnostic code readers interface with the vehicle's onboard
computer. The DLC is usually located 12 inches from the center of the instrument panel
(dash), under or around the driver's side for most vehicles. If Data Link Connector is not
located under dashboard, a label should be there telling location. For some Asian and
European vehicles, the DLC is located behind the ashtray and the ashtray must be removed
