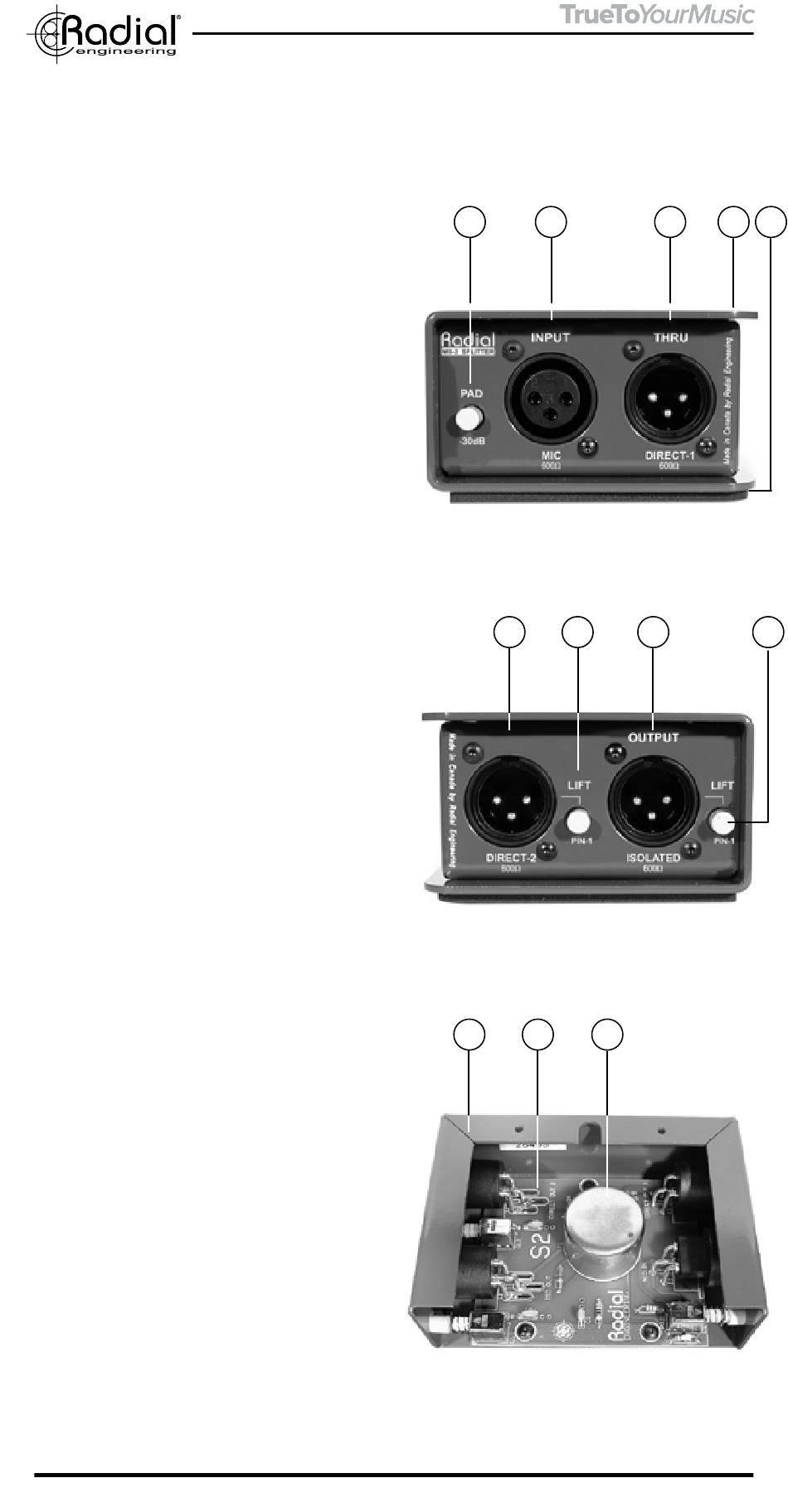

FEATURES
1. -30dB PAD: Allows balanced +4dB
line-level sources to connect to the
ProMS2 input.
2. Mic input: Used to connect a low
impedance, balanced, microphone or
direct box.
3. Direct-1 thru: A parallel direct
output used to bridge the mic or D.I.
to the primary mixing console.
4. Bookend design: 14 gauge steel
outer shell creates protective zone
around connectors and switches.
5. Full-bottom no-slip pad: This
provides electrical isolation and
plenty of 'stay-put' friction to keep the
ProMS2 in one place.
6. Direct-2 output: Equipped with
ground lift. Used to bridge the signal
to an additional audio device.
7. Lift (Direct-2): Disconnects
pin-1 (ground) on the direct-2 XLR
output to help reduce hum and buzz
caused by ground loops.
8. Isolated output: Transformer-
isolated to eliminate ground loop hum
and buzz. Used to bridge the balanced
mic signal to a second audio system.
9. Lift (Isolated output): Disconnects
pin-1 (ground) on the isolated XLR
output to help further reduce hum and
buzz caused by ground loops.
1 0 . S t e e l I - b e a m : E n c l o s u r e
eliminates stress that could torque
the PC board.
11. Military-grade PCB: Double-sided
PCB with plated through-holes is
bolted to welded steel standoffs.
12. Eclipse: High performance mic
bridging transformer offers outstanding
a u d i o p e r f o r m a n c e . F e a t u r e s
mu-metal shield for protection against
stray electromagnetic fields.
Radial Engineering Ltd.
1 2
6 7
10 11 12
ProMS2 Microphone Splitter
3 4 5
8 9
