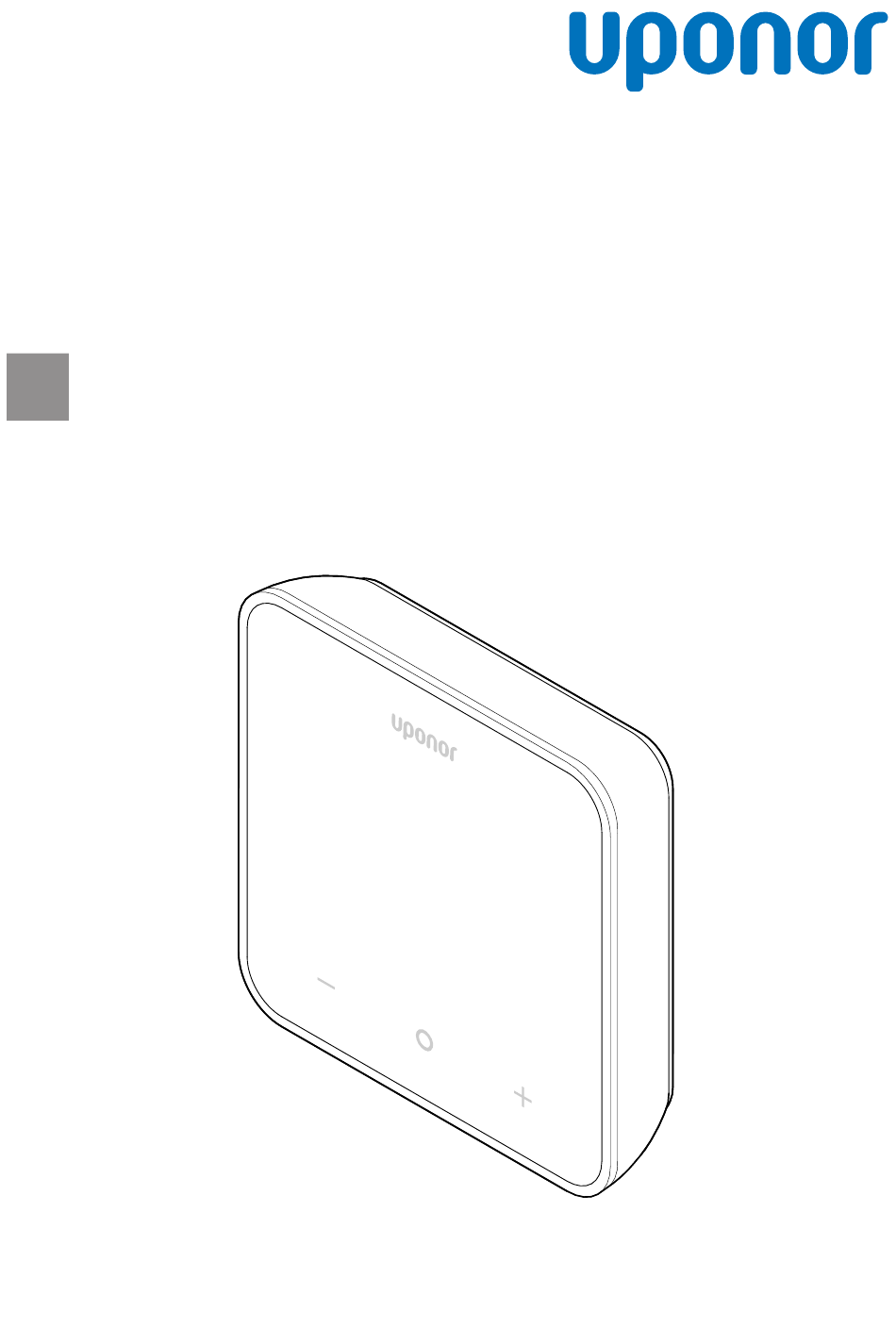

- Page 1 Uponor Smatrix Wave thermostat D+RH T-267 Operation manual CD0000789...
-
Page 2: Table Of Contents
General................. 12 Troubleshooting after installation.......... 12 Flash-illuminated alarm symbols........... 12 Digital thermostat alarms/problems........12 Speak to the installer............14 Installer instructions.............. 14 Technical data..............15 Technical specifications............15 Performance curves.............. 15 Dimensions................15 Uponor Smatrix Wave thermostat D+RH T-267 Operation manual... -
Page 3: Copyright And Disclaimer
For any questions or queries, please visit the local Uponor website or speak to your Uponor representative. “Uponor” is a registered trademark of Uponor Corporation. -
Page 4: Preface
Do not expose the Uponor components to flammable vapours or gases. • Do not use water to clean electrical Uponor products/ components. Uponor is not liable for damage caused by ignoring the instructions in this document or the applicable building code. Uponor Smatrix Wave thermostat D+RH T-267 Operation manual... -
Page 5: System Description
Uponor website: www.uponor.com. CD0000776 The Uponor Smatrix Wave thermostat D+RH T-267 comes with a big LED display and capacitive keys. The capacitive keys and the front glass make cleaning of the front of the thermostat easy. -
Page 6: Operation
If the registration process is not completed successfully within the 20- seconds timeout period, the thermostat will display the "not paired" Uponor Smatrix Wave thermostat D+RH T-267 Operation manual... -
Page 7: Main Screen
RO). To see the readings from the other • Active communication sensors, press the OK button on the main screen. (flashes to indicate active communication during run mode) Settings menu Calibration Demand Heating/cooling mode Uponor Smatrix Wave thermostat D+RH T-267 Operation manual... -
Page 8: Digital Thermostat Functions
The thermostat has four different control modes. These modes can be set in the settings menu. Display Display text Thermostat function Room temperature sensor Room temperature sensor and floor temperature sensor Remote sensor Room temperature sensor and outdoor temperature sensor Uponor Smatrix Wave thermostat D+RH T-267 Operation manual... - Page 9 Setting range: Heating/Cooling While in a submenu, if no button on the thermostat is This menu is not visible if the thermostat is registered to a Uponor pushed for approximately 8 seconds, the current values Smatrix Wave Pulse room controller.
-
Page 10: Replace Batteries
This menu is only visible if control mode RFT is activated in settings Not integrated menu 04. For systems with a communication module, this menu only shows the set value. Changes can be made in the Uponor Smatrix Integrated (must be registered with Pulse app. -
Page 11: Factory Reset
Hold all three keys ― and O (OK) and + for 10 seconds The assignment to the controller is removed, and all parameter values are restored to their default settings The thermostat initiates a restart. Uponor Smatrix Wave thermostat D+RH T-267 Operation manual... -
Page 12: Troubleshooting
This section describes general problems and alarms that can occur with the Uponor Smatrix system and gives solutions for them. Problems are frequently caused by loops that are installed incorrectly or by thermostats that are in the incorrect room or that are registered Battery icon is displayed in the alarm incorrectly. - Page 13 Figure 6. Example from a cooling system operating in comfort mode without demand, in control mode RT Note Relative humidity control is activated in the Uponor Smatrix Pulse app (requires communication module). CD0000782 Figure 4. Example from a cooling system operating in comfort •...
-
Page 14: Speak To The Installer
If the loop becomes warm, the cause can be the room control system. A supply system malfunction can be identified by no warm water in the manifold. Do a check of the boiler and circulation pump. Uponor Smatrix Wave thermostat D+RH T-267 Operation manual... -
Page 15: Technical Data
ZD0000120 https://www.uponor.com/doc/1071660 1) Refer to the related Uponor product for the specified certification and compliance marks. Additional product information and instructions are delivered with the Uponor product. They are available at the website www.uponor.com/... - Page 16 Uponor GmbH Industriestraße 56, D-97437 Hassfurt, Germany Uponor reserves the right to change the product portfolio and the 1145578 v1_01_2025_EN related documentation without prior notification, in line with its policy of www.uponor.com Production: Uponor / SKA continuous improvement and development.
