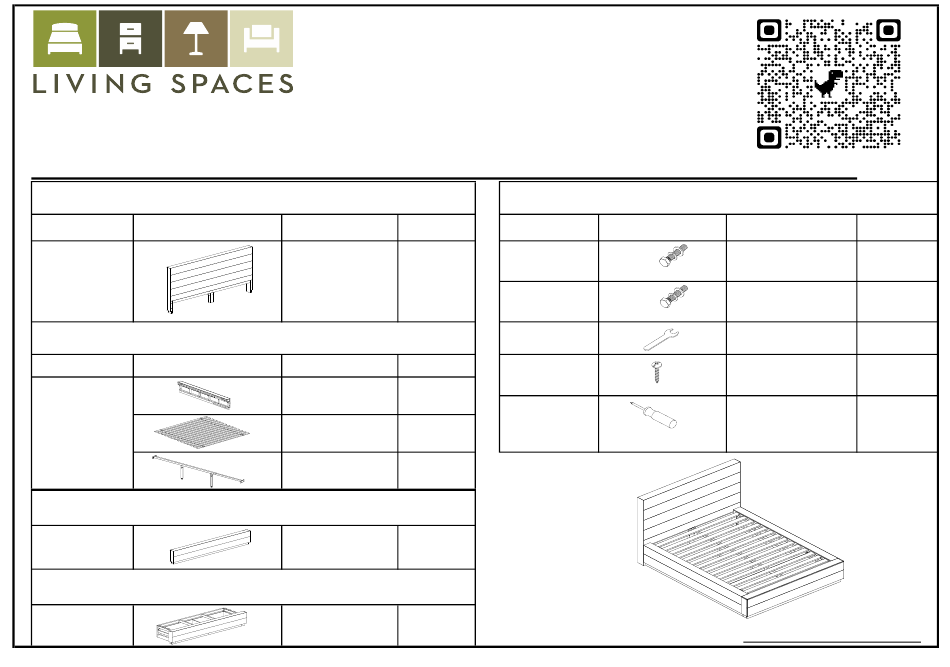

ASSEMBLY INSTRUCTIONS
Satori Queen Bed
NON-STORAGE BED - ITEM No.: 54003193H/ 54003193R/ 54003193F
or
STORAGE BED - ITEM No.: 54003193H/ 54003193R/ 54003193SF
(BOX 1)
Box of Headboard
COMPONENT#
54003193H
(BOX 2)
Box of Siderails, Metal Centre Rail, Slat Set
COMPONENT#
54003193R
(BOX 3) NON-STORAGE
Box of Regular Footboard
54003193F
(BOX 3) STORAGE
Box of Storage Footboard
54003193SF
DESCRIPTION
QUANTITY
Headboard
1
DESCRIPTION
QUANTITY
Siderail
2
Slat Set
14
Metal Centre Rail
1
Footboard
1
Footboard w/Storage
1
(BOX 3)
Siderails, Metal Centre Rail, Slat Set Hardware List
COMPONENT#
Z1
Z3
Z4
Z2
Z3
Z4
Z5
Z6
Z7
NOT PROVIDED
DESCRIPTION
QUANTITY
Bolt: Ø 10 x 70mm
Sping Washer: Ø 10 x 15 x 2.6mm
8
Washer: Ø 10 x 23 x 2mm
Bolt: Ø 10 x 30mm
Sping Washer: Ø 10 x 15 x 2.6mm
4
Washer: Ø 10 x 23 x 2mm
Open Wrench
1
Ø17
Screw: Ø4mm x 30mm
4
Screwdriver
1
COMPLETED BED ASSEMBLY
Page 1 of 5
